SDO HMI 2014-07-11 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.05 | 211.00 | 22.67 | 147.64 | -20.08 | 148.23 | -38.49 | 123.97 | 0.7063 | 304.0 | 21.1 | |
|
previous
or next observation for the same group /

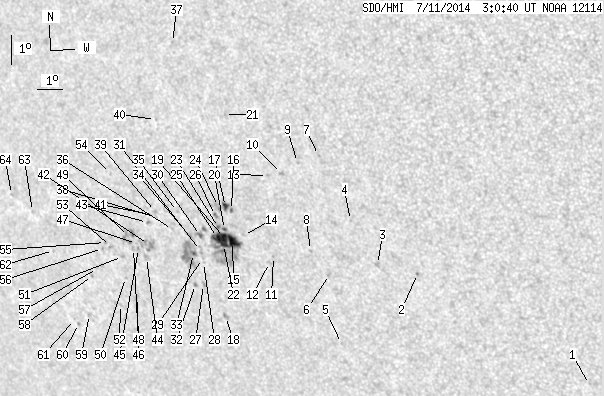

back to the solar disc SDO HMI 2014-07-11 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.39 | -24.35 | 162.34 | -24.38 | 141.23 | 0.6028 | -771.0 | -602.1 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -20.76 | 156.72 | -30.01 | 131.18 | 0.6236 | 887.0 | 768.4 | |
| 0.00 | 2.63 | 0.00 | 1.69 | -20.51 | 155.25 | -31.47 | 129.59 | 0.6367 | 690.0 | 562.7 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -19.07 | 154.55 | -32.18 | 127.12 | 0.6334 | 686.0 | 560.1 | |
| 0.00 | 0.73 | 0.00 | 0.49 | -23.26 | 153.14 | -33.59 | 131.29 | 0.6787 | 430.0 | 394.0 | |
| 0.00 | 1.91 | 0.00 | 1.25 | -20.92 | 153.30 | -33.42 | 128.52 | 0.6600 | 254.0 | 306.1 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -16.97 | 153.77 | -32.95 | 123.64 | 0.6272 | 793.0 | 659.8 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -20.14 | 152.75 | -33.97 | 127.10 | 0.6601 | 640.0 | 468.7 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -17.23 | 152.91 | -33.81 | 123.36 | 0.6386 | 662.0 | 443.1 | |
| 0.00 | 1.91 | 0.00 | 1.24 | -17.62 | 152.21 | -34.51 | 123.38 | 0.6490 | 699.0 | 532.7 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -20.40 | 151.22 | -35.51 | 126.31 | 0.6778 | 652.0 | 637.0 | |
| 0.00 | 1.91 | 0.00 | 1.29 | -20.61 | 151.00 | -35.72 | 126.42 | 0.6815 | 531.0 | 489.1 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -17.71 | 151.64 | -35.08 | 123.10 | 0.6558 | 539.0 | 351.2 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -19.74 | 150.19 | -36.54 | 124.76 | 0.6843 | 514.0 | 394.9 | |
| 11.90 | 75.38 | 8.13 | 51.84 | -19.96 | 149.68 | -37.04 | 124.70 | 0.6910 | 930.4 | 232.3 | |
| 0.54 | 1.36 | 0.37 | 0.92 | -18.93 | 149.92 | -36.81 | 123.53 | 0.6821 | 884.7 | 811.3 | |
| 2.72 | 4.27 | 1.84 | 2.89 | -18.80 | 149.71 | -37.02 | 123.23 | 0.6836 | 931.7 | 733.1 | |
| 0.00 | 3.36 | 0.00 | 2.38 | -22.53 | 148.61 | -38.11 | 127.16 | 0.7176 | -646.0 | -549.1 | |
| 4.81 | -15.00 | 3.30 | -15.00 | -19.84 | 149.39 | -37.34 | 124.35 | 0.6933 | 951.9 | 999999 | |
| 0.82 | -15.00 | 0.56 | -15.00 | -19.57 | 149.46 | -37.26 | 124.06 | 0.6909 | 906.4 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.36 | -15.78 | 150.38 | -36.35 | 119.63 | 0.6584 | 638.0 | 538.2 | |
| 2.54 | -15.00 | 1.75 | -15.00 | -20.08 | 149.28 | -37.44 | 124.58 | 0.6959 | 661.4 | 999999 | |
| 0.64 | -15.00 | 0.44 | -15.00 | -19.52 | 149.23 | -37.49 | 123.84 | 0.6930 | 673.4 | 999999 | |
| 0.00 | 4.18 | 0.00 | 2.84 | -18.82 | 149.42 | -37.30 | 123.06 | 0.6868 | 814.0 | 550.7 | |
| 7.08 | -15.00 | 4.88 | -15.00 | -19.86 | 149.10 | -37.63 | 124.18 | 0.6964 | 700.4 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.61 | -19.12 | 149.22 | -37.51 | 123.32 | 0.6907 | 655.0 | 487.3 | |
| 0.00 | 1.91 | 0.00 | 1.35 | -21.47 | 148.03 | -38.69 | 125.50 | 0.7169 | 662.0 | 466.6 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -20.72 | 148.26 | -38.46 | 124.73 | 0.7101 | 291.0 | 260.0 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -20.59 | 148.26 | -38.46 | 124.56 | 0.7093 | 310.0 | 251.0 | |
| 1.09 | 6.54 | 0.76 | 4.54 | -19.82 | 148.41 | -38.32 | 123.69 | 0.7033 | 672.4 | 531.1 | |
| 0.00 | 3.09 | 0.00 | 2.16 | -20.32 | 148.26 | -38.47 | 124.23 | 0.7078 | 538.0 | 438.4 | |
| 0.00 | 1.73 | 0.00 | 1.23 | -21.49 | 147.69 | -39.04 | 125.30 | 0.7204 | 617.0 | 456.2 | |
| 0.91 | 28.61 | 0.64 | 20.17 | -20.44 | 147.93 | -38.79 | 124.17 | 0.7118 | 586.1 | -28.7 | |
| 0.00 | 2.54 | 0.00 | 1.78 | -19.84 | 147.94 | -38.78 | 123.43 | 0.7082 | 444.0 | 287.0 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -19.06 | 147.67 | -39.05 | 122.27 | 0.7066 | 539.0 | 456.5 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -19.67 | 147.28 | -39.44 | 122.81 | 0.7141 | 482.0 | 357.8 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -13.53 | 148.77 | -37.96 | 115.56 | 0.6651 | 546.0 | 473.9 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -19.30 | 146.72 | -40.01 | 122.01 | 0.7178 | 384.0 | 320.1 | |
| 0.00 | 1.82 | 0.00 | 1.29 | -19.10 | 146.73 | -39.99 | 121.77 | 0.7166 | 533.0 | 430.8 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -16.06 | 147.54 | -39.18 | 118.31 | 0.6919 | 603.0 | 468.0 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -19.21 | 146.49 | -40.23 | 121.77 | 0.7197 | 299.0 | 333.3 | |
| 0.00 | 13.62 | 0.00 | 9.83 | -20.22 | 146.09 | -40.63 | 122.79 | 0.7292 | -457.0 | -565.5 | |
| 0.00 | 1.18 | 0.00 | 0.84 | -19.48 | 146.28 | -40.44 | 121.99 | 0.7233 | 513.0 | 431.3 | |
| 0.00 | 3.09 | 0.00 | 2.24 | -20.66 | 145.86 | -40.86 | 123.20 | 0.7339 | -634.0 | -507.6 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -20.38 | 145.61 | -41.11 | 122.70 | 0.7348 | -631.0 | -553.0 | |
| 0.00 | 2.09 | 0.00 | 1.56 | -22.05 | 144.99 | -41.74 | 124.36 | 0.7498 | -48.0 | -161.3 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -20.21 | 145.58 | -41.15 | 122.48 | 0.7343 | -696.0 | -675.0 | |
| 0.00 | 2.00 | 0.00 | 1.46 | -20.39 | 145.39 | -41.33 | 122.59 | 0.7371 | -553.0 | -528.0 | |
| 0.00 | 9.63 | 0.00 | 7.02 | -19.99 | 145.30 | -41.42 | 122.06 | 0.7359 | -736.0 | -728.2 | |
| 0.00 | 1.09 | 0.00 | 0.81 | -21.39 | 144.69 | -42.03 | 123.41 | 0.7491 | -633.0 | -539.0 | |
| 0.00 | 1.27 | 0.00 | 0.94 | -20.68 | 144.81 | -41.91 | 122.63 | 0.7443 | -687.0 | -556.6 | |
| 0.00 | 1.09 | 0.00 | 0.83 | -22.33 | 144.13 | -42.60 | 124.21 | 0.7594 | -53.0 | -120.2 | |
| 0.00 | 1.73 | 0.00 | 1.28 | -20.37 | 144.39 | -42.33 | 122.01 | 0.7469 | -766.0 | -677.5 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -17.92 | 145.16 | -41.56 | 119.41 | 0.7269 | -656.0 | -543.3 | |
| 0.00 | 1.18 | 0.00 | 0.88 | -20.24 | 144.21 | -42.51 | 121.77 | 0.7480 | -777.0 | -632.0 | |
| 0.00 | 1.00 | 0.00 | 0.75 | -20.45 | 144.00 | -42.72 | 121.91 | 0.7511 | -655.0 | -541.5 | |
| 0.00 | 0.54 | 0.00 | 0.41 | -21.14 | 143.53 | -43.19 | 122.49 | 0.7590 | -569.0 | -486.3 | |
| 0.00 | 1.27 | 0.00 | 0.97 | -21.39 | 143.22 | -43.51 | 122.62 | 0.7633 | -483.0 | -491.6 | |
| 0.00 | 1.63 | 0.00 | 1.28 | -22.74 | 142.55 | -44.17 | 123.85 | 0.7761 | -598.0 | -402.2 | |
| 0.00 | 1.18 | 0.00 | 0.94 | -23.08 | 141.89 | -44.83 | 123.90 | 0.7836 | -506.0 | -426.0 | |
| 0.00 | 0.73 | 0.00 | 0.58 | -22.95 | 141.76 | -44.96 | 123.68 | 0.7842 | -459.0 | -394.4 | |
| 0.00 | 1.09 | 0.00 | 0.85 | -20.63 | 141.72 | -45.00 | 120.95 | 0.7739 | -365.0 | -325.1 | |
| 0.00 | 1.00 | 0.00 | 0.78 | -19.36 | 141.22 | -45.50 | 119.20 | 0.7732 | -605.0 | -455.8 | |
| 0.00 | 0.91 | 0.00 | 0.71 | -18.84 | 140.43 | -46.29 | 118.21 | 0.7786 | -516.0 | -434.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
