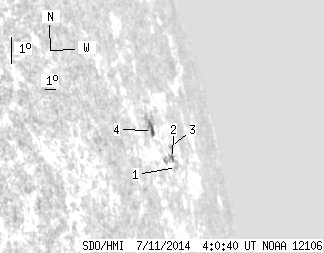

SDO HMI 2014-07-11 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.54 | 24.16 | 7.01 | 48.47 | 14.65 | 262.57 | 76.40 | 284.14 | 0.9707 | -304.7 | -222.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 2.96 | 13.84 | 263.60 | 77.43 | 283.31 | 0.9748 | 48.0 | 29.7 | |
| 1.00 | 7.72 | 2.14 | 16.10 | 14.14 | 263.35 | 77.18 | 283.61 | 0.9739 | -291.2 | -234.8 | |
| 0.00 | 2.45 | 0.00 | 5.32 | 14.51 | 263.49 | 77.32 | 283.99 | 0.9744 | -227.0 | -187.7 | |
| 2.54 | 12.63 | 4.87 | 24.09 | 15.13 | 261.72 | 75.54 | 284.62 | 0.9672 | -399.0 | -261.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
