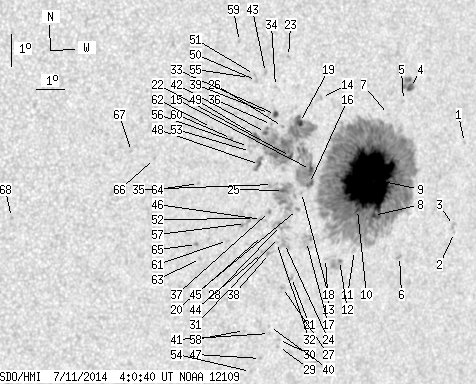

SDO HMI 2014-07-11 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 223.88 | 1282.94 | 139.46 | 793.81 | -7.97 | 221.08 | 34.91 | 251.08 | 0.6012 | 781.5 | 343.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.65 | -7.06 | 225.52 | 39.35 | 254.44 | 0.6554 | 482.0 | 404.3 | |
| 0.00 | 0.73 | 0.00 | 0.48 | -9.86 | 225.46 | 39.29 | 250.32 | 0.6648 | 578.0 | 457.5 | |
| 0.00 | 2.91 | 0.00 | 1.92 | -9.64 | 225.39 | 39.22 | 250.61 | 0.6631 | 726.0 | 539.0 | |
| 3.18 | 12.90 | 2.00 | 8.12 | -5.25 | 223.26 | 37.08 | 256.34 | 0.6201 | 756.7 | 751.5 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -5.65 | 223.01 | 36.84 | 255.63 | 0.6182 | -181.0 | -269.7 | |
| 0.00 | 2.45 | 0.00 | 1.58 | -10.52 | 223.38 | 37.20 | 248.36 | 0.6418 | -581.0 | -531.8 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -6.06 | 222.47 | 36.30 | 254.77 | 0.6123 | -505.0 | -374.8 | |
| 1.91 | 901.19 | 1.20 | 563.23 | -9.18 | 222.20 | 36.03 | 249.77 | 0.6211 | 462.0 | 415.5 | |
| 195.19 | -8.00 | 122.03 | -8.00 | -8.02 | 221.88 | 35.71 | 251.42 | 0.6120 | 1368.1 | 999999 | |
| 1.73 | -8.00 | 1.08 | -8.00 | -8.97 | 221.57 | 35.39 | 249.77 | 0.6119 | 1023.8 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.43 | -10.25 | 221.61 | 35.43 | 247.82 | 0.6183 | 206.0 | 147.7 | |
| 0.36 | 9.45 | 0.23 | 5.90 | -10.55 | 221.08 | 34.90 | 247.07 | 0.6130 | 901.0 | 527.0 | |
| 0.00 | 1.63 | 0.00 | 1.02 | -10.46 | 220.54 | 34.36 | 246.89 | 0.6057 | 218.0 | 157.2 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -5.42 | 219.92 | 33.74 | 254.71 | 0.5754 | -513.0 | -461.9 | |
| 3.81 | 194.19 | 2.32 | 116.64 | -7.65 | 219.68 | 33.50 | 250.90 | 0.5811 | 956.1 | 350.4 | |
| 2.72 | -15.00 | 1.66 | -15.00 | -8.08 | 219.68 | 33.50 | 250.18 | 0.5831 | 1130.6 | 999999 | |
| 0.00 | 12.35 | 0.00 | 7.58 | -9.90 | 219.76 | 33.58 | 247.31 | 0.5928 | 410.0 | 489.9 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -8.35 | 219.41 | 33.23 | 249.60 | 0.5807 | 754.0 | 669.1 | |
| 3.27 | -15.00 | 1.96 | -15.00 | -6.17 | 219.16 | 32.98 | 253.10 | 0.5678 | -476.7 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.05 | -8.88 | 219.31 | 33.14 | 248.68 | 0.5820 | 854.0 | 758.8 | |
| 0.00 | 2.54 | 0.00 | 1.56 | -11.01 | 219.33 | 33.16 | 245.30 | 0.5932 | -664.0 | -502.2 | |
| 2.09 | -15.00 | 1.26 | -15.00 | -7.21 | 218.90 | 32.73 | 251.21 | 0.5688 | 1020.5 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -4.11 | 218.64 | 32.46 | 256.42 | 0.5529 | -599.0 | -480.7 | |
| 0.00 | 9.99 | 0.00 | 6.08 | -9.93 | 218.95 | 32.77 | 246.77 | 0.5824 | 141.0 | 46.4 | |
| 2.36 | 43.51 | 1.42 | 26.26 | -8.26 | 218.74 | 32.56 | 249.36 | 0.5713 | 566.2 | 500.1 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -6.27 | 218.54 | 32.37 | 252.62 | 0.5597 | -466.0 | -401.2 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -11.31 | 219.04 | 32.86 | 244.64 | 0.5911 | -798.0 | -702.3 | |
| 0.00 | 12.35 | 0.00 | 7.48 | -9.35 | 218.74 | 32.56 | 247.57 | 0.5767 | -486.0 | -311.7 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -13.19 | 219.15 | 32.98 | 241.84 | 0.6033 | -487.0 | -414.8 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -12.96 | 219.12 | 32.94 | 242.16 | 0.6016 | -573.0 | -465.1 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -9.73 | 218.70 | 32.53 | 246.94 | 0.5782 | -482.0 | -333.9 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -9.88 | 218.65 | 32.47 | 246.65 | 0.5782 | -519.0 | -420.2 | |
| 2.09 | 3.45 | 1.24 | 2.05 | -5.89 | 218.26 | 32.09 | 253.14 | 0.5543 | -748.6 | -597.9 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -5.02 | 218.21 | 32.04 | 254.63 | 0.5501 | -544.0 | -457.8 | |
| 0.00 | 4.09 | 0.00 | 2.45 | -8.06 | 218.32 | 32.14 | 249.46 | 0.5647 | 353.0 | 375.1 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -6.19 | 218.14 | 31.96 | 252.55 | 0.5538 | -592.0 | -485.6 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -8.90 | 218.29 | 32.11 | 248.04 | 0.5684 | -669.0 | -566.1 | |
| 0.00 | 2.36 | 0.00 | 1.43 | -10.22 | 218.43 | 32.25 | 245.97 | 0.5772 | -531.0 | -454.8 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -5.85 | 218.04 | 31.87 | 253.09 | 0.5511 | -756.0 | -591.2 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -12.53 | 218.72 | 32.55 | 242.53 | 0.5941 | -708.0 | -558.3 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -12.76 | 218.75 | 32.58 | 242.21 | 0.5958 | -683.0 | -629.7 | |
| 1.27 | -15.00 | 0.75 | -15.00 | -6.43 | 217.94 | 31.76 | 252.02 | 0.5521 | -748.6 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.28 | -4.57 | 217.83 | 31.65 | 255.24 | 0.5431 | -506.0 | -388.3 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -10.18 | 218.17 | 31.99 | 245.87 | 0.5735 | -655.0 | -579.2 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -9.64 | 218.11 | 31.93 | 246.70 | 0.5699 | -593.0 | -539.7 | |
| 0.00 | 3.81 | 0.00 | 2.29 | -9.14 | 218.02 | 31.85 | 247.48 | 0.5661 | -706.0 | -564.9 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -13.54 | 218.53 | 32.36 | 240.87 | 0.5979 | -733.0 | -547.3 | |
| 1.63 | 7.54 | 0.97 | 4.48 | -7.42 | 217.79 | 31.62 | 250.24 | 0.5545 | -572.0 | -480.6 | |
| 2.27 | -15.00 | 1.34 | -15.00 | -6.54 | 217.62 | 31.45 | 251.66 | 0.5481 | -718.8 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.23 | -4.81 | 217.52 | 31.34 | 254.67 | 0.5395 | -605.0 | -436.0 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -4.62 | 217.44 | 31.26 | 254.97 | 0.5376 | -694.0 | -592.9 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -9.10 | 217.76 | 31.59 | 247.38 | 0.5624 | -583.0 | -517.5 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -7.00 | 217.44 | 31.26 | 250.75 | 0.5477 | -631.0 | -495.2 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -13.95 | 218.23 | 32.05 | 240.03 | 0.5967 | -45.0 | -78.1 | |
| 0.00 | 1.91 | 0.00 | 1.12 | -4.71 | 217.26 | 31.09 | 254.73 | 0.5355 | -724.0 | -620.8 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -6.84 | 217.35 | 31.18 | 250.98 | 0.5458 | -587.0 | -443.6 | |
| 0.00 | 5.09 | 0.00 | 3.03 | -9.24 | 217.45 | 31.27 | 246.94 | 0.5590 | -559.0 | -654.2 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -12.63 | 217.81 | 31.64 | 241.74 | 0.5833 | -481.0 | -412.0 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -3.58 | 216.86 | 30.68 | 256.60 | 0.5256 | -649.0 | -558.0 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -6.57 | 216.73 | 30.55 | 251.10 | 0.5358 | -754.0 | -652.3 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -9.75 | 216.85 | 30.68 | 245.68 | 0.5539 | -603.0 | -545.7 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -6.20 | 215.99 | 29.82 | 251.33 | 0.5238 | -562.0 | -526.0 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -10.28 | 215.94 | 29.76 | 244.14 | 0.5449 | -547.0 | -393.5 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -7.93 | 215.65 | 29.48 | 248.01 | 0.5277 | -722.0 | -511.8 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -9.84 | 215.75 | 29.57 | 244.76 | 0.5397 | -857.0 | -715.0 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -7.10 | 214.05 | 27.87 | 248.42 | 0.5009 | -708.0 | -600.3 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -6.85 | 213.24 | 27.06 | 248.30 | 0.4881 | -691.0 | -518.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -8.78 | 209.28 | 23.10 | 241.02 | 0.4451 | -690.0 | -607.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
