SDO HMI 2014-07-11 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.06 | 217.06 | 22.54 | 150.50 | -19.80 | 148.20 | -37.98 | 123.93 | 0.6996 | 333.8 | 38.5 | |
|
previous
or next observation for the same group /

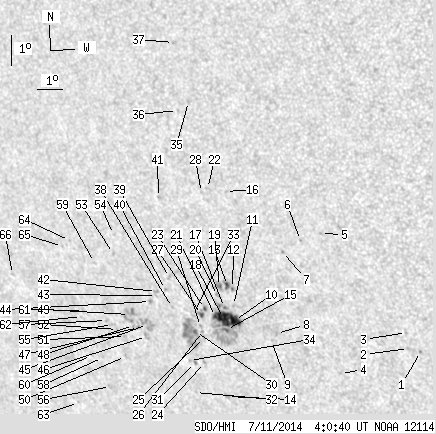

back to the solar disc SDO HMI 2014-07-11 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.74 | -20.74 | 156.74 | -29.44 | 131.67 | 0.6176 | 850.0 | 763.1 | |
| 0.00 | 1.63 | 0.00 | 1.03 | -20.65 | 156.31 | -29.87 | 131.17 | 0.6213 | 458.0 | 373.4 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -20.11 | 156.35 | -29.83 | 130.51 | 0.6165 | 561.0 | 497.3 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -21.59 | 153.48 | -32.70 | 129.96 | 0.6576 | 687.0 | 545.5 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -16.95 | 153.76 | -32.42 | 124.03 | 0.6210 | 813.0 | 665.1 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -17.21 | 152.95 | -33.23 | 123.77 | 0.6319 | 657.0 | 500.1 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -17.60 | 152.17 | -34.00 | 123.73 | 0.6432 | 590.0 | 505.2 | |
| 0.00 | 1.54 | 0.00 | 1.03 | -20.34 | 151.28 | -34.89 | 126.68 | 0.6711 | 400.0 | 442.8 | |
| 0.00 | 0.73 | 0.00 | 0.49 | -20.58 | 151.02 | -35.16 | 126.80 | 0.6755 | 626.0 | 566.6 | |
| 9.99 | 77.57 | 6.78 | 52.98 | -19.97 | 149.70 | -36.48 | 125.10 | 0.6852 | 995.0 | 219.3 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -19.47 | 149.79 | -36.38 | 124.52 | 0.6811 | 780.0 | 691.6 | |
| 0.00 | 1.09 | 0.00 | 0.73 | -18.90 | 149.90 | -36.28 | 123.86 | 0.6764 | 901.0 | 880.4 | |
| 1.54 | 3.81 | 1.04 | 2.56 | -18.81 | 149.72 | -36.45 | 123.62 | 0.6777 | 1005.5 | 781.9 | |
| 0.00 | 2.82 | 0.00 | 1.98 | -22.57 | 148.64 | -37.53 | 127.59 | 0.7123 | -682.0 | -535.2 | |
| 1.36 | -10.00 | 0.93 | -10.00 | -20.29 | 149.28 | -36.89 | 125.22 | 0.6915 | 488.2 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -15.72 | 150.35 | -35.82 | 119.90 | 0.6521 | 655.0 | 558.7 | |
| 0.36 | -10.00 | 0.25 | -10.00 | -19.55 | 149.41 | -36.77 | 124.36 | 0.6856 | 969.2 | 999999 | |
| 14.08 | -10.00 | 9.60 | -10.00 | -19.92 | 149.26 | -36.91 | 124.74 | 0.6894 | 810.8 | 999999 | |
| 0.73 | 7.18 | 0.49 | 4.85 | -18.86 | 149.39 | -36.79 | 123.46 | 0.6816 | 799.1 | 430.6 | |
| 0.00 | 2.36 | 0.00 | 1.60 | -19.16 | 149.23 | -36.95 | 123.74 | 0.6851 | 644.0 | 502.8 | |
| 1.91 | -10.00 | 1.31 | -10.00 | -19.87 | 148.95 | -37.22 | 124.47 | 0.6923 | 564.0 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.19 | -15.65 | 149.66 | -36.52 | 119.36 | 0.6597 | 609.0 | 516.3 | |
| 0.73 | 6.72 | 0.50 | 4.63 | -19.62 | 148.57 | -37.60 | 123.90 | 0.6948 | 659.8 | 496.2 | |
| 0.00 | 1.18 | 0.00 | 0.83 | -21.45 | 148.03 | -38.14 | 125.83 | 0.7113 | 717.0 | 559.0 | |
| 0.00 | 1.00 | 0.00 | 0.69 | -20.60 | 148.29 | -37.88 | 124.95 | 0.7035 | 339.0 | 225.0 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -20.40 | 148.27 | -37.91 | 124.68 | 0.7026 | 481.0 | 415.9 | |
| 1.27 | -23.00 | 0.88 | -23.00 | -19.83 | 148.39 | -37.78 | 124.05 | 0.6979 | 660.2 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -15.79 | 149.39 | -36.78 | 119.38 | 0.6635 | 440.0 | 483.7 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -20.23 | 148.23 | -37.94 | 124.46 | 0.7019 | 679.0 | 554.5 | |
| 1.09 | 32.15 | 0.76 | 22.50 | -20.41 | 147.97 | -38.20 | 124.51 | 0.7056 | 575.5 | -49.7 | |
| 0.00 | 1.36 | 0.00 | 0.96 | -21.46 | 147.65 | -38.52 | 125.60 | 0.7152 | 481.0 | 349.8 | |
| 0.00 | 0.64 | 0.00 | 0.46 | -22.49 | 147.32 | -38.86 | 126.63 | 0.7246 | -622.0 | -514.0 | |
| 0.00 | 1.91 | 0.00 | 1.32 | -19.88 | 148.01 | -38.17 | 123.86 | 0.7022 | 402.0 | 298.6 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -21.41 | 147.42 | -38.76 | 125.38 | 0.7172 | 446.0 | 313.8 | |
| 0.00 | 2.00 | 0.00 | 1.30 | -12.88 | 149.44 | -36.73 | 115.33 | 0.6473 | 421.0 | 361.1 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -13.18 | 148.96 | -37.22 | 115.49 | 0.6547 | 380.0 | 387.3 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -11.02 | 149.16 | -37.02 | 112.48 | 0.6418 | 507.0 | 453.4 | |
| 0.00 | 1.18 | 0.00 | 0.83 | -19.65 | 147.24 | -38.93 | 123.09 | 0.7087 | 243.0 | 244.6 | |
| 0.00 | 2.18 | 0.00 | 1.51 | -18.65 | 147.40 | -38.77 | 121.93 | 0.7014 | 330.0 | 356.0 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -19.06 | 147.12 | -39.05 | 122.28 | 0.7066 | 601.0 | 551.7 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -16.03 | 147.61 | -38.56 | 118.63 | 0.6849 | 542.0 | 371.4 | |
| 0.00 | 2.18 | 0.00 | 1.53 | -19.14 | 146.72 | -39.45 | 122.14 | 0.7113 | 579.0 | 443.3 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -19.27 | 146.68 | -39.49 | 122.29 | 0.7124 | 231.0 | 290.3 | |
| 0.00 | 2.18 | 0.00 | 1.54 | -19.49 | 146.37 | -39.81 | 122.37 | 0.7168 | 400.0 | 292.1 | |
| 0.00 | 10.35 | 0.00 | 7.42 | -20.27 | 146.00 | -40.17 | 123.12 | 0.7248 | -599.0 | -607.8 | |
| 0.00 | 2.27 | 0.00 | 1.64 | -20.67 | 145.83 | -40.35 | 123.52 | 0.7288 | -598.0 | -533.7 | |
| 0.00 | 1.18 | 0.00 | 0.85 | -20.38 | 145.58 | -40.60 | 123.02 | 0.7297 | -574.0 | -524.3 | |
| 0.00 | 1.45 | 0.00 | 1.05 | -20.33 | 145.38 | -40.79 | 122.83 | 0.7314 | -552.0 | -514.1 | |
| 0.00 | 10.90 | 0.00 | 7.87 | -19.96 | 145.32 | -40.85 | 122.35 | 0.7300 | -775.0 | -695.3 | |
| 0.00 | 1.91 | 0.00 | 1.41 | -21.40 | 144.67 | -41.50 | 123.72 | 0.7441 | -565.0 | -436.5 | |
| 0.00 | 1.54 | 0.00 | 1.13 | -20.72 | 144.91 | -41.27 | 123.03 | 0.7382 | -268.0 | -343.8 | |
| 0.00 | 1.45 | 0.00 | 1.07 | -20.50 | 144.63 | -41.54 | 122.61 | 0.7397 | -356.0 | -462.9 | |
| 0.00 | 1.18 | 0.00 | 0.84 | -17.96 | 145.24 | -40.93 | 119.80 | 0.7205 | -383.0 | -337.6 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -17.33 | 145.42 | -40.76 | 119.10 | 0.7155 | -589.0 | -469.6 | |
| 0.00 | 1.91 | 0.00 | 1.40 | -20.34 | 144.47 | -41.71 | 122.33 | 0.7406 | -712.0 | -620.5 | |
| 0.00 | 2.00 | 0.00 | 1.52 | -22.46 | 143.62 | -42.56 | 124.39 | 0.7597 | -189.0 | -237.0 | |
| 0.00 | 1.18 | 0.00 | 0.87 | -20.21 | 144.24 | -41.93 | 122.05 | 0.7421 | -626.0 | -492.5 | |
| 0.00 | 0.54 | 0.00 | 0.41 | -21.48 | 143.62 | -42.55 | 123.24 | 0.7546 | -447.0 | -397.3 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -18.30 | 144.33 | -41.84 | 119.73 | 0.7317 | -251.0 | -400.0 | |
| 0.00 | 0.64 | 0.00 | 0.48 | -21.44 | 143.15 | -43.03 | 122.93 | 0.7590 | -630.0 | -558.0 | |
| 0.00 | 1.63 | 0.00 | 1.22 | -19.93 | 143.33 | -42.85 | 121.21 | 0.7498 | -192.0 | -222.2 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -20.13 | 143.17 | -43.01 | 121.38 | 0.7524 | -226.0 | -285.7 | |
| 0.00 | 0.54 | 0.00 | 0.43 | -23.08 | 141.90 | -44.27 | 124.20 | 0.7786 | -442.0 | -436.3 | |
| 0.00 | 1.09 | 0.00 | 0.80 | -17.62 | 143.45 | -42.73 | 118.42 | 0.7376 | -344.0 | -269.8 | |
| 0.00 | 0.73 | 0.00 | 0.54 | -17.83 | 143.07 | -43.10 | 118.50 | 0.7424 | -349.0 | -389.1 | |
| 0.00 | 1.27 | 0.00 | 0.99 | -18.88 | 140.47 | -45.70 | 118.53 | 0.7731 | -442.0 | -317.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
