SDO HMI 2014-07-11 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.18 | 21.62 | 10.57 | 44.65 | 14.73 | 262.28 | 76.66 | 284.22 | 0.9717 | -341.6 | -221.7 | |
|
previous
or next observation for the same group /

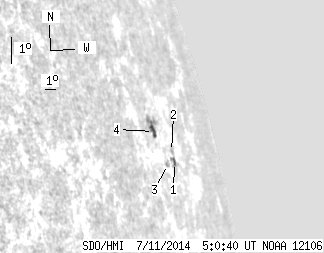

back to the solar disc SDO HMI 2014-07-11 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 4.27 | 3.04 | 9.47 | 14.11 | 263.37 | 77.74 | 283.59 | 0.9760 | -249.5 | -226.7 | |
| 0.00 | 2.00 | 0.00 | 4.47 | 14.46 | 263.33 | 77.71 | 283.94 | 0.9758 | -246.0 | -229.3 | |
| 0.00 | 3.18 | 0.00 | 6.61 | 14.11 | 262.36 | 76.73 | 283.58 | 0.9721 | -287.0 | -281.1 | |
| 3.82 | 12.17 | 7.53 | 24.10 | 15.20 | 261.64 | 76.02 | 284.69 | 0.9692 | -398.7 | -193.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
