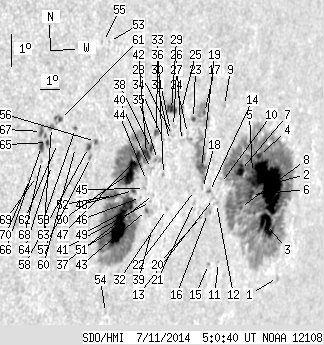

SDO HMI 2014-07-11 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 225.82 | 1201.94 | 204.10 | 1082.54 | -7.11 | 241.37 | 55.75 | 258.80 | 0.8365 | 169.6 | 76.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.09 | 0.00 | 2.17 | -10.19 | 245.68 | 60.05 | 256.14 | 0.8803 | -104.0 | -136.8 | |
| 91.02 | 654.29 | 89.20 | 634.40 | -7.21 | 244.30 | 58.67 | 259.26 | 0.8645 | 825.3 | 308.1 | |
| 19.08 | -2.00 | 18.91 | -2.00 | -8.47 | 244.52 | 58.90 | 257.87 | 0.8682 | 688.6 | 999999 | |
| 2.82 | -2.00 | 2.69 | -2.00 | -6.28 | 243.64 | 58.02 | 260.22 | 0.8576 | 712.2 | 999999 | |
| 0.27 | -2.00 | 0.26 | -2.00 | -6.78 | 243.33 | 57.70 | 259.58 | 0.8555 | 1022.0 | 999999 | |
| 4.09 | -2.00 | 3.90 | -2.00 | -7.47 | 243.41 | 57.78 | 258.80 | 0.8571 | 1020.4 | 999999 | |
| 7.45 | -2.00 | 6.94 | -2.00 | -6.68 | 242.62 | 57.00 | 259.58 | 0.8490 | 949.7 | 999999 | |
| 1.45 | -2.00 | 1.37 | -2.00 | -7.84 | 242.85 | 57.22 | 258.27 | 0.8528 | 797.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.22 | -4.60 | 241.42 | 55.80 | 261.81 | 0.8350 | 56.0 | 128.5 | |
| 0.00 | 0.73 | 0.00 | 0.66 | -7.02 | 241.56 | 55.94 | 258.98 | 0.8398 | 417.0 | 370.8 | |
| 0.00 | 0.91 | 0.00 | 0.84 | -9.50 | 241.99 | 56.36 | 256.16 | 0.8478 | 307.0 | 315.7 | |
| 0.00 | 2.09 | 0.00 | 1.89 | -7.63 | 241.46 | 55.83 | 258.23 | 0.8398 | 450.0 | 361.9 | |
| 0.00 | 1.45 | 0.00 | 1.31 | -7.47 | 241.26 | 55.64 | 258.39 | 0.8377 | 149.0 | 187.9 | |
| 0.73 | 2.63 | 0.65 | 2.36 | -7.24 | 241.00 | 55.37 | 258.61 | 0.8348 | -217.1 | -48.7 | |
| 0.00 | 1.27 | 0.00 | 1.16 | -9.53 | 241.44 | 55.81 | 256.01 | 0.8428 | 578.0 | 503.7 | |
| 0.00 | 9.45 | 0.00 | 8.48 | -7.92 | 241.02 | 55.40 | 257.81 | 0.8362 | 169.0 | 178.9 | |
| 0.73 | 25.71 | 0.63 | 22.34 | -4.76 | 240.36 | 54.73 | 261.45 | 0.8249 | 536.2 | 334.4 | |
| 0.00 | 1.45 | 0.00 | 1.29 | -7.12 | 240.60 | 54.97 | 258.67 | 0.8308 | 434.0 | 461.9 | |
| 7.63 | 48.42 | 6.70 | 42.33 | -6.46 | 240.43 | 54.81 | 259.43 | 0.8282 | 710.0 | 457.5 | |
| 0.00 | 1.09 | 0.00 | 0.97 | -8.02 | 240.66 | 55.04 | 257.61 | 0.8330 | -84.0 | -87.3 | |
| 0.00 | 1.54 | 0.00 | 1.36 | -7.53 | 240.25 | 54.62 | 258.11 | 0.8282 | -170.0 | -169.4 | |
| 0.00 | 1.00 | 0.00 | 0.87 | -7.16 | 240.18 | 54.55 | 258.54 | 0.8269 | 285.0 | 256.1 | |
| 1.27 | -17.00 | 1.09 | -17.00 | -4.91 | 239.79 | 54.17 | 261.17 | 0.8196 | -295.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.93 | -5.36 | 239.53 | 53.91 | 260.58 | 0.8177 | -13.0 | -69.7 | |
| 0.00 | 3.72 | 0.00 | 3.15 | -4.59 | 239.13 | 53.51 | 261.44 | 0.8125 | -453.0 | -284.8 | |
| 0.00 | 2.36 | 0.00 | 2.01 | -5.56 | 239.25 | 53.62 | 260.28 | 0.8152 | 214.0 | 250.5 | |
| 0.00 | 2.00 | 0.00 | 1.68 | -5.10 | 238.78 | 53.15 | 260.76 | 0.8097 | -240.0 | -326.2 | |
| 0.00 | 1.45 | 0.00 | 1.22 | -5.37 | 238.76 | 53.13 | 260.41 | 0.8100 | -225.0 | -223.9 | |
| 6.27 | 12.99 | 5.24 | 10.84 | -4.57 | 238.61 | 52.99 | 261.38 | 0.8073 | -651.4 | -350.2 | |
| 0.00 | 0.91 | 0.00 | 0.76 | -5.21 | 238.64 | 53.01 | 260.59 | 0.8085 | -475.0 | -436.2 | |
| 0.00 | 0.73 | 0.00 | 0.61 | -5.52 | 238.62 | 53.00 | 260.21 | 0.8088 | -320.0 | -282.6 | |
| 0.00 | 1.36 | 0.00 | 1.16 | -7.67 | 238.80 | 53.17 | 257.63 | 0.8143 | 40.0 | -54.0 | |
| 0.00 | 1.45 | 0.00 | 1.22 | -6.56 | 238.46 | 52.84 | 258.90 | 0.8090 | -242.0 | -182.3 | |
| 0.00 | 0.91 | 0.00 | 0.76 | -5.47 | 238.31 | 52.69 | 260.21 | 0.8056 | -393.0 | -380.7 | |
| 0.00 | 4.45 | 0.00 | 3.69 | -6.08 | 238.09 | 52.46 | 259.42 | 0.8043 | -476.0 | -336.7 | |
| 1.91 | 3.54 | 1.57 | 2.92 | -5.24 | 237.93 | 52.30 | 260.43 | 0.8013 | -488.6 | -399.4 | |
| 0.00 | 1.00 | 0.00 | 0.83 | -7.16 | 238.05 | 52.42 | 258.08 | 0.8058 | -194.0 | -215.5 | |
| 2.27 | 352.35 | 1.87 | 283.97 | -5.72 | 237.74 | 52.11 | 259.79 | 0.8001 | -388.3 | -448.1 | |
| 0.00 | 0.73 | 0.00 | 0.61 | -8.28 | 238.14 | 52.52 | 256.74 | 0.8090 | -19.0 | -137.9 | |
| 0.00 | 3.45 | 0.00 | 2.85 | -6.34 | 237.77 | 52.14 | 259.03 | 0.8015 | -437.0 | -274.3 | |
| 0.00 | 0.82 | 0.00 | 0.68 | -7.37 | 237.93 | 52.30 | 257.80 | 0.8050 | -255.0 | -309.6 | |
| 5.90 | -38.00 | 4.83 | -38.00 | -5.86 | 237.50 | 51.88 | 259.57 | 0.7980 | -673.7 | 999999 | |
| 0.91 | 4.72 | 0.75 | 3.93 | -7.64 | 237.77 | 52.15 | 257.43 | 0.8040 | -194.1 | -60.6 | |
| 0.00 | 1.73 | 0.00 | 1.42 | -6.70 | 237.62 | 52.00 | 258.55 | 0.8007 | -8.0 | -49.5 | |
| 0.00 | 1.27 | 0.00 | 1.05 | -6.95 | 237.56 | 51.93 | 258.24 | 0.8005 | -327.0 | -242.1 | |
| 0.00 | 0.73 | 0.00 | 0.60 | -7.22 | 237.40 | 51.78 | 257.87 | 0.7994 | -180.0 | -185.0 | |
| 4.36 | -38.00 | 3.54 | -38.00 | -5.93 | 237.12 | 51.49 | 259.40 | 0.7940 | -814.3 | 999999 | |
| 1.09 | -38.00 | 0.89 | -38.00 | -6.98 | 237.02 | 51.39 | 258.08 | 0.7949 | -529.6 | 999999 | |
| 1.36 | -38.00 | 1.11 | -38.00 | -7.50 | 237.00 | 51.37 | 257.42 | 0.7958 | -531.7 | 999999 | |
| 17.80 | -38.00 | 14.37 | -38.00 | -6.41 | 236.79 | 51.16 | 258.73 | 0.7915 | -971.3 | 999999 | |
| 32.52 | -38.00 | 26.23 | -38.00 | -8.06 | 236.45 | 50.83 | 256.59 | 0.7913 | -1053.3 | 999999 | |
| 4.81 | -38.00 | 3.83 | -38.00 | -7.08 | 236.05 | 50.43 | 257.73 | 0.7851 | -862.2 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -2.30 | 235.39 | 49.77 | 263.69 | 0.7697 | -204.0 | -196.0 | |
| 0.00 | 1.18 | 0.00 | 0.96 | -10.75 | 236.36 | 50.73 | 253.26 | 0.7965 | -373.0 | -339.0 | |
| 0.00 | 0.36 | 0.00 | 0.28 | -2.28 | 235.11 | 49.48 | 263.66 | 0.7665 | -430.0 | -398.0 | |
| 0.73 | 2.18 | 0.56 | 1.69 | -5.35 | 234.97 | 49.34 | 259.67 | 0.7700 | 411.5 | 338.1 | |
| 0.00 | 2.00 | 0.00 | 1.54 | -5.83 | 234.79 | 49.16 | 259.01 | 0.7689 | -40.0 | 27.1 | |
| 1.73 | 4.45 | 1.33 | 3.42 | -5.52 | 234.66 | 49.03 | 259.39 | 0.7669 | 728.7 | 545.5 | |
| 0.45 | 1.73 | 0.34 | 1.31 | -4.90 | 233.99 | 48.36 | 260.05 | 0.7583 | -398.4 | -251.7 | |
| 0.00 | 0.91 | 0.00 | 0.69 | -5.49 | 234.05 | 48.42 | 259.29 | 0.7601 | 198.0 | 170.3 | |
| 1.18 | 6.09 | 0.88 | 4.53 | -4.58 | 233.27 | 47.64 | 260.30 | 0.7496 | -579.7 | -543.0 | |
| 0.00 | 0.82 | 0.00 | 0.61 | -5.32 | 233.20 | 47.58 | 259.32 | 0.7502 | 36.0 | 126.6 | |
| 0.00 | 4.27 | 0.00 | 3.16 | -4.81 | 232.88 | 47.25 | 259.92 | 0.7455 | -768.0 | -598.2 | |
| 0.00 | 0.91 | 0.00 | 0.68 | -5.99 | 233.00 | 47.37 | 258.39 | 0.7493 | 190.0 | 172.9 | |
| 1.36 | 9.99 | 1.01 | 7.36 | -5.26 | 232.74 | 47.12 | 259.28 | 0.7449 | -496.9 | -610.4 | |
| 3.18 | 4.81 | 2.34 | 3.55 | -5.37 | 232.48 | 46.86 | 259.07 | 0.7421 | -684.1 | -509.8 | |
| 1.45 | -65.00 | 1.07 | -65.00 | -4.91 | 232.44 | 46.81 | 259.68 | 0.7407 | -847.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.01 | -5.81 | 232.53 | 46.90 | 258.51 | 0.7436 | -215.0 | -266.3 | |
| 0.00 | 0.55 | 0.00 | 0.40 | -6.29 | 232.36 | 46.73 | 257.82 | 0.7427 | -635.0 | -594.5 | |
| 0.00 | 0.82 | 0.00 | 0.60 | -6.37 | 232.05 | 46.43 | 257.64 | 0.7394 | -480.0 | -437.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
