SDO HMI 2014-07-11 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.06 | 156.25 | 16.36 | 82.04 | 5.87 | 204.67 | 19.04 | 276.79 | 0.3285 | -329.8 | -256.1 | |
|
previous
or next observation for the same group /

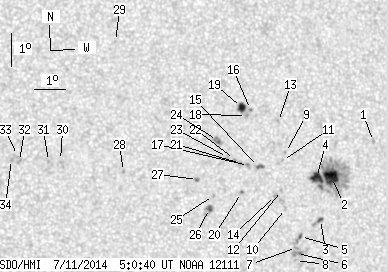

back to the solar disc SDO HMI 2014-07-11 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.78 | 6.91 | 207.54 | 21.91 | 278.69 | 0.3764 | -788.0 | -653.8 | |
| 14.72 | 87.02 | 7.78 | 46.04 | 5.84 | 206.11 | 20.48 | 276.15 | 0.3516 | -1132.3 | -408.3 | |
| 1.18 | 4.63 | 0.62 | 2.44 | 4.57 | 205.71 | 20.08 | 272.54 | 0.3440 | -820.5 | -590.6 | |
| 8.27 | -2.00 | 4.36 | -2.00 | 5.86 | 205.62 | 19.99 | 276.30 | 0.3437 | -1192.5 | 999999 | |
| 0.45 | 4.54 | 0.24 | 2.38 | 4.07 | 205.04 | 19.42 | 271.06 | 0.3331 | -871.6 | -746.8 | |
| 0.00 | 4.36 | 0.00 | 2.29 | 3.56 | 204.90 | 19.27 | 269.50 | 0.3309 | -1160.0 | -968.3 | |
| 0.00 | 1.73 | 0.00 | 0.91 | 3.74 | 204.90 | 19.28 | 270.05 | 0.3309 | -1023.0 | -790.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 3.34 | 204.86 | 19.24 | 268.85 | 0.3304 | -784.0 | -616.0 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 6.64 | 204.64 | 19.02 | 278.93 | 0.3290 | -648.0 | -498.2 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 4.94 | 204.58 | 18.95 | 273.72 | 0.3257 | -727.0 | -620.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 6.40 | 204.54 | 18.91 | 278.23 | 0.3268 | -668.0 | -504.2 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 5.49 | 204.47 | 18.84 | 275.44 | 0.3244 | -762.0 | -549.1 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 7.59 | 204.46 | 18.83 | 281.89 | 0.3284 | 659.0 | 500.4 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 5.34 | 204.27 | 18.64 | 275.02 | 0.3209 | -841.0 | -673.6 | |
| 0.45 | 3.45 | 0.24 | 1.80 | 6.24 | 203.75 | 18.13 | 277.99 | 0.3137 | -998.0 | -829.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 7.98 | 203.57 | 17.94 | 283.59 | 0.3152 | 758.0 | 664.7 | |
| 0.00 | 2.45 | 0.00 | 1.28 | 6.27 | 203.43 | 17.81 | 278.23 | 0.3085 | -887.0 | -807.7 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 7.80 | 203.43 | 17.80 | 283.11 | 0.3124 | 863.0 | 720.2 | |
| 4.54 | 6.18 | 2.37 | 3.22 | 8.05 | 203.28 | 17.65 | 283.99 | 0.3108 | 1028.3 | 740.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 5.46 | 203.18 | 17.55 | 275.63 | 0.3030 | -863.0 | -755.4 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 6.34 | 203.18 | 17.55 | 278.54 | 0.3044 | -1081.0 | -831.5 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 6.47 | 202.99 | 17.36 | 279.04 | 0.3016 | -934.0 | -711.5 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 6.53 | 202.77 | 17.14 | 279.35 | 0.2980 | -709.0 | -606.2 | |
| 0.00 | 5.36 | 0.00 | 2.78 | 7.06 | 202.46 | 16.84 | 281.27 | 0.2944 | 862.0 | 758.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 5.38 | 202.28 | 16.65 | 275.61 | 0.2879 | 728.0 | 607.6 | |
| 1.45 | 6.54 | 0.75 | 3.38 | 4.99 | 202.14 | 16.51 | 274.26 | 0.2852 | 1013.6 | 719.4 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 5.88 | 201.78 | 16.16 | 277.52 | 0.2804 | 1057.0 | 853.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 6.17 | 199.44 | 13.82 | 279.76 | 0.2420 | 845.0 | 672.3 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 10.15 | 199.33 | 13.71 | 295.24 | 0.2591 | 803.0 | 656.2 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 6.54 | 197.47 | 11.85 | 282.91 | 0.2102 | 649.0 | 662.5 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 6.51 | 197.10 | 11.47 | 283.17 | 0.2038 | 884.0 | 711.1 | |
| 0.00 | 2.09 | 0.00 | 1.05 | 6.53 | 196.19 | 10.56 | 284.24 | 0.1888 | 977.0 | 742.4 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 6.71 | 196.13 | 10.51 | 285.27 | 0.1885 | 508.0 | 634.4 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 6.59 | 195.94 | 10.32 | 284.89 | 0.1849 | 960.0 | 765.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
