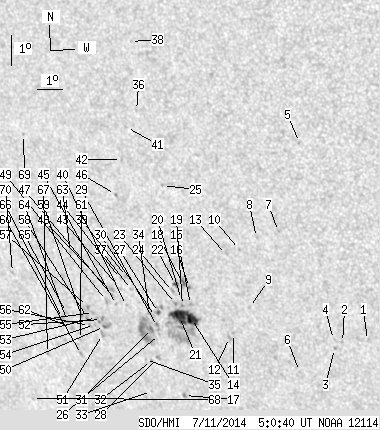

SDO HMI 2014-07-11 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.80 | 202.17 | 20.82 | 138.69 | -19.83 | 148.42 | -37.20 | 124.47 | 0.6917 | 316.4 | 85.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.68 | -20.45 | 156.40 | -29.23 | 131.50 | 0.6131 | 606.0 | 541.8 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -20.55 | 155.44 | -30.19 | 130.76 | 0.6239 | 551.0 | 432.1 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -20.77 | 155.09 | -30.54 | 130.73 | 0.6292 | 636.0 | 474.7 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -20.47 | 155.12 | -30.51 | 130.37 | 0.6265 | 493.0 | 425.6 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -14.04 | 155.05 | -30.58 | 121.24 | 0.5794 | 700.0 | 566.6 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -21.60 | 153.55 | -32.08 | 130.47 | 0.6514 | 543.0 | 501.2 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -16.95 | 153.77 | -31.85 | 124.49 | 0.6147 | 827.0 | 704.1 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -17.18 | 152.90 | -32.73 | 124.12 | 0.6262 | 700.0 | 586.6 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -19.51 | 152.12 | -33.51 | 126.66 | 0.6509 | 126.0 | 232.1 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -17.60 | 152.16 | -33.47 | 124.14 | 0.6373 | 633.0 | 523.2 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -20.41 | 151.27 | -34.36 | 127.17 | 0.6661 | 787.0 | 578.4 | |
| 0.00 | 2.54 | 0.00 | 1.69 | -20.55 | 151.07 | -34.55 | 127.21 | 0.6691 | 649.0 | 566.6 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -17.79 | 151.62 | -34.01 | 123.98 | 0.6445 | 585.0 | 389.1 | |
| 10.90 | 71.58 | 7.34 | 48.59 | -19.97 | 149.71 | -35.92 | 125.49 | 0.6794 | 949.9 | 145.8 | |
| 0.00 | 2.00 | 0.00 | 1.34 | -19.51 | 149.79 | -35.83 | 124.95 | 0.6755 | 801.0 | 623.6 | |
| 0.00 | 1.27 | 0.00 | 0.85 | -18.94 | 149.90 | -35.73 | 124.29 | 0.6708 | 917.0 | 870.4 | |
| 0.00 | 1.91 | 0.00 | 1.33 | -22.60 | 148.66 | -36.97 | 128.03 | 0.7071 | -599.0 | -522.4 | |
| 1.09 | 4.00 | 0.73 | 2.67 | -18.78 | 149.66 | -35.97 | 123.92 | 0.6724 | 956.2 | 777.8 | |
| 0.00 | 1.54 | 0.00 | 1.04 | -19.55 | 149.46 | -36.17 | 124.78 | 0.6793 | 850.0 | 768.2 | |
| 0.00 | 0.73 | 0.00 | 0.49 | -19.35 | 149.47 | -36.15 | 124.53 | 0.6779 | 663.0 | 550.0 | |
| 15.26 | -14.00 | 10.33 | -14.00 | -19.93 | 149.24 | -36.39 | 125.11 | 0.6840 | 781.5 | 999999 | |
| 1.36 | 3.36 | 0.91 | 2.25 | -18.86 | 149.36 | -36.27 | 123.82 | 0.6761 | 754.3 | 556.9 | |
| 0.00 | 2.00 | 0.00 | 1.35 | -19.50 | 149.19 | -36.43 | 124.53 | 0.6818 | 763.0 | 622.5 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -19.10 | 149.18 | -36.45 | 124.00 | 0.6795 | 539.0 | 416.1 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -15.63 | 149.59 | -36.04 | 119.63 | 0.6541 | 698.0 | 631.9 | |
| 0.00 | 0.55 | 0.00 | 0.38 | -20.57 | 148.24 | -37.38 | 125.25 | 0.6983 | 401.0 | 352.8 | |
| 1.00 | 5.27 | 0.68 | 3.60 | -19.83 | 148.41 | -37.21 | 124.43 | 0.6920 | 695.4 | 583.0 | |
| 0.00 | 2.36 | 0.00 | 1.65 | -21.35 | 147.97 | -37.65 | 126.03 | 0.7059 | 634.0 | 506.2 | |
| 0.00 | 2.73 | 0.00 | 1.88 | -20.30 | 148.24 | -37.39 | 124.91 | 0.6967 | 568.0 | 503.3 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -19.97 | 148.25 | -37.37 | 124.50 | 0.6945 | 184.0 | 342.2 | |
| 0.55 | 33.15 | 0.38 | 23.01 | -20.38 | 147.97 | -37.66 | 124.83 | 0.6999 | 553.8 | -40.9 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -21.47 | 147.64 | -37.98 | 125.96 | 0.7099 | 471.0 | 339.2 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -22.53 | 147.30 | -38.32 | 127.03 | 0.7197 | -610.0 | -473.6 | |
| 0.00 | 1.18 | 0.00 | 0.81 | -19.88 | 148.03 | -37.59 | 124.24 | 0.6963 | 457.0 | 395.1 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -21.44 | 147.40 | -38.22 | 125.77 | 0.7121 | 408.0 | 322.0 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -13.25 | 149.02 | -36.60 | 115.94 | 0.6477 | 412.0 | 428.4 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -19.11 | 147.51 | -38.12 | 122.92 | 0.6972 | 681.0 | 575.4 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -11.06 | 149.15 | -36.48 | 112.82 | 0.6353 | 538.0 | 472.2 | |
| 0.00 | 1.82 | 0.00 | 1.25 | -18.68 | 147.42 | -38.21 | 122.32 | 0.6957 | 652.0 | 528.5 | |
| 0.00 | 1.00 | 0.00 | 0.69 | -19.65 | 147.15 | -38.48 | 123.39 | 0.7041 | 452.0 | 309.5 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -13.81 | 148.53 | -37.10 | 116.45 | 0.6565 | 264.0 | 304.4 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -14.85 | 148.12 | -37.50 | 117.66 | 0.6666 | 391.0 | 404.7 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -19.09 | 147.06 | -38.57 | 122.62 | 0.7018 | 538.0 | 490.0 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -18.76 | 147.15 | -38.48 | 122.26 | 0.6989 | 377.0 | 334.6 | |
| 0.00 | 0.82 | 0.00 | 0.57 | -19.64 | 146.74 | -38.89 | 123.11 | 0.7083 | 286.0 | 294.7 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -16.00 | 147.64 | -37.99 | 118.93 | 0.6783 | 415.0 | 319.7 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -19.34 | 146.65 | -38.97 | 122.69 | 0.7074 | 358.0 | 360.9 | |
| 0.00 | 0.64 | 0.00 | 0.44 | -19.18 | 146.62 | -39.01 | 122.46 | 0.7069 | 506.0 | 524.9 | |
| 0.00 | 1.54 | 0.00 | 1.09 | -19.52 | 146.35 | -39.27 | 122.73 | 0.7116 | 505.0 | 394.7 | |
| 0.64 | 4.45 | 0.45 | 3.16 | -20.40 | 146.00 | -39.62 | 123.62 | 0.7201 | -590.6 | -411.8 | |
| 0.00 | 3.18 | 0.00 | 2.27 | -20.68 | 145.83 | -39.80 | 123.85 | 0.7233 | -514.0 | -469.4 | |
| 0.00 | 2.73 | 0.00 | 1.94 | -20.17 | 145.95 | -39.68 | 123.30 | 0.7194 | -874.0 | -692.7 | |
| 0.00 | 1.18 | 0.00 | 0.84 | -20.11 | 145.75 | -39.87 | 123.11 | 0.7210 | -828.0 | -690.2 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -20.35 | 145.59 | -40.03 | 123.31 | 0.7239 | -506.0 | -458.9 | |
| 0.00 | 1.64 | 0.00 | 1.17 | -19.95 | 145.67 | -39.95 | 122.86 | 0.7209 | -694.0 | -655.9 | |
| 0.00 | 1.45 | 0.00 | 1.04 | -20.40 | 145.36 | -40.26 | 123.23 | 0.7265 | -429.0 | -467.8 | |
| 0.00 | 1.45 | 0.00 | 1.04 | -19.76 | 145.48 | -40.15 | 122.51 | 0.7218 | -839.0 | -722.2 | |
| 0.00 | 2.09 | 0.00 | 1.50 | -20.13 | 145.36 | -40.26 | 122.90 | 0.7250 | -662.0 | -672.5 | |
| 0.00 | 1.82 | 0.00 | 1.31 | -20.07 | 145.12 | -40.50 | 122.69 | 0.7271 | -727.0 | -646.2 | |
| 0.00 | 1.82 | 0.00 | 1.33 | -21.40 | 144.69 | -40.94 | 124.05 | 0.7386 | -412.0 | -328.6 | |
| 0.00 | 0.82 | 0.00 | 0.59 | -20.89 | 144.82 | -40.81 | 123.51 | 0.7346 | -585.0 | -531.3 | |
| 0.00 | 1.82 | 0.00 | 1.32 | -20.50 | 144.56 | -41.07 | 122.89 | 0.7351 | -674.0 | -556.5 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -17.99 | 145.28 | -40.35 | 120.17 | 0.7146 | -604.0 | -446.8 | |
| 0.00 | 1.00 | 0.00 | 0.73 | -20.31 | 144.45 | -41.18 | 122.59 | 0.7352 | -624.0 | -578.2 | |
| 0.00 | 1.82 | 0.00 | 1.32 | -20.00 | 144.50 | -41.12 | 122.25 | 0.7330 | -564.0 | -470.4 | |
| 0.00 | 1.73 | 0.00 | 1.26 | -20.21 | 144.26 | -41.37 | 122.37 | 0.7366 | -601.0 | -521.1 | |
| 0.00 | 0.55 | 0.00 | 0.41 | -21.43 | 143.18 | -42.45 | 123.24 | 0.7534 | -452.0 | -556.5 | |
| 0.00 | 0.55 | 0.00 | 0.42 | -23.02 | 141.89 | -43.74 | 124.41 | 0.7735 | -550.0 | -519.5 | |
| 0.00 | 0.82 | 0.00 | 0.57 | -14.22 | 144.25 | -41.37 | 114.73 | 0.7077 | 503.0 | 411.2 | |
| 0.00 | 1.00 | 0.00 | 0.74 | -18.77 | 142.54 | -43.09 | 119.68 | 0.7467 | -377.0 | -336.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
