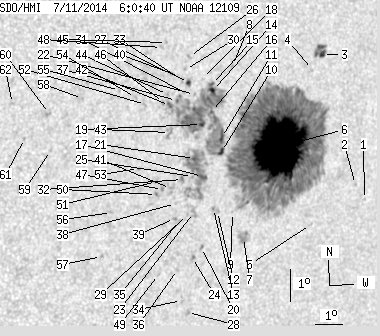

SDO HMI 2014-07-11 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 222.75 | 1288.60 | 140.85 | 808.19 | -8.01 | 221.32 | 36.24 | 251.65 | 0.6190 | 840.4 | 334.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.55 | -9.84 | 225.50 | 40.42 | 250.83 | 0.6786 | 433.0 | 381.7 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -9.35 | 225.06 | 39.98 | 251.34 | 0.6715 | 380.0 | 399.5 | |
| 2.36 | 13.81 | 1.51 | 8.83 | -5.23 | 223.32 | 38.24 | 256.78 | 0.6355 | 732.7 | 725.0 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -5.68 | 222.97 | 37.89 | 255.96 | 0.6322 | -161.0 | -245.9 | |
| 0.00 | 1.45 | 0.00 | 0.95 | -10.53 | 223.43 | 38.35 | 248.91 | 0.6561 | -449.0 | -441.3 | |
| 200.12 | 1110.35 | 126.96 | 698.97 | -8.02 | 221.90 | 36.82 | 251.92 | 0.6265 | 1416.6 | 393.9 | |
| 0.00 | 11.08 | 0.00 | 7.02 | -10.82 | 220.86 | 35.78 | 247.13 | 0.6255 | 600.0 | 483.5 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -5.43 | 219.90 | 34.82 | 255.16 | 0.5902 | -571.0 | -451.6 | |
| 0.00 | 0.55 | 0.00 | 0.34 | -10.01 | 220.33 | 35.25 | 248.07 | 0.6149 | 194.0 | 173.0 | |
| 2.82 | -6.00 | 1.74 | -6.00 | -8.08 | 219.70 | 34.62 | 250.76 | 0.5980 | 1065.3 | 999999 | |
| 4.27 | -6.00 | 2.63 | -6.00 | -7.65 | 219.66 | 34.58 | 251.44 | 0.5956 | 802.0 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.36 | -9.96 | 219.76 | 34.68 | 247.84 | 0.6073 | 736.0 | 613.9 | |
| 0.00 | 1.64 | 0.00 | 1.01 | -9.86 | 219.59 | 34.52 | 247.90 | 0.6047 | 863.0 | 712.3 | |
| 2.18 | -6.00 | 1.33 | -6.00 | -6.17 | 219.20 | 34.13 | 253.63 | 0.5835 | -497.8 | 999999 | |
| 0.73 | -6.00 | 0.44 | -6.00 | -5.98 | 219.15 | 34.08 | 253.92 | 0.5821 | -698.4 | 999999 | |
| 0.64 | -6.00 | 0.39 | -6.00 | -6.82 | 219.22 | 34.14 | 252.56 | 0.5862 | 752.1 | 999999 | |
| 2.63 | 66.31 | 1.62 | 40.58 | -8.84 | 219.07 | 33.99 | 249.22 | 0.5930 | 494.7 | 359.6 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -5.78 | 218.81 | 33.73 | 254.09 | 0.5766 | -421.0 | -281.6 | |
| 2.00 | -6.00 | 1.22 | -6.00 | -7.21 | 218.88 | 33.80 | 251.75 | 0.5833 | 1069.9 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.24 | -11.07 | 219.29 | 34.22 | 245.85 | 0.6070 | -682.0 | -554.2 | |
| 1.73 | -17.00 | 1.05 | -17.00 | -8.26 | 218.71 | 33.63 | 249.95 | 0.5857 | 592.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -6.27 | 218.55 | 33.47 | 253.15 | 0.5749 | -420.0 | -382.5 | |
| 0.00 | 6.45 | 0.00 | 3.97 | -9.95 | 218.86 | 33.78 | 247.32 | 0.5957 | 83.0 | -53.8 | |
| 0.00 | 2.18 | 0.00 | 1.35 | -11.38 | 219.00 | 33.92 | 245.20 | 0.6048 | -812.0 | -683.3 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -8.82 | 218.69 | 33.62 | 249.03 | 0.5880 | -297.0 | -266.6 | |
| 0.00 | 2.18 | 0.00 | 1.31 | -5.08 | 218.29 | 33.21 | 255.04 | 0.5668 | -681.0 | -510.3 | |
| 1.64 | 3.18 | 0.98 | 1.91 | -5.89 | 218.30 | 33.22 | 253.68 | 0.5700 | -719.1 | -553.3 | |
| 0.00 | 2.91 | 0.00 | 1.82 | -13.12 | 219.06 | 33.98 | 242.61 | 0.6153 | -492.0 | -433.4 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -10.01 | 218.64 | 33.56 | 247.11 | 0.5931 | -478.0 | -401.7 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -5.48 | 218.16 | 33.08 | 254.31 | 0.5666 | -531.0 | -413.8 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -6.19 | 218.17 | 33.09 | 253.10 | 0.5695 | -579.0 | -390.2 | |
| 0.00 | 3.09 | 0.00 | 1.88 | -8.90 | 218.33 | 33.25 | 248.70 | 0.5836 | -610.0 | -510.8 | |
| 0.00 | 2.54 | 0.00 | 1.53 | -5.82 | 218.07 | 33.00 | 253.69 | 0.5666 | -827.0 | -543.8 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -12.73 | 218.78 | 33.70 | 243.01 | 0.6095 | -424.0 | -469.1 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -10.19 | 218.36 | 33.28 | 246.66 | 0.5904 | -479.0 | -430.8 | |
| 0.00 | 1.82 | 0.00 | 1.12 | -11.73 | 218.48 | 33.40 | 244.33 | 0.6003 | -689.0 | -425.6 | |
| 0.36 | -6.00 | 0.22 | -6.00 | -6.43 | 217.90 | 32.82 | 252.56 | 0.5666 | -788.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -9.64 | 218.15 | 33.07 | 247.40 | 0.5849 | -640.0 | -524.5 | |
| 0.00 | 1.73 | 0.00 | 1.05 | -10.11 | 218.17 | 33.09 | 246.65 | 0.5876 | -663.0 | -614.9 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -5.58 | 217.66 | 32.58 | 253.89 | 0.5599 | -729.0 | -647.7 | |
| 0.00 | 7.18 | 0.00 | 4.35 | -9.17 | 217.92 | 32.84 | 248.03 | 0.5794 | -717.0 | -554.2 | |
| 1.27 | -6.00 | 0.76 | -6.00 | -6.57 | 217.65 | 32.57 | 252.19 | 0.5639 | -699.3 | 999999 | |
| 0.00 | 6.36 | 0.00 | 3.82 | -7.41 | 217.72 | 32.64 | 250.81 | 0.5684 | -461.0 | -474.2 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -6.23 | 217.55 | 32.48 | 252.73 | 0.5611 | -802.0 | -677.4 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -4.62 | 217.42 | 32.34 | 255.46 | 0.5530 | -753.0 | -638.5 | |
| 0.00 | 2.00 | 0.00 | 1.19 | -6.47 | 217.43 | 32.35 | 252.25 | 0.5603 | -801.0 | -595.6 | |
| 0.00 | 1.73 | 0.00 | 1.04 | -9.19 | 217.62 | 32.55 | 247.82 | 0.5757 | -790.0 | -654.5 | |
| 0.00 | 1.73 | 0.00 | 1.02 | -4.77 | 217.25 | 32.17 | 255.12 | 0.5511 | -717.0 | -643.8 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -11.86 | 217.79 | 32.71 | 243.67 | 0.5923 | -471.0 | -426.0 | |
| 0.00 | 1.82 | 0.00 | 1.10 | -9.33 | 217.42 | 32.34 | 247.45 | 0.5737 | -798.0 | -665.9 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -8.93 | 217.38 | 32.30 | 248.10 | 0.5711 | -676.0 | -637.9 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -6.51 | 216.78 | 31.70 | 251.84 | 0.5515 | -662.0 | -589.5 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -8.49 | 216.68 | 31.60 | 248.39 | 0.5596 | -636.0 | -644.0 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -6.28 | 216.40 | 31.32 | 252.04 | 0.5453 | -690.0 | -565.3 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -6.04 | 215.81 | 30.73 | 252.14 | 0.5360 | -642.0 | -588.4 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -9.84 | 215.84 | 30.76 | 245.59 | 0.5555 | -792.0 | -574.5 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -11.21 | 215.62 | 30.55 | 243.17 | 0.5608 | -616.0 | -558.7 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -6.24 | 214.51 | 29.43 | 251.02 | 0.5186 | -648.0 | -537.9 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -7.82 | 213.49 | 28.41 | 247.46 | 0.5124 | -761.0 | -604.5 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -6.66 | 213.38 | 28.30 | 249.51 | 0.5047 | -642.0 | -588.3 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -7.41 | 212.56 | 27.48 | 247.53 | 0.4971 | -624.0 | -444.1 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -6.31 | 212.07 | 27.00 | 249.29 | 0.4843 | -710.0 | -582.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
