SDO HMI 2014-07-11 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.53 | 175.94 | 25.52 | 95.76 | 7.93 | 161.31 | -23.77 | 78.97 | 0.4074 | -289.9 | -16.1 | |
|
previous
or next observation for the same group /

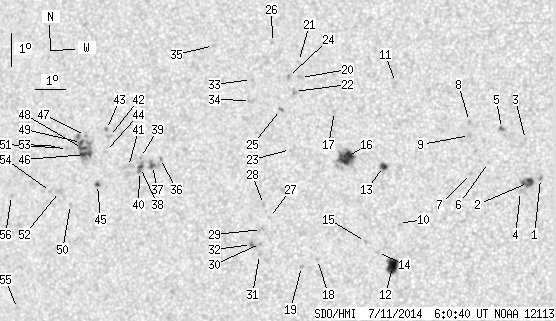

back to the solar disc SDO HMI 2014-07-11 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.74 | 7.85 | 170.99 | -14.09 | 73.78 | 0.2523 | -1171.0 | -881.9 | |
| 4.72 | 7.99 | 2.42 | 4.10 | 7.72 | 170.61 | -14.47 | 74.63 | 0.2579 | -1154.0 | -886.9 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 9.04 | 170.47 | -14.61 | 69.95 | 0.2664 | -772.0 | -631.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 7.45 | 170.37 | -14.71 | 75.90 | 0.2608 | -671.0 | -491.6 | |
| 0.64 | 1.91 | 0.33 | 0.98 | 9.36 | 169.69 | -15.39 | 69.72 | 0.2805 | -1059.6 | -854.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 8.31 | 169.31 | -15.77 | 73.68 | 0.2814 | -776.0 | -605.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 7.97 | 168.78 | -16.30 | 75.30 | 0.2886 | -785.0 | -643.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 9.56 | 168.65 | -16.43 | 70.18 | 0.2978 | -793.0 | -670.7 | |
| 0.00 | 2.45 | 0.00 | 1.27 | 9.13 | 168.67 | -16.41 | 71.54 | 0.2954 | -885.0 | -640.9 | |
| 0.00 | 0.36 | 0.00 | 0.19 | 6.40 | 166.49 | -18.59 | 81.68 | 0.3215 | -406.0 | -436.5 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 10.71 | 166.18 | -18.90 | 69.13 | 0.3421 | -861.0 | -630.7 | |
| 11.63 | 14.81 | 6.08 | 7.75 | 5.08 | 166.34 | -18.74 | 85.80 | 0.3222 | -1053.7 | -643.5 | |
| 2.91 | 5.45 | 1.53 | 2.86 | 8.13 | 165.93 | -19.15 | 76.71 | 0.3351 | -1039.4 | -528.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 5.50 | 165.84 | -19.24 | 84.61 | 0.3308 | -815.0 | -639.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 5.83 | 165.44 | -19.64 | 83.72 | 0.3378 | -800.0 | -567.2 | |
| 12.54 | 24.07 | 6.64 | 12.75 | 8.38 | 164.71 | -20.37 | 76.69 | 0.3554 | -1108.1 | -684.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 9.77 | 164.23 | -20.85 | 73.19 | 0.3680 | 755.0 | 651.2 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 5.24 | 163.89 | -21.19 | 85.67 | 0.3625 | -841.0 | -654.2 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 5.02 | 163.37 | -21.71 | 86.34 | 0.3708 | -945.0 | -750.1 | |
| 0.00 | 2.63 | 0.00 | 1.42 | 10.79 | 163.02 | -22.05 | 71.41 | 0.3908 | 701.0 | 489.3 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 11.28 | 162.92 | -22.16 | 70.28 | 0.3946 | 821.0 | 538.4 | |
| 0.00 | 3.72 | 0.00 | 2.00 | 10.35 | 162.86 | -22.22 | 72.59 | 0.3916 | 975.0 | 673.0 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 8.58 | 162.84 | -22.24 | 77.09 | 0.3855 | -656.0 | -516.5 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 10.81 | 162.62 | -22.46 | 71.63 | 0.3971 | 904.0 | 783.6 | |
| 0.00 | 2.00 | 0.00 | 1.08 | 9.79 | 162.43 | -22.65 | 74.24 | 0.3960 | -905.0 | -681.2 | |
| 0.00 | 1.64 | 0.00 | 0.89 | 11.84 | 161.99 | -23.08 | 69.60 | 0.4111 | 643.0 | 441.6 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 6.48 | 162.25 | -22.82 | 82.66 | 0.3903 | -783.0 | -702.9 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 6.87 | 162.03 | -23.04 | 81.72 | 0.3944 | -784.0 | -648.9 | |
| 0.00 | 3.09 | 0.00 | 1.66 | 6.11 | 162.00 | -23.07 | 83.67 | 0.3937 | -670.0 | -545.4 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 5.68 | 161.99 | -23.09 | 84.76 | 0.3935 | -842.0 | -670.9 | |
| 0.00 | 0.64 | 0.00 | 0.34 | 5.35 | 161.97 | -23.11 | 85.62 | 0.3936 | -713.0 | -628.6 | |
| 0.64 | 3.36 | 0.34 | 1.81 | 5.65 | 161.69 | -23.39 | 84.90 | 0.3983 | -805.9 | -730.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 10.69 | 161.38 | -23.70 | 72.69 | 0.4154 | 795.0 | 668.3 | |
| 0.00 | 3.00 | 0.00 | 1.63 | 10.04 | 161.40 | -23.68 | 74.20 | 0.4127 | 410.0 | 539.3 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 11.69 | 159.99 | -25.08 | 71.22 | 0.4403 | -801.0 | -511.9 | |
| 0.00 | 1.64 | 0.00 | 0.91 | 8.18 | 158.46 | -26.62 | 79.64 | 0.4526 | -857.0 | -725.8 | |
| 1.64 | 7.27 | 0.91 | 4.04 | 7.96 | 158.20 | -26.88 | 80.19 | 0.4562 | -954.0 | -716.9 | |
| 1.54 | 6.81 | 0.86 | 3.80 | 7.89 | 157.79 | -27.29 | 80.46 | 0.4623 | -670.1 | -383.4 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 8.19 | 157.77 | -27.31 | 79.81 | 0.4632 | -552.0 | -397.8 | |
| 0.27 | -38.00 | 0.15 | -38.00 | 7.76 | 157.77 | -27.31 | 80.73 | 0.4625 | -737.7 | 999999 | |
| 0.00 | 6.36 | 0.00 | 3.56 | 7.91 | 157.37 | -27.70 | 80.52 | 0.4687 | 210.0 | 249.9 | |
| 0.00 | 2.27 | 0.00 | 1.28 | 8.80 | 156.64 | -28.44 | 78.84 | 0.4816 | 834.0 | 763.5 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 9.01 | 156.52 | -28.56 | 78.44 | 0.4839 | 906.0 | 802.9 | |
| 0.00 | 1.73 | 0.00 | 0.97 | 8.34 | 156.54 | -28.54 | 79.82 | 0.4822 | 350.0 | 277.0 | |
| 1.27 | 2.45 | 0.72 | 1.39 | 7.32 | 156.33 | -28.75 | 81.97 | 0.4837 | 736.1 | 546.3 | |
| 5.00 | 29.89 | 2.84 | 17.01 | 8.22 | 155.84 | -29.24 | 80.22 | 0.4925 | 1041.2 | 756.1 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 8.80 | 155.79 | -29.28 | 79.06 | 0.4943 | 808.0 | 696.6 | |
| 2.91 | -46.00 | 1.66 | -46.00 | 8.40 | 155.72 | -29.36 | 79.89 | 0.4946 | 1058.3 | 999999 | |
| 1.82 | -46.00 | 1.04 | -46.00 | 8.59 | 155.67 | -29.41 | 79.54 | 0.4957 | 992.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 6.68 | 155.42 | -29.65 | 83.42 | 0.4966 | 907.0 | 618.7 | |
| 0.00 | 1.82 | 0.00 | 1.04 | 8.39 | 155.19 | -29.89 | 80.05 | 0.5025 | 679.0 | 536.8 | |
| 0.00 | 4.00 | 0.00 | 2.29 | 7.07 | 155.01 | -30.07 | 82.71 | 0.5033 | 829.0 | 600.8 | |
| 0.00 | 0.73 | 0.00 | 0.42 | 8.44 | 154.90 | -30.18 | 80.01 | 0.5069 | 554.0 | 490.1 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 7.06 | 154.69 | -30.39 | 82.78 | 0.5081 | 662.0 | 557.1 | |
| 0.00 | 1.73 | 0.00 | 1.00 | 3.45 | 153.70 | -31.38 | 89.85 | 0.5217 | 701.0 | 557.8 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 6.89 | 153.30 | -31.78 | 83.29 | 0.5285 | 558.0 | 501.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
