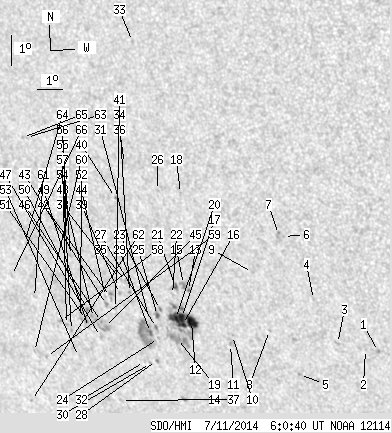

SDO HMI 2014-07-11 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.07 | 197.30 | 20.21 | 134.50 | -19.87 | 148.32 | -36.76 | 124.82 | 0.6875 | 307.8 | 94.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.68 | -20.72 | 156.72 | -28.36 | 132.68 | 0.6065 | 875.0 | 670.2 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -20.67 | 156.25 | -28.83 | 132.16 | 0.6109 | 601.0 | 621.7 | |
| 0.00 | 1.91 | 0.00 | 1.20 | -20.50 | 155.24 | -29.84 | 131.01 | 0.6199 | 618.0 | 489.1 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -19.06 | 154.64 | -30.44 | 128.58 | 0.6147 | 702.0 | 551.8 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -21.61 | 153.54 | -31.54 | 130.94 | 0.6461 | 600.0 | 526.4 | |
| 0.00 | 0.64 | 0.00 | 0.40 | -17.02 | 153.92 | -31.16 | 125.15 | 0.6073 | 746.0 | 665.1 | |
| 0.00 | 2.63 | 0.00 | 1.64 | -16.96 | 153.75 | -31.33 | 124.92 | 0.6088 | 788.0 | 678.8 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -20.16 | 152.73 | -32.35 | 128.42 | 0.6434 | 640.0 | 452.8 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -18.25 | 152.51 | -32.57 | 125.71 | 0.6319 | 524.0 | 435.6 | |
| 0.00 | 0.73 | 0.00 | 0.48 | -20.39 | 151.24 | -33.84 | 127.54 | 0.6606 | 737.0 | 564.6 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -20.69 | 151.08 | -34.00 | 127.81 | 0.6644 | 537.0 | 491.9 | |
| 9.81 | 56.32 | 6.56 | 37.84 | -19.98 | 149.72 | -35.36 | 125.89 | 0.6737 | 976.8 | 384.0 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -18.95 | 149.86 | -35.22 | 124.66 | 0.6654 | 896.0 | 822.7 | |
| 0.00 | 2.27 | 0.00 | 1.57 | -22.64 | 148.67 | -36.40 | 128.47 | 0.7019 | -586.0 | -481.7 | |
| 0.00 | 3.91 | 0.00 | 2.59 | -18.76 | 149.71 | -35.37 | 124.30 | 0.6658 | 897.0 | 850.4 | |
| 3.00 | -12.00 | 2.02 | -12.00 | -20.10 | 149.33 | -35.75 | 125.77 | 0.6785 | 652.0 | 999999 | |
| 5.18 | -12.00 | 3.47 | -12.00 | -19.86 | 149.35 | -35.73 | 125.48 | 0.6768 | 927.9 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -15.77 | 150.25 | -34.82 | 120.63 | 0.6410 | 760.0 | 587.1 | |
| 0.00 | 17.71 | 0.00 | 12.01 | -20.58 | 149.00 | -36.08 | 126.14 | 0.6851 | -98.0 | -19.0 | |
| 8.18 | -12.00 | 5.51 | -12.00 | -19.91 | 149.10 | -35.98 | 125.36 | 0.6797 | 684.0 | 999999 | |
| 1.09 | 4.00 | 0.73 | 2.66 | -18.84 | 149.37 | -35.71 | 124.17 | 0.6699 | 777.2 | 480.8 | |
| 0.00 | 1.45 | 0.00 | 0.97 | -19.11 | 149.18 | -35.89 | 124.39 | 0.6736 | 473.0 | 304.7 | |
| 0.00 | 1.64 | 0.00 | 1.11 | -19.63 | 148.57 | -36.51 | 124.64 | 0.6835 | 702.0 | 605.2 | |
| 0.00 | 0.82 | 0.00 | 0.56 | -20.61 | 148.22 | -36.86 | 125.65 | 0.6933 | 492.0 | 382.9 | |
| 1.09 | 3.72 | 0.74 | 2.53 | -19.84 | 148.39 | -36.69 | 124.79 | 0.6866 | 750.5 | 559.0 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -15.70 | 149.37 | -35.71 | 119.96 | 0.6508 | 555.0 | 431.3 | |
| 0.45 | 2.27 | 0.31 | 1.55 | -20.24 | 148.24 | -36.84 | 125.20 | 0.6907 | 670.8 | 488.4 | |
| 0.00 | 1.00 | 0.00 | 0.69 | -21.36 | 147.91 | -37.16 | 126.38 | 0.7011 | 548.0 | 497.3 | |
| 1.27 | 31.79 | 0.87 | 21.91 | -20.42 | 147.94 | -37.14 | 125.23 | 0.6949 | 516.6 | -56.4 | |
| 0.00 | 1.27 | 0.00 | 0.89 | -21.47 | 147.63 | -37.45 | 126.33 | 0.7046 | 455.0 | 315.1 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -19.89 | 148.01 | -37.07 | 124.60 | 0.6909 | 420.0 | 392.3 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -21.41 | 147.40 | -37.68 | 126.10 | 0.7065 | 431.0 | 308.8 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -10.96 | 149.23 | -35.85 | 113.03 | 0.6271 | 573.0 | 442.2 | |
| 0.00 | 1.27 | 0.00 | 0.87 | -19.11 | 147.45 | -37.63 | 123.25 | 0.6921 | 675.0 | 554.1 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -18.72 | 147.39 | -37.69 | 122.70 | 0.6904 | 624.0 | 565.3 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -14.88 | 148.24 | -36.84 | 118.11 | 0.6591 | 589.0 | 506.8 | |
| 0.00 | 1.82 | 0.00 | 1.31 | -22.79 | 145.98 | -39.09 | 126.85 | 0.7288 | -353.0 | -319.6 | |
| 0.00 | 1.18 | 0.00 | 0.81 | -18.70 | 147.19 | -37.89 | 122.55 | 0.6924 | 462.0 | 342.2 | |
| 0.00 | 1.54 | 0.00 | 1.06 | -19.17 | 147.02 | -38.06 | 123.04 | 0.6969 | 536.0 | 481.6 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -16.00 | 147.65 | -37.43 | 119.28 | 0.6721 | 340.0 | 321.9 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -19.68 | 146.71 | -38.36 | 123.49 | 0.7031 | 314.0 | 298.4 | |
| 0.00 | 3.09 | 0.00 | 2.14 | -19.28 | 146.62 | -38.46 | 122.94 | 0.7018 | 362.0 | 442.2 | |
| 0.00 | 2.54 | 0.00 | 1.77 | -19.56 | 146.37 | -38.70 | 123.13 | 0.7059 | 502.0 | 287.4 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -19.29 | 146.41 | -38.67 | 122.82 | 0.7040 | 143.0 | 167.1 | |
| 0.00 | 6.45 | 0.00 | 4.55 | -20.34 | 146.06 | -39.02 | 123.91 | 0.7136 | -476.0 | -494.0 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -20.14 | 145.99 | -39.08 | 123.63 | 0.7131 | -811.0 | -758.3 | |
| 0.00 | 2.18 | 0.00 | 1.55 | -20.65 | 145.80 | -39.28 | 124.13 | 0.7181 | -602.0 | -492.0 | |
| 0.00 | 2.27 | 0.00 | 1.61 | -20.02 | 145.69 | -39.38 | 123.29 | 0.7155 | -592.0 | -718.0 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -20.37 | 145.38 | -39.70 | 123.53 | 0.7207 | -542.0 | -474.4 | |
| 0.00 | 1.54 | 0.00 | 1.09 | -19.76 | 145.52 | -39.56 | 122.87 | 0.7159 | -835.0 | -747.9 | |
| 0.00 | 3.54 | 0.00 | 2.52 | -20.10 | 145.37 | -39.70 | 123.20 | 0.7192 | -672.0 | -668.0 | |
| 0.00 | 1.36 | 0.00 | 0.97 | -20.05 | 145.14 | -39.94 | 122.99 | 0.7213 | -675.0 | -649.4 | |
| 0.00 | 0.55 | 0.00 | 0.40 | -21.37 | 144.62 | -40.45 | 124.31 | 0.7338 | -668.0 | -516.0 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -20.50 | 144.61 | -40.47 | 123.24 | 0.7292 | -597.0 | -565.9 | |
| 0.00 | 1.27 | 0.00 | 0.89 | -17.99 | 145.31 | -39.76 | 120.51 | 0.7084 | -302.0 | -357.1 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -17.17 | 145.37 | -39.71 | 119.48 | 0.7036 | -633.0 | -613.5 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -20.31 | 144.46 | -40.62 | 122.92 | 0.7296 | -756.0 | -650.3 | |
| 0.00 | 1.82 | 0.00 | 1.31 | -20.19 | 144.24 | -40.84 | 122.64 | 0.7312 | -778.0 | -600.0 | |
| 0.00 | 0.91 | 0.00 | 0.68 | -21.44 | 143.20 | -41.87 | 123.57 | 0.7480 | -451.0 | -469.4 | |
| 0.00 | 0.64 | 0.00 | 0.48 | -21.29 | 142.72 | -42.35 | 123.13 | 0.7518 | -437.0 | -415.4 | |
| 0.00 | 1.00 | 0.00 | 0.73 | -19.47 | 143.34 | -41.73 | 121.25 | 0.7364 | -551.0 | -381.3 | |
| 0.00 | 1.00 | 0.00 | 0.77 | -22.98 | 141.95 | -43.13 | 124.70 | 0.7678 | -370.0 | -400.2 | |
| 0.00 | 0.82 | 0.00 | 0.57 | -14.22 | 144.41 | -40.67 | 115.08 | 0.6997 | 176.0 | 191.0 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -17.65 | 143.46 | -41.62 | 119.05 | 0.7263 | -376.0 | -351.0 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -14.22 | 144.24 | -40.83 | 115.00 | 0.7017 | 514.0 | 426.8 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -18.78 | 142.56 | -42.52 | 119.98 | 0.7410 | -430.0 | -399.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
