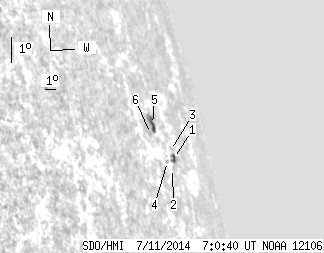

SDO HMI 2014-07-11 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.18 | 18.81 | 13.81 | 41.88 | 14.74 | 262.31 | 77.78 | 284.23 | 0.9760 | -217.1 | -194.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.18 | 4.54 | 5.32 | 11.00 | 14.10 | 263.38 | 78.85 | 283.59 | 0.9799 | -110.0 | -165.3 | |
| 0.00 | 0.91 | 0.00 | 2.13 | 13.82 | 262.86 | 78.33 | 283.30 | 0.9781 | -116.0 | -140.5 | |
| 0.00 | 1.64 | 0.00 | 3.91 | 14.36 | 263.23 | 78.70 | 283.86 | 0.9794 | -231.0 | -236.6 | |
| 0.00 | 1.00 | 0.00 | 2.24 | 14.07 | 262.39 | 77.86 | 283.55 | 0.9764 | -398.0 | -295.6 | |
| 4.00 | 9.45 | 8.49 | 20.00 | 15.29 | 261.63 | 77.10 | 284.79 | 0.9735 | -286.2 | -200.1 | |
| 0.00 | 1.27 | 0.00 | 2.60 | 15.04 | 261.06 | 76.53 | 284.53 | 0.9713 | -107.0 | -122.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
