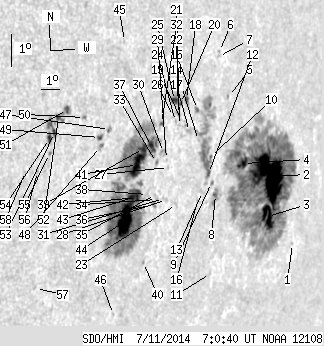

SDO HMI 2014-07-11 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 198.31 | 1163.72 | 183.54 | 1077.72 | -7.18 | 241.35 | 56.82 | 258.93 | 0.8466 | 115.8 | 92.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.69 | -9.43 | 246.34 | 61.81 | 257.33 | 0.8930 | 165.0 | 132.9 | |
| 78.67 | 628.82 | 79.67 | 629.45 | -7.22 | 244.29 | 59.76 | 259.44 | 0.8738 | 838.0 | 318.2 | |
| 18.35 | -2.00 | 18.79 | -2.00 | -8.47 | 244.47 | 59.94 | 258.06 | 0.8769 | 684.8 | 999999 | |
| 8.36 | -2.00 | 8.03 | -2.00 | -6.71 | 242.63 | 58.10 | 259.73 | 0.8589 | 957.7 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.75 | -4.57 | 241.44 | 56.91 | 262.02 | 0.8453 | 355.0 | 194.2 | |
| 0.00 | 1.09 | 0.00 | 0.98 | -3.15 | 240.79 | 56.26 | 263.61 | 0.8376 | 489.0 | 383.1 | |
| 0.00 | 0.82 | 0.00 | 0.74 | -3.30 | 240.75 | 56.22 | 263.42 | 0.8374 | 606.0 | 552.2 | |
| 1.36 | 10.17 | 1.26 | 9.43 | -7.59 | 241.19 | 56.66 | 258.45 | 0.8473 | 64.3 | 278.2 | |
| 0.55 | 1.82 | 0.50 | 1.67 | -7.20 | 240.89 | 56.36 | 258.85 | 0.8440 | -114.8 | -88.4 | |
| 0.64 | 73.49 | 0.58 | 66.12 | -6.38 | 240.69 | 56.16 | 259.77 | 0.8409 | 542.7 | 469.4 | |
| 0.00 | 0.73 | 0.00 | 0.69 | -10.07 | 241.50 | 56.97 | 255.64 | 0.8541 | 402.0 | 449.4 | |
| 1.54 | -10.00 | 1.41 | -10.00 | -6.91 | 240.67 | 56.14 | 259.15 | 0.8415 | 605.0 | 999999 | |
| 0.00 | 3.54 | 0.00 | 3.22 | -7.45 | 240.44 | 55.91 | 258.46 | 0.8402 | 280.0 | 203.3 | |
| 0.00 | 1.00 | 0.00 | 0.89 | -5.84 | 239.95 | 55.42 | 260.27 | 0.8331 | 268.0 | 302.3 | |
| 1.09 | -10.00 | 0.96 | -10.00 | -4.87 | 239.76 | 55.23 | 261.39 | 0.8299 | -232.5 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.57 | -7.72 | 240.22 | 55.69 | 258.10 | 0.8385 | -295.0 | -293.6 | |
| 0.00 | 2.63 | 0.00 | 2.31 | -5.53 | 239.42 | 54.89 | 260.54 | 0.8276 | 572.0 | 497.6 | |
| 1.54 | 4.72 | 1.34 | 4.10 | -4.53 | 239.13 | 54.60 | 261.70 | 0.8234 | -302.2 | -148.8 | |
| 0.00 | 1.00 | 0.00 | 0.86 | -5.14 | 238.94 | 54.41 | 260.93 | 0.8223 | -271.0 | -207.3 | |
| 1.18 | 9.18 | 1.02 | 7.87 | -4.64 | 238.83 | 54.30 | 261.52 | 0.8205 | -472.5 | -434.8 | |
| 0.00 | 0.73 | 0.00 | 0.63 | -5.32 | 238.86 | 54.33 | 260.70 | 0.8218 | -175.0 | -129.2 | |
| 0.00 | 1.91 | 0.00 | 1.64 | -4.97 | 238.76 | 54.23 | 261.10 | 0.8203 | -446.0 | -359.0 | |
| 0.00 | 1.54 | 0.00 | 1.36 | -7.77 | 239.09 | 54.56 | 257.80 | 0.8280 | -342.0 | -312.7 | |
| 0.00 | 0.91 | 0.00 | 0.78 | -5.18 | 238.63 | 54.10 | 260.83 | 0.8193 | -421.0 | -365.7 | |
| 3.54 | -20.00 | 3.03 | -20.00 | -4.52 | 238.50 | 53.97 | 261.60 | 0.8171 | -714.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.17 | -5.02 | 238.50 | 53.97 | 261.00 | 0.8178 | -391.0 | -403.3 | |
| 0.00 | 1.09 | 0.00 | 0.94 | -6.59 | 238.46 | 53.93 | 259.09 | 0.8199 | -354.0 | -216.4 | |
| 0.00 | 1.45 | 0.00 | 1.26 | -7.59 | 238.52 | 53.99 | 257.90 | 0.8222 | -244.0 | -208.1 | |
| 0.00 | 0.91 | 0.00 | 0.78 | -6.33 | 238.32 | 53.79 | 259.37 | 0.8180 | -247.0 | -200.2 | |
| 0.00 | 4.27 | 0.00 | 3.64 | -6.11 | 238.13 | 53.60 | 259.61 | 0.8158 | -392.0 | -302.3 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -7.55 | 238.36 | 53.83 | 257.92 | 0.8205 | -317.0 | -304.3 | |
| 0.82 | 2.18 | 0.69 | 1.84 | -5.20 | 237.90 | 53.37 | 260.67 | 0.8121 | -492.4 | -434.4 | |
| 0.45 | 1.82 | 0.38 | 1.54 | -6.40 | 237.81 | 53.28 | 259.19 | 0.8131 | -385.8 | -290.6 | |
| 0.00 | 2.00 | 0.00 | 1.71 | -7.56 | 238.00 | 53.47 | 257.83 | 0.8170 | 317.0 | 103.8 | |
| 0.00 | 0.64 | 0.00 | 0.54 | -7.40 | 237.92 | 53.39 | 258.00 | 0.8159 | -389.0 | -268.1 | |
| 0.64 | 2.36 | 0.54 | 2.02 | -7.71 | 237.92 | 53.39 | 257.63 | 0.8165 | -244.6 | -150.1 | |
| 5.36 | 135.99 | 4.50 | 112.43 | -5.89 | 237.48 | 52.94 | 259.75 | 0.8089 | -665.0 | -519.9 | |
| 0.00 | 2.18 | 0.00 | 1.84 | -7.37 | 237.50 | 52.97 | 257.94 | 0.8117 | -249.0 | -165.6 | |
| 5.18 | -37.00 | 4.30 | -37.00 | -5.92 | 237.07 | 52.54 | 259.62 | 0.8049 | -826.7 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.09 | -9.50 | 237.71 | 53.18 | 255.42 | 0.8180 | -310.0 | -259.6 | |
| 20.71 | -37.00 | 17.15 | -37.00 | -6.41 | 236.84 | 52.31 | 258.98 | 0.8033 | -887.7 | 999999 | |
| 3.36 | 216.21 | 2.81 | 178.64 | -7.44 | 237.00 | 52.47 | 257.75 | 0.8069 | -458.7 | -388.8 | |
| 3.54 | -42.00 | 2.94 | -42.00 | -7.42 | 236.74 | 52.21 | 257.71 | 0.8042 | -849.7 | 999999 | |
| 31.98 | -42.00 | 26.46 | -42.00 | -8.12 | 236.51 | 51.98 | 256.80 | 0.8033 | -977.2 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.65 | -2.56 | 235.81 | 51.28 | 263.59 | 0.7866 | -544.0 | -452.0 | |
| 0.00 | 0.91 | 0.00 | 0.76 | -11.06 | 236.54 | 52.01 | 253.23 | 0.8100 | -324.0 | -240.5 | |
| 0.00 | 2.73 | 0.00 | 2.17 | -5.24 | 235.30 | 50.77 | 260.11 | 0.7852 | 204.0 | 207.6 | |
| 0.00 | 2.91 | 0.00 | 2.30 | -5.74 | 234.92 | 50.39 | 259.40 | 0.7821 | 339.0 | 153.4 | |
| 1.36 | 2.54 | 1.08 | 2.01 | -5.46 | 234.84 | 50.31 | 259.73 | 0.7807 | 758.4 | 619.2 | |
| 0.00 | 1.18 | 0.00 | 0.92 | -4.80 | 234.05 | 49.52 | 260.41 | 0.7710 | -562.0 | -390.5 | |
| 2.18 | 28.34 | 1.66 | 21.40 | -4.51 | 233.23 | 48.70 | 260.62 | 0.7613 | -626.1 | -578.4 | |
| 1.73 | -51.00 | 1.30 | -51.00 | -4.74 | 232.83 | 48.30 | 260.24 | 0.7573 | -652.6 | 999999 | |
| 1.73 | -51.00 | 1.30 | -51.00 | -5.19 | 232.69 | 48.16 | 259.61 | 0.7566 | -577.0 | 999999 | |
| 2.45 | -51.00 | 1.84 | -51.00 | -5.36 | 232.48 | 47.95 | 259.34 | 0.7545 | -776.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.10 | -5.83 | 232.53 | 48.00 | 258.74 | 0.7561 | -516.0 | -450.1 | |
| 0.00 | 0.91 | 0.00 | 0.68 | -6.36 | 232.04 | 47.51 | 257.93 | 0.7517 | -608.0 | -535.9 | |
| 0.00 | 1.00 | 0.00 | 0.77 | -10.03 | 232.53 | 48.00 | 253.33 | 0.7661 | -509.0 | -503.3 | |
| 0.00 | 0.73 | 0.00 | 0.54 | -6.33 | 231.49 | 46.96 | 257.82 | 0.7454 | -479.0 | -457.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
