SDO HMI 2014-07-11 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.73 | 0.00 | 3.28 | -21.54 | 199.95 | 15.97 | 210.08 | 0.5052 | 111.6 | 27.8 | |
|
previous
or next observation for the same group /

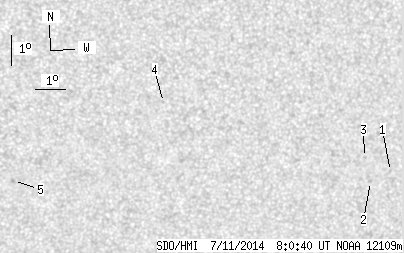

back to the solar disc SDO HMI 2014-07-11 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.38 | -21.94 | 205.40 | 21.41 | 218.07 | 0.5513 | 698.0 | 546.1 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -22.27 | 204.74 | 20.76 | 216.85 | 0.5490 | 624.0 | 493.2 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -21.44 | 204.41 | 20.42 | 217.40 | 0.5368 | 634.0 | 576.1 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -19.45 | 197.34 | 13.36 | 208.85 | 0.4532 | -609.0 | -452.7 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -21.99 | 192.54 | 8.56 | 197.53 | 0.4599 | -789.0 | -618.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
