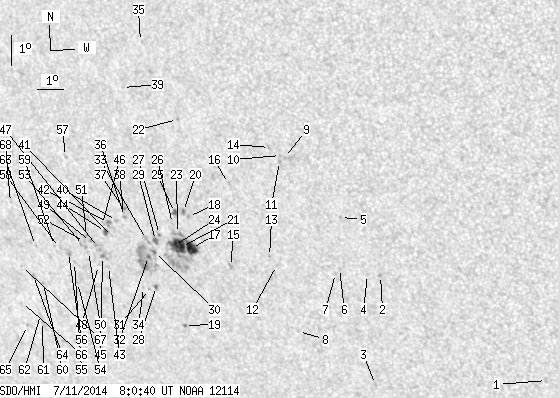

SDO HMI 2014-07-11 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.98 | 203.57 | 22.59 | 136.94 | -20.05 | 148.46 | -35.53 | 125.97 | 0.6759 | 270.8 | 69.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.21 | -24.09 | 162.12 | -21.86 | 143.86 | 0.5787 | -409.0 | -446.6 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -20.68 | 156.74 | -27.24 | 133.72 | 0.5948 | 749.0 | 606.8 | |
| 0.00 | 1.73 | 0.00 | 1.11 | -24.42 | 155.73 | -28.26 | 137.33 | 0.6383 | 84.0 | 79.3 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -20.66 | 156.26 | -27.72 | 133.23 | 0.5995 | 636.0 | 482.8 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -18.79 | 155.64 | -28.35 | 130.11 | 0.5900 | 738.0 | 631.8 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -20.49 | 155.26 | -28.72 | 132.04 | 0.6083 | 719.0 | 623.1 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -20.67 | 155.08 | -28.91 | 132.09 | 0.6117 | 489.0 | 436.2 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -22.69 | 153.21 | -30.77 | 132.95 | 0.6472 | 422.0 | 386.0 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -16.88 | 153.92 | -30.06 | 125.88 | 0.5938 | 790.0 | 615.9 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -16.82 | 153.79 | -30.20 | 125.68 | 0.5949 | 847.0 | 742.0 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -17.02 | 153.72 | -30.27 | 125.90 | 0.5972 | 691.0 | 533.4 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -20.48 | 152.90 | -31.09 | 129.89 | 0.6327 | 586.0 | 489.7 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -20.18 | 152.70 | -31.29 | 129.34 | 0.6325 | 576.0 | 451.8 | |
| 0.00 | 1.91 | 0.00 | 1.18 | -16.57 | 153.43 | -30.56 | 125.02 | 0.5972 | 633.0 | 558.5 | |
| 0.00 | 2.18 | 0.00 | 1.42 | -20.58 | 151.10 | -32.88 | 128.54 | 0.6520 | 649.0 | 596.9 | |
| 0.00 | 1.73 | 0.00 | 1.09 | -17.81 | 151.65 | -32.33 | 125.31 | 0.6262 | 427.0 | 269.8 | |
| 10.36 | 64.50 | 6.83 | 42.85 | -20.03 | 149.72 | -34.27 | 126.76 | 0.6626 | 944.8 | 216.8 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -18.97 | 149.86 | -34.13 | 125.48 | 0.6538 | 891.0 | 785.5 | |
| 0.36 | 1.36 | 0.25 | 0.93 | -22.66 | 148.71 | -35.27 | 129.31 | 0.6909 | -566.8 | -449.5 | |
| 0.45 | 2.27 | 0.30 | 1.48 | -18.81 | 149.70 | -34.28 | 125.16 | 0.6544 | 966.6 | 839.7 | |
| 8.72 | -17.00 | 5.78 | -17.00 | -19.98 | 149.33 | -34.65 | 126.42 | 0.6663 | 841.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -15.79 | 150.11 | -33.87 | 121.33 | 0.6301 | 797.0 | 681.5 | |
| 0.00 | 4.63 | 0.00 | 3.06 | -19.55 | 149.28 | -34.70 | 125.82 | 0.6639 | 781.0 | 665.5 | |
| 6.72 | -17.00 | 4.47 | -17.00 | -19.96 | 149.06 | -34.92 | 126.19 | 0.6690 | 680.8 | 999999 | |
| 1.36 | 3.09 | 0.89 | 2.03 | -18.85 | 149.34 | -34.65 | 124.95 | 0.6587 | 798.8 | 568.0 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -19.22 | 149.17 | -34.82 | 125.31 | 0.6629 | 496.0 | 443.8 | |
| 0.00 | 1.36 | 0.00 | 0.91 | -19.61 | 148.56 | -35.43 | 125.38 | 0.6720 | 694.0 | 626.7 | |
| 0.64 | 1.73 | 0.43 | 1.18 | -21.37 | 147.96 | -36.03 | 127.18 | 0.6898 | 612.9 | 490.4 | |
| 1.54 | 3.72 | 1.03 | 2.50 | -19.82 | 148.34 | -35.64 | 125.50 | 0.6756 | 722.5 | 554.2 | |
| 0.55 | 39.88 | 0.37 | 27.04 | -20.23 | 148.19 | -35.79 | 125.91 | 0.6798 | 690.7 | 29.3 | |
| 0.00 | 1.18 | 0.00 | 0.81 | -21.49 | 147.64 | -36.35 | 127.10 | 0.6937 | 376.0 | 296.5 | |
| 0.55 | -30.00 | 0.37 | -30.00 | -20.37 | 147.91 | -36.07 | 125.90 | 0.6836 | 559.7 | 999999 | |
| 0.00 | 3.63 | 0.00 | 2.45 | -19.80 | 147.99 | -36.00 | 125.22 | 0.6792 | 489.0 | 415.4 | |
| 0.00 | 0.82 | 0.00 | 0.56 | -21.43 | 147.41 | -36.57 | 126.87 | 0.6956 | 285.0 | 290.3 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -13.32 | 149.14 | -34.84 | 117.14 | 0.6269 | 477.0 | 534.2 | |
| 0.00 | 1.54 | 0.00 | 1.04 | -19.07 | 147.29 | -36.69 | 123.81 | 0.6819 | 629.0 | 570.9 | |
| 0.00 | 2.00 | 0.00 | 1.35 | -18.77 | 147.33 | -36.65 | 123.45 | 0.6797 | 545.0 | 506.7 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -18.97 | 147.28 | -36.70 | 123.67 | 0.6815 | 554.0 | 481.0 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -14.83 | 148.17 | -35.81 | 118.68 | 0.6470 | 654.0 | 526.0 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -19.22 | 146.93 | -37.05 | 123.76 | 0.6867 | 626.0 | 538.8 | |
| 0.00 | 0.64 | 0.00 | 0.44 | -19.76 | 146.62 | -37.36 | 124.25 | 0.6932 | 214.0 | 173.4 | |
| 0.64 | 3.45 | 0.43 | 2.36 | -19.30 | 146.58 | -37.40 | 123.64 | 0.6908 | 637.0 | 525.7 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -20.78 | 146.16 | -37.82 | 125.23 | 0.7041 | -575.0 | -545.3 | |
| 1.64 | 3.27 | 1.12 | 2.25 | -19.61 | 146.38 | -37.61 | 123.89 | 0.6948 | 385.2 | 193.7 | |
| 0.45 | 4.63 | 0.32 | 3.21 | -20.45 | 146.01 | -37.97 | 124.72 | 0.7037 | -726.2 | -524.1 | |
| 0.00 | 1.27 | 0.00 | 0.87 | -19.34 | 146.33 | -37.66 | 123.53 | 0.6938 | 214.0 | 222.9 | |
| 0.00 | 5.00 | 0.00 | 3.47 | -20.16 | 145.93 | -38.05 | 124.30 | 0.7027 | -540.0 | -697.3 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -20.76 | 145.75 | -38.23 | 124.94 | 0.7082 | -435.0 | -410.5 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -19.97 | 145.66 | -38.33 | 123.89 | 0.7044 | -752.0 | -649.5 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -20.31 | 145.47 | -38.51 | 124.20 | 0.7083 | -521.0 | -383.2 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -19.77 | 145.55 | -38.44 | 123.58 | 0.7044 | -831.0 | -690.1 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -19.98 | 145.40 | -38.58 | 123.74 | 0.7071 | -794.0 | -719.9 | |
| 0.00 | 3.27 | 0.00 | 2.29 | -20.12 | 145.32 | -38.66 | 123.86 | 0.7087 | -754.0 | -700.8 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -21.38 | 144.68 | -39.31 | 125.02 | 0.7226 | -580.0 | -507.7 | |
| 0.00 | 1.36 | 0.00 | 0.97 | -20.71 | 144.76 | -39.22 | 124.25 | 0.7178 | -702.0 | -533.7 | |
| 0.00 | 4.27 | 0.00 | 3.03 | -20.38 | 144.61 | -39.37 | 123.75 | 0.7175 | -682.0 | -664.9 | |
| 0.00 | 1.54 | 0.00 | 1.06 | -17.18 | 145.38 | -38.60 | 120.15 | 0.6916 | -592.0 | -522.4 | |
| 0.00 | 1.18 | 0.00 | 0.84 | -20.23 | 144.28 | -39.70 | 123.36 | 0.7200 | -666.0 | -667.6 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -20.17 | 144.08 | -39.90 | 123.18 | 0.7216 | -503.0 | -483.5 | |
| 0.00 | 1.09 | 0.00 | 0.80 | -21.48 | 143.18 | -40.80 | 124.25 | 0.7378 | -774.0 | -601.1 | |
| 0.00 | 0.82 | 0.00 | 0.61 | -22.79 | 142.67 | -41.31 | 125.50 | 0.7499 | -526.0 | -413.7 | |
| 0.00 | 1.82 | 0.00 | 1.35 | -22.55 | 142.67 | -41.31 | 125.22 | 0.7486 | -562.0 | -463.5 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -20.21 | 143.26 | -40.72 | 122.74 | 0.7302 | -482.0 | -352.0 | |
| 0.00 | 1.54 | 0.00 | 1.13 | -21.23 | 142.84 | -41.15 | 123.74 | 0.7398 | -557.0 | -467.9 | |
| 0.00 | 1.00 | 0.00 | 0.76 | -22.96 | 141.94 | -42.04 | 125.28 | 0.7576 | -563.0 | -445.3 | |
| 0.00 | 0.82 | 0.00 | 0.61 | -22.18 | 141.97 | -42.02 | 124.38 | 0.7532 | -460.0 | -342.0 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -20.95 | 142.41 | -41.58 | 123.15 | 0.7425 | -343.0 | -353.0 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -18.82 | 142.62 | -41.36 | 120.65 | 0.7294 | -583.0 | -559.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
