SDO HMI 2014-07-11 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.89 | 170.61 | 45.15 | 285.82 | -19.45 | 253.61 | 70.17 | 248.23 | 0.9565 | 366.1 | 93.9 | |
|
previous
or next observation for the same group /

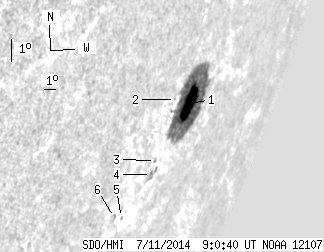

back to the solar disc SDO HMI 2014-07-11 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.89 | 158.34 | 45.15 | 266.41 | -19.29 | 253.73 | 70.29 | 248.42 | 0.9569 | 386.2 | 89.9 | |
| 0.00 | 0.45 | 0.00 | 0.71 | -19.05 | 252.20 | 68.76 | 248.37 | 0.9491 | 611.0 | 575.0 | |
| 0.00 | 1.73 | 0.00 | 2.75 | -21.07 | 252.29 | 68.86 | 246.31 | 0.9518 | 400.0 | 307.0 | |
| 0.00 | 7.18 | 0.00 | 11.58 | -21.54 | 252.41 | 68.97 | 245.85 | 0.9528 | 534.0 | 247.4 | |
| 0.00 | 0.91 | 0.00 | 1.40 | -22.89 | 251.10 | 67.66 | 244.19 | 0.9480 | -218.0 | -206.1 | |
| 0.00 | 2.00 | 0.00 | 2.97 | -22.85 | 250.45 | 67.01 | 244.09 | 0.9446 | -405.0 | -369.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
