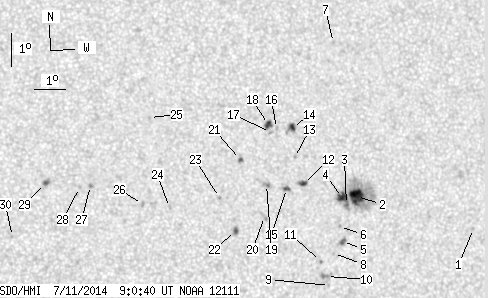

SDO HMI 2014-07-11 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.60 | 155.50 | 18.98 | 82.82 | 6.00 | 204.65 | 21.22 | 276.55 | 0.3639 | -318.5 | -254.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.65 | 4.76 | 210.06 | 26.62 | 272.74 | 0.4489 | -624.0 | -570.8 | |
| 14.63 | 86.66 | 7.86 | 46.56 | 5.85 | 206.16 | 22.73 | 275.72 | 0.3879 | -1122.2 | -403.6 | |
| 0.45 | -2.00 | 0.24 | -2.00 | 5.62 | 205.82 | 22.38 | 275.16 | 0.3822 | -992.2 | 999999 | |
| 6.27 | -2.00 | 3.36 | -2.00 | 5.84 | 205.70 | 22.26 | 275.75 | 0.3804 | -1209.8 | 999999 | |
| 1.27 | 3.72 | 0.68 | 1.99 | 4.50 | 205.65 | 22.21 | 272.21 | 0.3787 | -1015.1 | -715.3 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 4.96 | 205.56 | 22.13 | 273.44 | 0.3775 | -748.0 | -685.4 | |
| 0.00 | 1.73 | 0.00 | 0.93 | 10.58 | 205.68 | 22.25 | 287.93 | 0.3928 | -775.0 | -620.7 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 4.14 | 205.34 | 21.90 | 271.26 | 0.3737 | -696.0 | -547.8 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 3.17 | 205.18 | 21.74 | 268.63 | 0.3716 | -556.0 | -482.9 | |
| 0.00 | 5.36 | 0.00 | 2.86 | 3.44 | 205.09 | 21.65 | 269.37 | 0.3699 | -1051.0 | -845.3 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 3.91 | 204.90 | 21.47 | 270.62 | 0.3667 | -826.0 | -701.4 | |
| 2.45 | 5.63 | 1.30 | 2.99 | 6.30 | 204.43 | 20.99 | 277.27 | 0.3605 | -970.2 | -685.1 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 7.10 | 204.17 | 20.74 | 279.58 | 0.3578 | -544.0 | -492.2 | |
| 2.54 | 6.90 | 1.35 | 3.66 | 8.02 | 204.15 | 20.72 | 282.12 | 0.3598 | 761.8 | 79.0 | |
| 1.36 | 2.63 | 0.72 | 1.39 | 6.16 | 203.87 | 20.43 | 277.03 | 0.3512 | -965.8 | -837.1 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 8.00 | 203.63 | 20.19 | 282.33 | 0.3514 | 566.0 | 490.6 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 7.88 | 203.42 | 19.99 | 282.10 | 0.3478 | 833.0 | 668.3 | |
| 3.54 | 5.54 | 1.87 | 2.93 | 8.13 | 203.37 | 19.94 | 282.83 | 0.3477 | 1064.5 | 790.9 | |
| 0.00 | 3.72 | 0.00 | 1.96 | 6.30 | 203.22 | 19.78 | 277.61 | 0.3409 | -1042.0 | -866.2 | |
| 0.00 | 3.82 | 0.00 | 2.01 | 5.32 | 203.12 | 19.68 | 274.76 | 0.3380 | -766.0 | -655.6 | |
| 1.00 | 2.27 | 0.52 | 1.19 | 7.08 | 202.41 | 18.97 | 280.23 | 0.3292 | 991.5 | 796.0 | |
| 1.09 | 3.27 | 0.57 | 1.71 | 4.92 | 202.16 | 18.73 | 273.66 | 0.3219 | 1029.5 | 846.5 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 5.94 | 201.68 | 18.25 | 276.97 | 0.3151 | 901.0 | 810.4 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 5.67 | 200.07 | 16.63 | 276.56 | 0.2879 | 699.0 | 637.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 8.43 | 199.53 | 16.09 | 286.39 | 0.2871 | 843.0 | 634.0 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 5.78 | 199.21 | 15.77 | 277.24 | 0.2738 | 792.0 | 650.6 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 6.39 | 197.57 | 14.14 | 280.39 | 0.2479 | 1030.0 | 868.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 6.33 | 197.23 | 13.79 | 280.39 | 0.2419 | 870.0 | 724.1 | |
| 1.00 | 4.27 | 0.51 | 2.17 | 6.47 | 196.16 | 12.72 | 281.77 | 0.2245 | 1074.7 | 841.2 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 4.87 | 195.09 | 11.65 | 274.95 | 0.2029 | 771.0 | 704.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
