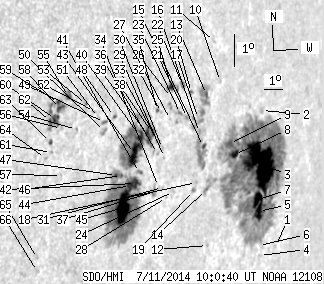

SDO HMI 2014-07-11 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 217.31 | 1088.89 | 210.44 | 1056.75 | -7.08 | 241.33 | 58.44 | 259.34 | 0.8607 | 134.9 | 72.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 1.46 | -9.88 | 246.06 | 63.17 | 257.07 | 0.9038 | -372.0 | -325.1 | |
| 0.00 | 2.82 | 0.00 | 2.95 | -5.53 | 244.01 | 61.12 | 261.56 | 0.8830 | 182.0 | 180.5 | |
| 86.21 | 581.01 | 91.87 | 613.60 | -7.22 | 244.29 | 61.40 | 259.71 | 0.8872 | 769.1 | 274.9 | |
| 0.00 | 1.00 | 0.00 | 1.11 | -10.10 | 245.04 | 62.16 | 256.64 | 0.8965 | -236.0 | -182.3 | |
| 9.90 | -3.00 | 10.73 | -3.00 | -8.70 | 244.54 | 61.65 | 258.11 | 0.8909 | 532.3 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.70 | -9.78 | 244.87 | 61.98 | 256.97 | 0.8948 | -26.0 | -71.0 | |
| 10.72 | -3.00 | 11.52 | -3.00 | -8.31 | 244.37 | 61.48 | 258.51 | 0.8891 | 870.3 | 999999 | |
| 5.27 | -3.00 | 5.31 | -3.00 | -6.80 | 242.56 | 59.67 | 259.89 | 0.8725 | 966.4 | 999999 | |
| 6.00 | -3.00 | 5.96 | -3.00 | -6.44 | 242.18 | 59.30 | 260.24 | 0.8689 | 650.5 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.83 | -4.48 | 241.33 | 58.45 | 262.37 | 0.8592 | 100.0 | 138.2 | |
| 0.00 | 1.09 | 0.00 | 1.03 | -3.22 | 240.85 | 57.96 | 263.76 | 0.8534 | 556.0 | 473.7 | |
| 0.00 | 1.18 | 0.00 | 1.17 | -9.57 | 241.59 | 58.70 | 256.57 | 0.8683 | 555.0 | 450.5 | |
| 1.45 | 17.71 | 1.37 | 16.65 | -4.83 | 240.56 | 57.68 | 261.84 | 0.8527 | 538.0 | 402.0 | |
| 0.64 | 12.08 | 0.62 | 11.74 | -7.80 | 241.09 | 58.20 | 258.49 | 0.8613 | 365.4 | 320.7 | |
| 1.45 | 24.34 | 1.38 | 23.11 | -6.44 | 240.64 | 57.76 | 259.98 | 0.8555 | 638.3 | 586.9 | |
| 0.00 | 2.54 | 0.00 | 2.39 | -5.99 | 240.33 | 57.45 | 260.45 | 0.8521 | 391.0 | 372.9 | |
| 0.00 | 15.17 | 0.00 | 14.19 | -5.55 | 240.21 | 57.32 | 260.94 | 0.8504 | 158.0 | 285.7 | |
| 0.00 | 1.36 | 0.00 | 1.29 | -7.54 | 240.45 | 57.56 | 258.67 | 0.8554 | 270.0 | 224.2 | |
| 0.45 | 2.27 | 0.43 | 2.15 | -7.78 | 240.33 | 57.44 | 258.37 | 0.8546 | -377.0 | -251.4 | |
| 0.55 | 1.82 | 0.50 | 1.67 | -4.72 | 239.70 | 56.81 | 261.83 | 0.8446 | -273.7 | -174.6 | |
| 0.00 | 3.27 | 0.00 | 3.01 | -5.48 | 239.57 | 56.69 | 260.92 | 0.8445 | 523.0 | 459.2 | |
| 1.91 | 3.91 | 1.73 | 3.54 | -4.44 | 239.16 | 56.27 | 262.08 | 0.8393 | -290.8 | -143.7 | |
| 0.64 | 7.45 | 0.58 | 6.71 | -5.33 | 239.16 | 56.28 | 261.02 | 0.8405 | 2.4 | -272.4 | |
| 0.00 | 1.91 | 0.00 | 1.75 | -7.75 | 239.19 | 56.30 | 258.19 | 0.8443 | -370.0 | -253.0 | |
| 4.18 | 8.36 | 3.72 | 7.47 | -4.47 | 238.56 | 55.67 | 261.95 | 0.8336 | -674.4 | -367.8 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -4.81 | 238.60 | 55.71 | 261.55 | 0.8344 | -289.0 | -371.3 | |
| 0.00 | 1.00 | 0.00 | 0.90 | -5.49 | 238.63 | 55.75 | 260.75 | 0.8357 | -289.0 | -232.5 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -7.91 | 238.83 | 55.94 | 257.92 | 0.8413 | -242.0 | -187.0 | |
| 0.00 | 0.55 | 0.00 | 0.49 | -6.65 | 238.48 | 55.60 | 259.34 | 0.8360 | -229.0 | -161.5 | |
| 0.00 | 1.18 | 0.00 | 1.05 | -6.36 | 238.33 | 55.44 | 259.65 | 0.8341 | -161.0 | -120.2 | |
| 0.00 | 0.55 | 0.00 | 0.49 | -7.59 | 238.54 | 55.66 | 258.25 | 0.8381 | -200.0 | -183.2 | |
| 0.00 | 0.91 | 0.00 | 0.80 | -5.24 | 238.11 | 55.22 | 260.95 | 0.8304 | -327.0 | -308.9 | |
| 0.00 | 2.82 | 0.00 | 2.50 | -6.16 | 238.08 | 55.19 | 259.84 | 0.8314 | -265.0 | -219.0 | |
| 0.00 | 0.91 | 0.00 | 0.81 | -7.54 | 238.32 | 55.43 | 258.25 | 0.8359 | -235.0 | -190.9 | |
| 0.64 | 1.64 | 0.56 | 1.44 | -5.17 | 237.88 | 55.00 | 261.00 | 0.8281 | -499.6 | -401.6 | |
| 0.00 | 1.09 | 0.00 | 0.97 | -6.51 | 238.08 | 55.19 | 259.44 | 0.8320 | -182.0 | -138.7 | |
| 0.00 | 4.54 | 0.00 | 4.06 | -7.69 | 238.13 | 55.24 | 258.04 | 0.8343 | 308.0 | -61.9 | |
| 2.54 | 323.93 | 2.23 | 278.58 | -5.83 | 237.71 | 54.82 | 260.17 | 0.8274 | -351.8 | -404.5 | |
| 7.90 | -38.00 | 6.90 | -38.00 | -5.92 | 237.50 | 54.62 | 260.03 | 0.8255 | -581.1 | 999999 | |
| 5.54 | -38.00 | 4.79 | -38.00 | -5.92 | 237.08 | 54.19 | 259.94 | 0.8214 | -827.6 | 999999 | |
| 0.00 | 3.09 | 0.00 | 2.69 | -7.04 | 237.20 | 54.32 | 258.62 | 0.8244 | -431.0 | -368.9 | |
| 3.09 | -38.00 | 2.68 | -38.00 | -7.37 | 237.05 | 54.16 | 258.19 | 0.8235 | -485.8 | 999999 | |
| 17.62 | -38.00 | 15.17 | -38.00 | -6.43 | 236.84 | 53.96 | 259.28 | 0.8199 | -914.5 | 999999 | |
| 5.00 | -38.00 | 4.32 | -38.00 | -7.42 | 236.80 | 53.91 | 258.08 | 0.8211 | -727.9 | 999999 | |
| 27.71 | -38.00 | 23.84 | -38.00 | -8.09 | 236.55 | 53.67 | 257.22 | 0.8200 | -994.0 | 999999 | |
| 0.91 | -38.00 | 0.77 | -38.00 | -7.08 | 236.27 | 53.38 | 258.38 | 0.8153 | -788.3 | 999999 | |
| 1.54 | -38.00 | 1.31 | -38.00 | -7.07 | 236.01 | 53.12 | 258.34 | 0.8127 | -868.7 | 999999 | |
| 0.64 | 1.45 | 0.53 | 1.21 | -5.22 | 235.64 | 52.76 | 260.52 | 0.8059 | 365.0 | 386.4 | |
| 0.73 | 2.45 | 0.60 | 2.02 | -5.38 | 235.16 | 52.27 | 260.23 | 0.8012 | 714.8 | 628.1 | |
| 0.00 | 3.63 | 0.00 | 3.00 | -5.66 | 235.19 | 52.30 | 259.89 | 0.8020 | 195.0 | 205.1 | |
| 0.00 | 1.09 | 0.00 | 0.89 | -5.21 | 234.83 | 51.95 | 260.38 | 0.7976 | 302.0 | 394.7 | |
| 0.00 | 1.18 | 0.00 | 0.96 | -5.01 | 234.61 | 51.73 | 260.58 | 0.7949 | 701.0 | 546.5 | |
| 0.00 | 1.18 | 0.00 | 0.95 | -4.77 | 234.19 | 51.30 | 260.80 | 0.7901 | -137.0 | -210.8 | |
| 0.00 | 1.27 | 0.00 | 1.02 | -5.52 | 233.78 | 50.90 | 259.78 | 0.7871 | 489.0 | 419.6 | |
| 2.27 | 5.45 | 1.79 | 4.30 | -4.47 | 233.29 | 50.40 | 261.00 | 0.7800 | -527.1 | -410.8 | |
| 0.00 | 1.45 | 0.00 | 1.14 | -5.45 | 233.05 | 50.16 | 259.71 | 0.7791 | 350.0 | 257.1 | |
| 0.00 | 0.82 | 0.00 | 0.65 | -6.91 | 233.24 | 50.35 | 257.91 | 0.7840 | -474.0 | -380.3 | |
| 3.09 | 26.34 | 2.42 | 20.55 | -4.83 | 232.93 | 50.05 | 260.48 | 0.7768 | -495.8 | -588.6 | |
| 1.45 | -58.00 | 1.14 | -58.00 | -4.63 | 232.82 | 49.93 | 260.70 | 0.7752 | -779.8 | 999999 | |
| 4.91 | -58.00 | 3.83 | -58.00 | -5.15 | 232.73 | 49.84 | 260.02 | 0.7751 | -529.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.78 | -6.17 | 232.66 | 49.77 | 258.71 | 0.7763 | -466.0 | -346.9 | |
| 1.36 | -58.00 | 1.06 | -58.00 | -5.20 | 232.50 | 49.61 | 259.91 | 0.7727 | -893.5 | 999999 | |
| 1.00 | 2.36 | 0.78 | 1.84 | -5.85 | 232.57 | 49.68 | 259.09 | 0.7747 | -619.4 | -492.1 | |
| 0.00 | 1.00 | 0.00 | 0.78 | -6.34 | 232.39 | 49.51 | 258.43 | 0.7737 | -616.0 | -539.5 | |
| 0.00 | 1.00 | 0.00 | 0.79 | -9.45 | 232.52 | 49.63 | 254.53 | 0.7820 | -575.0 | -460.0 | |
| 0.00 | 1.36 | 0.00 | 1.08 | -9.87 | 232.60 | 49.71 | 254.04 | 0.7839 | -609.0 | -490.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
