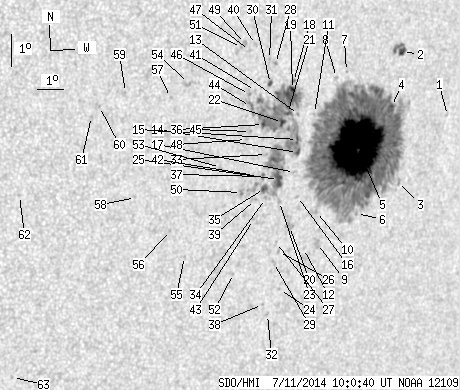

SDO HMI 2014-07-11 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 215.65 | 1249.71 | 140.47 | 807.79 | -8.00 | 221.16 | 38.27 | 252.56 | 0.6450 | 825.3 | 316.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.69 | -7.23 | 225.52 | 42.63 | 255.34 | 0.6968 | 426.0 | 344.1 | |
| 3.45 | 12.08 | 2.28 | 7.98 | -5.15 | 223.47 | 40.58 | 257.66 | 0.6655 | 680.3 | 658.8 | |
| 0.00 | 2.82 | 0.00 | 1.90 | -9.19 | 223.74 | 40.85 | 251.91 | 0.6816 | -250.0 | -250.8 | |
| 2.36 | 900.86 | 1.57 | 588.99 | -6.83 | 223.17 | 40.29 | 255.09 | 0.6667 | -261.7 | 376.3 | |
| 186.31 | -4.00 | 121.86 | -4.00 | -8.02 | 221.94 | 39.05 | 252.87 | 0.6551 | 1415.1 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.14 | -10.12 | 222.17 | 39.28 | 249.92 | 0.6660 | -406.0 | -194.8 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -5.67 | 221.28 | 38.39 | 256.16 | 0.6388 | -341.0 | -312.5 | |
| 0.00 | 1.54 | 0.00 | 0.99 | -5.83 | 220.90 | 38.02 | 255.76 | 0.6343 | -372.0 | -239.9 | |
| 0.00 | 6.09 | 0.00 | 3.97 | -11.00 | 220.75 | 37.86 | 247.97 | 0.6522 | 555.0 | 471.1 | |
| 0.00 | 1.82 | 0.00 | 1.18 | -9.99 | 220.57 | 37.68 | 249.36 | 0.6455 | 135.0 | 181.9 | |
| 0.00 | 2.00 | 0.00 | 1.27 | -6.91 | 220.14 | 37.25 | 253.80 | 0.6280 | 476.0 | 419.1 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -11.14 | 220.22 | 37.33 | 247.50 | 0.6463 | -180.0 | -169.3 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -6.92 | 219.52 | 36.64 | 253.53 | 0.6200 | 621.0 | 535.1 | |
| 1.91 | 242.18 | 1.21 | 151.60 | -8.10 | 219.60 | 36.71 | 251.73 | 0.6255 | 1064.9 | 358.4 | |
| 1.64 | -14.00 | 1.03 | -14.00 | -7.70 | 219.56 | 36.67 | 252.34 | 0.6234 | 838.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -9.48 | 219.76 | 36.87 | 249.71 | 0.6332 | 431.0 | 444.3 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -8.72 | 219.55 | 36.67 | 250.76 | 0.6274 | 243.0 | 171.1 | |
| 0.00 | 1.73 | 0.00 | 1.08 | -5.89 | 219.25 | 36.36 | 255.04 | 0.6126 | -591.0 | -552.8 | |
| 2.45 | -14.00 | 1.53 | -14.00 | -6.13 | 219.23 | 36.34 | 254.64 | 0.6132 | -578.6 | 999999 | |
| 0.00 | 5.90 | 0.00 | 3.78 | -10.42 | 219.57 | 36.68 | 248.22 | 0.6350 | -79.0 | -88.0 | |
| 1.82 | -14.00 | 1.14 | -14.00 | -6.87 | 219.10 | 36.21 | 253.42 | 0.6142 | 780.6 | 999999 | |
| 3.27 | -14.00 | 2.05 | -14.00 | -7.14 | 218.93 | 36.05 | 252.92 | 0.6130 | 1039.6 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.50 | -9.61 | 219.08 | 36.19 | 249.18 | 0.6252 | 254.0 | 186.5 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -12.40 | 219.48 | 36.59 | 245.26 | 0.6433 | -524.0 | -387.6 | |
| 7.27 | -14.00 | 4.58 | -14.00 | -8.92 | 218.96 | 36.07 | 250.17 | 0.6206 | 432.5 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.16 | -11.19 | 219.25 | 36.37 | 246.90 | 0.6346 | -682.0 | -527.5 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -10.90 | 219.14 | 36.25 | 247.27 | 0.6318 | -626.0 | -386.2 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -5.30 | 218.52 | 35.64 | 255.69 | 0.6009 | -550.0 | -448.6 | |
| 0.00 | 2.45 | 0.00 | 1.57 | -11.53 | 219.11 | 36.22 | 246.32 | 0.6345 | -669.0 | -515.2 | |
| 1.36 | 2.91 | 0.84 | 1.80 | -5.91 | 218.38 | 35.49 | 254.64 | 0.6011 | -757.5 | -594.3 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -5.17 | 218.29 | 35.40 | 255.82 | 0.5973 | -607.0 | -516.8 | |
| 0.00 | 1.91 | 0.00 | 1.23 | -13.18 | 219.14 | 36.26 | 243.94 | 0.6432 | -483.0 | -383.6 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -8.11 | 218.42 | 35.53 | 251.15 | 0.6101 | 488.0 | 466.0 | |
| 0.00 | 1.45 | 0.00 | 0.91 | -9.49 | 218.53 | 35.64 | 249.07 | 0.6176 | -385.0 | -278.8 | |
| 2.36 | -14.00 | 1.48 | -14.00 | -9.18 | 218.46 | 35.57 | 249.52 | 0.6152 | -592.4 | 999999 | |
| 1.45 | -14.00 | 0.90 | -14.00 | -7.17 | 218.21 | 35.33 | 252.54 | 0.6036 | -142.6 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.65 | -8.80 | 218.38 | 35.49 | 250.06 | 0.6125 | -507.0 | -465.0 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -12.85 | 218.89 | 36.01 | 244.27 | 0.6385 | -595.0 | -485.6 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -9.51 | 218.15 | 35.27 | 248.85 | 0.6128 | -523.0 | -509.6 | |
| 0.00 | 1.73 | 0.00 | 1.06 | -4.68 | 217.73 | 34.85 | 256.39 | 0.5881 | -523.0 | -485.8 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -6.10 | 217.83 | 34.94 | 254.09 | 0.5943 | -620.0 | -495.0 | |
| 0.00 | 1.91 | 0.00 | 1.19 | -8.75 | 218.03 | 35.14 | 249.96 | 0.6078 | -522.0 | -443.3 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -10.13 | 218.15 | 35.27 | 247.88 | 0.6157 | -636.0 | -549.0 | |
| 0.00 | 7.90 | 0.00 | 4.86 | -6.59 | 217.68 | 34.79 | 253.23 | 0.5942 | -565.0 | -542.0 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -7.37 | 217.74 | 34.86 | 252.00 | 0.5982 | -447.0 | -360.3 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -6.22 | 217.61 | 34.72 | 253.81 | 0.5919 | -864.0 | -729.4 | |
| 0.00 | 1.73 | 0.00 | 1.05 | -4.86 | 217.52 | 34.63 | 256.02 | 0.5858 | -710.0 | -519.9 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -7.61 | 217.61 | 34.73 | 251.55 | 0.5975 | -497.0 | -378.3 | |
| 0.00 | 2.63 | 0.00 | 1.60 | -4.63 | 217.36 | 34.47 | 256.32 | 0.5828 | -808.0 | -652.4 | |
| 0.00 | 3.18 | 0.00 | 1.97 | -9.27 | 217.60 | 34.71 | 248.92 | 0.6045 | -775.0 | -710.8 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -4.75 | 217.22 | 34.33 | 256.07 | 0.5812 | -741.0 | -604.5 | |
| 0.00 | 0.55 | 0.00 | 0.34 | -11.81 | 217.62 | 34.73 | 245.03 | 0.6174 | -669.0 | -612.3 | |
| 0.00 | 2.27 | 0.00 | 1.39 | -8.45 | 216.72 | 33.84 | 249.74 | 0.5893 | -662.0 | -533.7 | |
| 0.00 | 4.00 | 0.00 | 2.38 | -5.79 | 215.33 | 32.45 | 253.46 | 0.5589 | -564.0 | -630.1 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -11.20 | 215.70 | 32.81 | 244.76 | 0.5899 | -595.0 | -484.2 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -10.36 | 215.08 | 32.19 | 245.69 | 0.5773 | -684.0 | -504.5 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -6.20 | 214.71 | 31.82 | 252.43 | 0.5519 | -588.0 | -524.7 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -9.27 | 213.69 | 30.81 | 246.56 | 0.5530 | -665.0 | -415.7 | |
| 0.00 | 0.55 | 0.00 | 0.32 | -5.98 | 213.08 | 30.19 | 251.92 | 0.5282 | -695.0 | -587.7 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -6.38 | 212.18 | 29.30 | 250.66 | 0.5174 | -673.0 | -555.4 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -6.68 | 211.92 | 29.04 | 249.94 | 0.5152 | -647.0 | -520.9 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -9.06 | 209.58 | 26.70 | 243.83 | 0.4963 | -672.0 | -516.5 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -14.84 | 209.96 | 27.07 | 234.41 | 0.5430 | -630.0 | -485.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
