SDO HMI 2014-07-11 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.62 | 147.43 | 20.68 | 78.71 | 5.97 | 204.50 | 21.62 | 276.39 | 0.3703 | -299.9 | -181.3 | |
|
previous
or next observation for the same group /

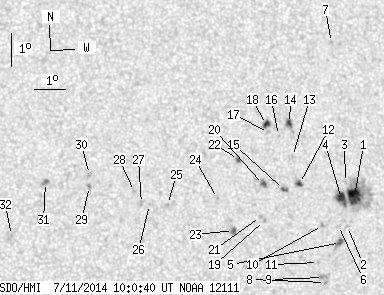

back to the solar disc SDO HMI 2014-07-11 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.62 | 77.49 | 8.97 | 41.81 | 5.84 | 206.18 | 23.29 | 275.60 | 0.3969 | -1085.6 | -372.8 | |
| 0.00 | 1.82 | 0.00 | 0.98 | 4.94 | 205.91 | 23.02 | 273.32 | 0.3919 | -381.0 | -273.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 6.28 | 205.90 | 23.01 | 276.75 | 0.3929 | -379.0 | -330.6 | |
| 8.18 | -1.00 | 4.40 | -1.00 | 5.79 | 205.74 | 22.86 | 275.54 | 0.3899 | -1161.9 | 999999 | |
| 1.91 | 5.09 | 1.02 | 2.73 | 4.45 | 205.66 | 22.77 | 272.09 | 0.3878 | -992.0 | -736.7 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 4.97 | 205.61 | 22.72 | 273.44 | 0.3871 | -856.0 | -694.3 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 10.57 | 205.70 | 22.82 | 287.54 | 0.4015 | -809.0 | -651.5 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 3.25 | 205.12 | 22.24 | 268.91 | 0.3795 | -834.0 | -714.3 | |
| 0.00 | 3.72 | 0.00 | 1.99 | 3.40 | 205.06 | 22.18 | 269.31 | 0.3784 | -1063.0 | -876.5 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 4.99 | 205.08 | 22.19 | 273.52 | 0.3786 | -924.0 | -819.8 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 3.87 | 204.91 | 22.02 | 270.53 | 0.3757 | -904.0 | -691.2 | |
| 1.73 | 4.09 | 0.92 | 2.18 | 6.29 | 204.37 | 21.49 | 277.12 | 0.3685 | -987.3 | -763.4 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 7.12 | 204.18 | 21.30 | 279.43 | 0.3669 | -839.0 | -660.4 | |
| 2.18 | 6.27 | 1.16 | 3.34 | 8.13 | 204.14 | 21.25 | 282.17 | 0.3686 | 857.6 | 372.3 | |
| 0.82 | 3.00 | 0.43 | 1.59 | 6.12 | 203.84 | 20.95 | 276.79 | 0.3596 | -1034.1 | -807.5 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 7.77 | 203.75 | 20.87 | 281.38 | 0.3616 | 699.0 | 551.6 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 7.87 | 203.43 | 20.54 | 281.80 | 0.3566 | 820.0 | 593.1 | |
| 3.18 | 4.81 | 1.68 | 2.55 | 8.12 | 203.38 | 20.49 | 282.51 | 0.3565 | 1038.7 | 800.3 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 5.19 | 203.18 | 20.29 | 274.28 | 0.3479 | -888.0 | -775.7 | |
| 1.64 | 4.36 | 0.86 | 2.30 | 6.29 | 203.19 | 20.30 | 277.43 | 0.3493 | -984.4 | -721.4 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 5.32 | 203.05 | 20.17 | 274.66 | 0.3459 | -902.0 | -681.2 | |
| 0.91 | 2.73 | 0.48 | 1.43 | 7.07 | 202.41 | 19.52 | 279.97 | 0.3382 | 949.2 | 776.3 | |
| 1.45 | 4.09 | 0.76 | 2.15 | 4.91 | 202.16 | 19.28 | 273.57 | 0.3310 | 1036.4 | 781.8 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 5.90 | 201.68 | 18.79 | 276.69 | 0.3240 | 1084.0 | 886.0 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 5.75 | 200.06 | 17.18 | 276.68 | 0.2971 | 817.0 | 701.4 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 5.76 | 199.49 | 16.60 | 276.90 | 0.2876 | 791.0 | 631.5 | |
| 0.00 | 2.63 | 0.00 | 1.36 | 5.80 | 199.23 | 16.35 | 277.11 | 0.2834 | 733.0 | 650.5 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 6.17 | 199.02 | 16.13 | 278.51 | 0.2806 | 776.0 | 609.5 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 6.35 | 197.59 | 14.71 | 279.90 | 0.2573 | 983.0 | 835.7 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 6.72 | 197.61 | 14.72 | 281.30 | 0.2585 | 927.0 | 746.1 | |
| 0.00 | 3.82 | 0.00 | 1.94 | 6.50 | 196.21 | 13.32 | 281.40 | 0.2346 | 1070.0 | 866.7 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 4.90 | 195.10 | 12.21 | 274.88 | 0.2125 | 844.0 | 662.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
