SDO HMI 2014-07-11 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.80 | 190.95 | 21.49 | 127.13 | -19.95 | 148.01 | -34.88 | 126.29 | 0.6682 | 269.8 | 57.7 | |
|
previous
or next observation for the same group /

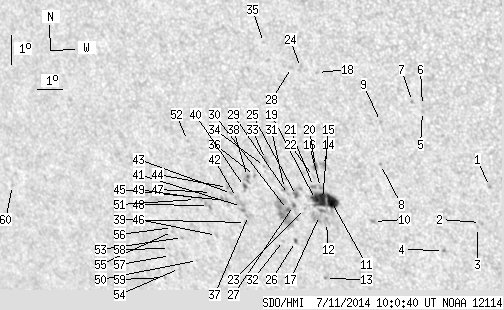

back to the solar disc SDO HMI 2014-07-11 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 1.10 | -19.31 | 155.76 | -27.13 | 132.02 | 0.5815 | 785.0 | 571.3 | |
| 0.00 | 2.27 | 0.00 | 1.40 | -20.52 | 155.20 | -27.69 | 133.08 | 0.5980 | 695.0 | 537.3 | |
| 0.00 | 0.64 | 0.00 | 0.39 | -20.70 | 155.05 | -27.83 | 133.16 | 0.6010 | 609.0 | 501.4 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -21.52 | 153.61 | -29.28 | 132.84 | 0.6227 | 747.0 | 677.4 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -16.91 | 153.74 | -29.14 | 126.74 | 0.5836 | 776.0 | 672.4 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -16.72 | 153.78 | -29.11 | 126.49 | 0.5817 | 783.0 | 653.0 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -16.60 | 153.43 | -29.46 | 126.01 | 0.5848 | 655.0 | 593.9 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -18.71 | 151.85 | -31.04 | 127.60 | 0.6186 | 702.0 | 532.4 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -17.29 | 152.13 | -30.76 | 125.87 | 0.6049 | 669.0 | 557.1 | |
| 0.00 | 2.27 | 0.00 | 1.46 | -20.63 | 151.16 | -31.73 | 129.55 | 0.6406 | 742.0 | 595.6 | |
| 11.35 | 34.79 | 7.39 | 22.73 | -20.02 | 149.68 | -33.21 | 127.57 | 0.6514 | 914.2 | 471.2 | |
| 0.00 | 4.27 | 0.00 | 2.81 | -20.74 | 149.31 | -33.58 | 128.20 | 0.6604 | -8.0 | 30.3 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -22.65 | 148.75 | -34.13 | 130.15 | 0.6798 | -573.0 | -518.2 | |
| 0.00 | 3.82 | 0.00 | 2.46 | -18.83 | 149.65 | -33.24 | 125.98 | 0.6433 | 955.0 | 803.9 | |
| 8.72 | -11.00 | 5.70 | -11.00 | -19.97 | 149.34 | -33.54 | 127.24 | 0.6546 | 843.0 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.48 | -19.57 | 149.36 | -33.53 | 126.73 | 0.6516 | 859.0 | 702.2 | |
| 0.00 | 11.90 | 0.00 | 7.84 | -20.51 | 149.09 | -33.80 | 127.74 | 0.6611 | 84.0 | 115.6 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -15.78 | 150.05 | -32.84 | 122.08 | 0.6181 | 770.0 | 640.8 | |
| 6.36 | -11.00 | 4.17 | -11.00 | -19.98 | 149.07 | -33.82 | 127.04 | 0.6576 | 697.5 | 999999 | |
| 1.54 | 3.72 | 1.00 | 2.41 | -18.88 | 149.33 | -33.56 | 125.79 | 0.6471 | 792.9 | 575.5 | |
| 0.00 | 2.18 | 0.00 | 1.42 | -19.55 | 149.09 | -33.79 | 126.50 | 0.6543 | 679.0 | 613.2 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -19.21 | 149.17 | -33.71 | 126.12 | 0.6511 | 479.0 | 389.0 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -20.30 | 148.59 | -34.29 | 127.09 | 0.6647 | 329.0 | 258.7 | |
| 0.00 | 3.36 | 0.00 | 2.13 | -15.64 | 149.43 | -33.46 | 121.42 | 0.6244 | 541.0 | 497.1 | |
| 1.09 | 7.72 | 0.72 | 5.10 | -19.87 | 148.35 | -34.54 | 126.36 | 0.6644 | 792.2 | 515.6 | |
| 0.73 | 2.00 | 0.49 | 1.35 | -21.43 | 147.89 | -34.99 | 128.00 | 0.6797 | 504.2 | 393.0 | |
| 0.55 | 37.52 | 0.36 | 25.09 | -20.22 | 148.14 | -34.75 | 126.65 | 0.6689 | 661.2 | 6.1 | |
| 0.00 | 1.54 | 0.00 | 0.98 | -15.65 | 149.08 | -33.80 | 121.20 | 0.6285 | 438.0 | 386.7 | |
| 0.00 | 0.73 | 0.00 | 0.48 | -19.85 | 148.04 | -34.85 | 126.11 | 0.6676 | 507.0 | 384.1 | |
| 0.91 | -27.00 | 0.61 | -27.00 | -20.36 | 147.86 | -35.02 | 126.63 | 0.6727 | 515.9 | 999999 | |
| 0.00 | 2.73 | 0.00 | 1.81 | -19.66 | 147.93 | -34.96 | 125.78 | 0.6674 | 561.0 | 418.1 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -21.42 | 147.42 | -35.47 | 127.64 | 0.6845 | 88.0 | 176.1 | |
| 0.00 | 2.54 | 0.00 | 1.69 | -18.72 | 147.41 | -35.48 | 124.19 | 0.6668 | 598.0 | 498.4 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -18.96 | 147.31 | -35.58 | 124.43 | 0.6694 | 557.0 | 463.3 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -14.89 | 148.15 | -34.73 | 119.46 | 0.6347 | 509.0 | 457.6 | |
| 0.00 | 1.27 | 0.00 | 0.85 | -19.27 | 146.83 | -36.06 | 124.51 | 0.6765 | 653.0 | 531.1 | |
| 0.00 | 2.82 | 0.00 | 1.93 | -20.63 | 146.22 | -36.67 | 125.81 | 0.6914 | -539.0 | -495.4 | |
| 0.55 | 4.00 | 0.37 | 2.70 | -19.32 | 146.54 | -36.35 | 124.36 | 0.6799 | 626.3 | 470.4 | |
| 0.00 | 1.73 | 0.00 | 1.19 | -20.87 | 146.03 | -36.86 | 125.99 | 0.6949 | -648.0 | -554.6 | |
| 1.00 | 3.72 | 0.68 | 2.52 | -19.66 | 146.33 | -36.56 | 124.66 | 0.6842 | 448.6 | 245.4 | |
| 0.00 | 6.72 | 0.00 | 4.60 | -20.34 | 146.02 | -36.87 | 125.31 | 0.6917 | -699.0 | -602.1 | |
| 0.00 | 2.27 | 0.00 | 1.55 | -20.04 | 145.90 | -36.99 | 124.86 | 0.6911 | -705.0 | -618.8 | |
| 0.00 | 1.45 | 0.00 | 0.99 | -19.92 | 145.73 | -37.16 | 124.58 | 0.6921 | -737.0 | -632.4 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -19.72 | 145.62 | -37.27 | 124.26 | 0.6920 | -852.0 | -718.2 | |
| 0.00 | 5.18 | 0.00 | 3.57 | -20.16 | 145.41 | -37.47 | 124.69 | 0.6968 | -861.0 | -698.8 | |
| 0.00 | 1.54 | 0.00 | 1.09 | -21.36 | 144.68 | -38.20 | 125.70 | 0.7116 | -546.0 | -393.4 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -19.92 | 144.91 | -37.98 | 124.05 | 0.7006 | -668.0 | -526.0 | |
| 0.00 | 3.82 | 0.00 | 2.66 | -20.36 | 144.65 | -38.23 | 124.44 | 0.7058 | -800.0 | -663.6 | |
| 0.00 | 2.00 | 0.00 | 1.40 | -20.14 | 144.39 | -38.50 | 124.00 | 0.7072 | -742.0 | -679.4 | |
| 0.00 | 0.73 | 0.00 | 0.52 | -22.26 | 143.59 | -39.29 | 126.09 | 0.7276 | -441.0 | -409.0 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -20.18 | 144.17 | -38.72 | 123.91 | 0.7098 | -575.0 | -490.4 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -18.23 | 144.39 | -38.50 | 121.57 | 0.6963 | -647.0 | -635.6 | |
| 0.00 | 1.36 | 0.00 | 0.98 | -21.50 | 143.20 | -39.68 | 124.93 | 0.7270 | -694.0 | -624.7 | |
| 0.00 | 1.09 | 0.00 | 0.80 | -22.57 | 142.71 | -40.18 | 125.92 | 0.7379 | -646.0 | -432.1 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -21.31 | 142.84 | -40.05 | 124.49 | 0.7295 | -508.0 | -459.1 | |
| 0.00 | 1.45 | 0.00 | 1.05 | -21.18 | 142.88 | -40.00 | 124.35 | 0.7283 | -547.0 | -479.2 | |
| 0.00 | 1.27 | 0.00 | 0.93 | -22.14 | 142.47 | -40.42 | 125.26 | 0.7378 | -550.0 | -428.2 | |
| 0.00 | 1.09 | 0.00 | 0.80 | -21.90 | 142.51 | -40.38 | 125.00 | 0.7360 | -505.0 | -370.4 | |
| 0.00 | 0.82 | 0.00 | 0.61 | -22.91 | 141.93 | -40.96 | 125.85 | 0.7472 | -582.0 | -428.4 | |
| 0.00 | 1.09 | 0.00 | 0.88 | -20.11 | 136.06 | -46.83 | 119.49 | 0.7890 | -562.0 | -461.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
