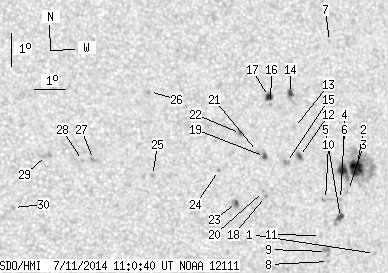

SDO HMI 2014-07-11 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.51 | 148.59 | 18.05 | 79.74 | 5.82 | 204.65 | 22.31 | 275.83 | 0.3813 | -342.5 | -258.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.69 | 3.25 | 206.70 | 24.37 | 269.14 | 0.4137 | -693.0 | -554.3 | |
| 14.81 | 80.30 | 8.02 | 43.51 | 5.86 | 206.20 | 23.86 | 275.54 | 0.4060 | -1114.0 | -396.5 | |
| 0.00 | 0.45 | 0.00 | 0.25 | 5.19 | 205.90 | 23.56 | 273.93 | 0.4007 | -520.0 | -593.4 | |
| 6.99 | -2.00 | 3.78 | -2.00 | 5.84 | 205.73 | 23.39 | 275.57 | 0.3985 | -1164.4 | 999999 | |
| 2.63 | 6.90 | 1.42 | 3.72 | 4.38 | 205.60 | 23.27 | 271.89 | 0.3957 | -998.0 | -695.3 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 4.93 | 205.62 | 23.28 | 273.28 | 0.3962 | -922.0 | -693.8 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 9.76 | 205.53 | 23.19 | 285.36 | 0.4042 | -739.0 | -553.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 3.05 | 205.17 | 22.83 | 268.46 | 0.3892 | -698.0 | -561.7 | |
| 0.00 | 6.63 | 0.00 | 3.56 | 3.36 | 205.11 | 22.77 | 269.24 | 0.3880 | -884.0 | -783.9 | |
| 0.00 | 3.00 | 0.00 | 1.61 | 4.94 | 205.12 | 22.79 | 273.35 | 0.3882 | -711.0 | -709.7 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 3.85 | 204.92 | 22.58 | 270.51 | 0.3848 | -855.0 | -612.6 | |
| 1.09 | 4.09 | 0.58 | 2.18 | 6.28 | 204.32 | 21.98 | 276.96 | 0.3764 | -987.9 | -807.7 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 7.16 | 204.20 | 21.86 | 279.36 | 0.3760 | -803.0 | -666.0 | |
| 2.18 | 5.00 | 1.17 | 2.67 | 8.21 | 204.12 | 21.78 | 282.13 | 0.3773 | 906.0 | 373.1 | |
| 0.00 | 3.00 | 0.00 | 1.60 | 6.10 | 203.88 | 21.54 | 276.60 | 0.3691 | -1101.0 | -869.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 7.89 | 203.44 | 21.10 | 281.59 | 0.3656 | 805.0 | 588.3 | |
| 3.18 | 4.72 | 1.69 | 2.51 | 8.13 | 203.39 | 21.05 | 282.28 | 0.3655 | 1023.3 | 808.2 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 5.09 | 203.15 | 20.81 | 273.91 | 0.3563 | -795.0 | -730.8 | |
| 1.36 | 3.18 | 0.72 | 1.69 | 6.31 | 203.17 | 20.83 | 277.33 | 0.3579 | -985.5 | -687.8 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 5.24 | 203.09 | 20.75 | 274.35 | 0.3554 | -853.0 | -652.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 6.46 | 202.94 | 20.61 | 277.84 | 0.3545 | -770.0 | -592.0 | |
| 0.45 | 1.82 | 0.24 | 0.96 | 7.03 | 202.41 | 20.07 | 279.62 | 0.3470 | 982.8 | 834.8 | |
| 0.82 | 4.90 | 0.43 | 2.58 | 4.93 | 202.20 | 19.86 | 273.55 | 0.3406 | 981.4 | 765.1 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 5.92 | 201.65 | 19.31 | 276.60 | 0.3326 | 929.0 | 812.6 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 5.81 | 199.51 | 17.18 | 276.88 | 0.2972 | 873.0 | 670.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 8.38 | 199.52 | 17.18 | 285.33 | 0.3044 | 753.0 | 577.9 | |
| 0.00 | 2.36 | 0.00 | 1.21 | 6.34 | 197.65 | 15.31 | 279.51 | 0.2673 | 970.0 | 768.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 6.31 | 197.30 | 14.96 | 279.61 | 0.2614 | 847.0 | 594.4 | |
| 0.00 | 4.36 | 0.00 | 2.23 | 6.49 | 196.16 | 13.82 | 281.00 | 0.2429 | 838.0 | 807.6 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 4.92 | 195.08 | 12.75 | 274.81 | 0.2216 | 891.0 | 705.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
