SDO HMI 2014-07-11 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.43 | 182.65 | 19.16 | 120.87 | -19.95 | 147.88 | -34.45 | 126.60 | 0.6638 | 244.8 | 58.0 | |
|
previous
or next observation for the same group /

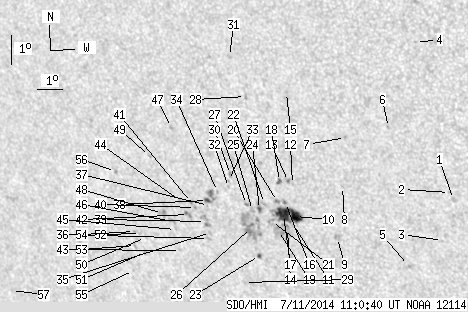

back to the solar disc SDO HMI 2014-07-11 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.45 | 0.00 | 1.48 | -19.26 | 155.73 | -26.61 | 132.49 | 0.5756 | 779.0 | 620.5 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -19.03 | 155.62 | -26.72 | 132.07 | 0.5746 | 692.0 | 540.2 | |
| 0.00 | 0.64 | 0.00 | 0.39 | -20.64 | 155.07 | -27.27 | 133.66 | 0.5948 | 407.0 | 458.4 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -14.17 | 155.15 | -27.18 | 124.43 | 0.5391 | 690.0 | 599.4 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -21.53 | 153.62 | -28.71 | 133.39 | 0.6172 | 697.0 | 615.8 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -16.96 | 153.77 | -28.57 | 127.34 | 0.5775 | 547.0 | 565.9 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -17.34 | 152.13 | -30.21 | 126.41 | 0.5990 | 663.0 | 516.4 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -18.96 | 151.70 | -30.64 | 128.28 | 0.6162 | 503.0 | 430.3 | |
| 0.00 | 4.36 | 0.00 | 2.79 | -20.68 | 151.13 | -31.21 | 130.05 | 0.6355 | 662.0 | 471.3 | |
| 10.45 | 34.15 | 6.76 | 22.18 | -20.03 | 149.67 | -32.67 | 128.01 | 0.6459 | 921.2 | 498.9 | |
| 0.00 | 2.54 | 0.00 | 1.65 | -20.31 | 149.53 | -32.81 | 128.25 | 0.6493 | 155.0 | 272.6 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -18.97 | 149.80 | -32.54 | 126.71 | 0.6367 | 871.0 | 623.4 | |
| 0.00 | 1.54 | 0.00 | 0.99 | -18.87 | 149.67 | -32.67 | 126.48 | 0.6375 | 886.0 | 818.8 | |
| 0.00 | 6.09 | 0.00 | 3.97 | -20.48 | 149.25 | -33.08 | 128.26 | 0.6535 | 400.0 | 324.2 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -15.95 | 150.18 | -32.15 | 122.84 | 0.6113 | 644.0 | 544.5 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -19.58 | 149.39 | -32.95 | 127.20 | 0.6455 | 764.0 | 713.3 | |
| 14.53 | -10.00 | 9.45 | -10.00 | -19.98 | 149.22 | -33.12 | 127.59 | 0.6503 | 791.6 | 999999 | |
| 1.00 | 2.91 | 0.64 | 1.87 | -18.89 | 149.32 | -33.02 | 126.22 | 0.6414 | 762.0 | 626.9 | |
| 0.00 | 7.63 | 0.00 | 5.01 | -20.53 | 148.89 | -33.45 | 128.04 | 0.6576 | -61.0 | -25.1 | |
| 0.00 | 2.09 | 0.00 | 1.36 | -19.56 | 149.09 | -33.25 | 126.93 | 0.6486 | 668.0 | 578.7 | |
| 0.00 | 4.09 | 0.00 | 2.68 | -20.24 | 148.69 | -33.65 | 127.50 | 0.6576 | 238.0 | 68.2 | |
| 0.00 | 2.09 | 0.00 | 1.37 | -19.64 | 148.56 | -33.78 | 126.64 | 0.6548 | 679.0 | 506.2 | |
| 0.91 | 2.36 | 0.61 | 1.58 | -21.41 | 147.91 | -34.43 | 128.40 | 0.6739 | 505.8 | 366.2 | |
| 1.09 | 4.00 | 0.72 | 2.62 | -19.85 | 148.31 | -34.02 | 126.72 | 0.6588 | 775.7 | 552.7 | |
| 0.00 | 2.45 | 0.00 | 1.62 | -19.90 | 148.03 | -34.31 | 126.57 | 0.6622 | 516.0 | 437.3 | |
| 0.00 | 31.79 | 0.00 | 21.11 | -20.47 | 147.84 | -34.49 | 127.16 | 0.6680 | 212.0 | 55.7 | |
| 0.00 | 1.36 | 0.00 | 0.90 | -19.71 | 147.84 | -34.50 | 126.18 | 0.6628 | 560.0 | 530.0 | |
| 0.00 | 2.18 | 0.00 | 1.39 | -16.14 | 148.59 | -33.74 | 121.92 | 0.6309 | 513.0 | 382.7 | |
| 0.00 | 0.45 | 0.00 | 0.31 | -22.35 | 147.04 | -35.30 | 128.92 | 0.6891 | -577.0 | -460.8 | |
| 0.00 | 2.45 | 0.00 | 1.61 | -18.73 | 147.45 | -34.89 | 124.62 | 0.6605 | 555.0 | 496.5 | |
| 0.00 | 2.09 | 0.00 | 1.33 | -14.86 | 148.22 | -34.11 | 119.85 | 0.6272 | 252.0 | 344.7 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -19.17 | 147.26 | -35.07 | 125.06 | 0.6654 | 479.0 | 438.8 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -18.93 | 147.32 | -35.02 | 124.79 | 0.6632 | 512.0 | 457.9 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -19.32 | 146.79 | -35.55 | 124.92 | 0.6714 | 608.0 | 587.7 | |
| 0.00 | 1.54 | 0.00 | 1.05 | -20.71 | 146.14 | -36.20 | 126.24 | 0.6872 | -657.0 | -606.4 | |
| 0.00 | 2.27 | 0.00 | 1.55 | -20.92 | 146.00 | -36.34 | 126.40 | 0.6900 | -659.0 | -555.6 | |
| 0.00 | 0.64 | 0.00 | 0.43 | -19.80 | 146.30 | -36.03 | 125.20 | 0.6796 | -28.0 | 15.7 | |
| 1.45 | 9.63 | 0.98 | 6.46 | -19.64 | 146.31 | -36.03 | 124.99 | 0.6785 | 389.4 | 412.9 | |
| 0.00 | 6.27 | 0.00 | 4.25 | -20.35 | 146.04 | -36.30 | 125.71 | 0.6859 | -597.0 | -590.6 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -19.89 | 145.76 | -36.58 | 124.94 | 0.6859 | -716.0 | -674.1 | |
| 0.00 | 1.45 | 0.00 | 0.99 | -19.73 | 145.64 | -36.70 | 124.66 | 0.6861 | -774.0 | -677.6 | |
| 0.00 | 3.63 | 0.00 | 2.48 | -20.14 | 145.40 | -36.93 | 125.02 | 0.6911 | -813.0 | -756.4 | |
| 0.00 | 0.82 | 0.00 | 0.57 | -21.37 | 144.72 | -37.62 | 126.09 | 0.7058 | -444.0 | -358.2 | |
| 0.00 | 2.00 | 0.00 | 1.37 | -19.68 | 145.16 | -37.17 | 124.28 | 0.6908 | -725.0 | -592.5 | |
| 0.00 | 0.82 | 0.00 | 0.57 | -20.67 | 144.72 | -37.62 | 125.23 | 0.7014 | -599.0 | -476.6 | |
| 0.00 | 3.09 | 0.00 | 2.14 | -20.40 | 144.67 | -37.66 | 124.87 | 0.7003 | -746.0 | -638.8 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -17.27 | 145.46 | -36.88 | 121.33 | 0.6732 | -434.0 | -487.8 | |
| 0.00 | 4.90 | 0.00 | 3.40 | -20.15 | 144.33 | -38.00 | 124.33 | 0.7022 | -791.0 | -616.5 | |
| 0.00 | 1.45 | 0.00 | 0.99 | -18.27 | 144.32 | -38.02 | 121.92 | 0.6914 | -702.0 | -633.3 | |
| 0.00 | 1.18 | 0.00 | 0.84 | -21.00 | 143.37 | -38.97 | 124.77 | 0.7170 | -618.0 | -469.2 | |
| 0.00 | 1.63 | 0.00 | 1.17 | -21.51 | 143.16 | -39.17 | 125.26 | 0.7220 | -735.0 | -619.8 | |
| 0.00 | 1.36 | 0.00 | 0.97 | -20.87 | 143.20 | -39.14 | 124.50 | 0.7180 | -518.0 | -456.3 | |
| 0.00 | 2.45 | 0.00 | 1.76 | -21.29 | 142.85 | -39.48 | 124.80 | 0.7238 | -372.0 | -385.1 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -20.81 | 142.96 | -39.37 | 124.29 | 0.7200 | -432.0 | -390.3 | |
| 0.00 | 0.82 | 0.00 | 0.59 | -22.15 | 142.48 | -39.86 | 125.61 | 0.7324 | -614.0 | -538.7 | |
| 0.00 | 1.54 | 0.00 | 1.08 | -18.83 | 142.76 | -39.58 | 121.69 | 0.7110 | -662.0 | -504.5 | |
| 0.00 | 0.64 | 0.00 | 0.51 | -23.11 | 136.59 | -45.75 | 123.49 | 0.7921 | -151.0 | -157.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
