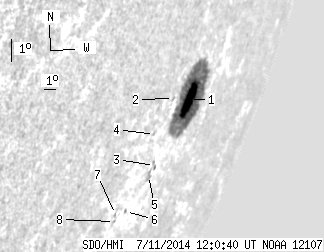

SDO HMI 2014-07-11 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.43 | 156.04 | 42.98 | 285.42 | -19.45 | 253.54 | 71.75 | 248.51 | 0.9636 | 292.2 | 70.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.43 | 143.59 | 42.98 | 264.25 | -19.29 | 253.68 | 71.89 | 248.70 | 0.9641 | 326.5 | 59.8 | |
| 0.00 | 1.36 | 0.00 | 2.27 | -19.14 | 251.91 | 70.12 | 248.54 | 0.9559 | 433.0 | 396.7 | |
| 0.00 | 3.00 | 0.00 | 5.23 | -21.38 | 252.39 | 70.60 | 246.33 | 0.9602 | 323.0 | 200.1 | |
| 0.00 | 1.00 | 0.00 | 1.62 | -20.27 | 251.22 | 69.43 | 247.24 | 0.9537 | 428.0 | 368.0 | |
| 0.00 | 4.72 | 0.00 | 8.20 | -21.69 | 252.15 | 70.36 | 245.96 | 0.9595 | 299.0 | 268.7 | |
| 0.00 | 0.82 | 0.00 | 1.36 | -22.83 | 251.20 | 69.41 | 244.61 | 0.9563 | -183.0 | -131.2 | |
| 0.00 | 0.64 | 0.00 | 1.02 | -22.87 | 250.31 | 68.52 | 244.39 | 0.9522 | -416.0 | -334.4 | |
| 0.00 | 0.91 | 0.00 | 1.47 | -23.12 | 250.49 | 68.70 | 244.17 | 0.9533 | -315.0 | -259.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
