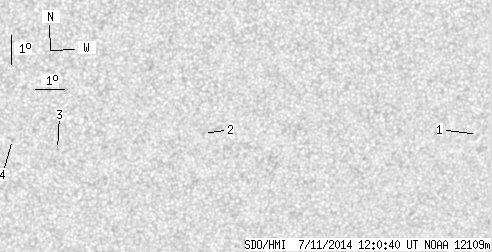

SDO HMI 2014-07-11 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.27 | 0.00 | 2.42 | -21.66 | 194.76 | 12.98 | 205.02 | 0.4860 | -427.5 | -381.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.44 | -21.76 | 205.34 | 23.55 | 220.88 | 0.5691 | 289.0 | 347.5 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -21.49 | 195.79 | 14.01 | 207.76 | 0.4854 | -606.0 | -490.6 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -21.96 | 190.94 | 9.15 | 198.68 | 0.4624 | -669.0 | -590.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -21.60 | 189.43 | 7.64 | 196.00 | 0.4501 | -724.0 | -569.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
