SDO HMI 2014-07-11 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.78 | 201.16 | 19.92 | 132.34 | -20.02 | 148.04 | -33.75 | 127.25 | 0.6570 | 257.1 | 61.2 | |
|
previous
or next observation for the same group /

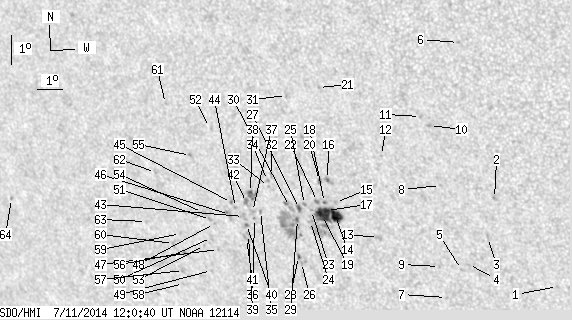

back to the solar disc SDO HMI 2014-07-11 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.72 | -22.13 | 157.47 | -24.31 | 138.70 | 0.5800 | 680.0 | 527.7 | |
| 0.00 | 1.91 | 0.00 | 1.15 | -19.24 | 155.72 | -26.07 | 133.03 | 0.5697 | 827.0 | 637.9 | |
| 0.00 | 2.00 | 0.00 | 1.22 | -20.55 | 155.23 | -26.56 | 134.26 | 0.5868 | 609.0 | 487.1 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -21.49 | 154.35 | -27.44 | 134.57 | 0.6041 | 374.0 | 364.1 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -21.66 | 154.05 | -27.74 | 134.50 | 0.6086 | 531.0 | 403.6 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -14.18 | 155.20 | -26.58 | 125.03 | 0.5319 | 799.0 | 619.1 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -22.64 | 153.28 | -28.51 | 134.96 | 0.6249 | 467.0 | 371.2 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -18.87 | 153.83 | -27.96 | 130.61 | 0.5865 | 551.0 | 420.1 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -21.59 | 153.25 | -28.54 | 133.63 | 0.6160 | 623.0 | 553.8 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -16.90 | 153.77 | -28.01 | 127.78 | 0.5708 | 808.0 | 646.4 | |
| 0.00 | 1.63 | 0.00 | 0.99 | -16.62 | 153.49 | -28.29 | 127.10 | 0.5716 | 664.0 | 531.3 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -17.95 | 151.83 | -29.95 | 127.49 | 0.6008 | 306.0 | 346.8 | |
| 0.00 | 3.72 | 0.00 | 2.37 | -20.69 | 151.15 | -30.64 | 130.56 | 0.6297 | 642.0 | 484.6 | |
| 10.63 | 50.50 | 6.83 | 32.68 | -20.01 | 149.67 | -32.12 | 128.42 | 0.6399 | 939.1 | 208.9 | |
| 0.00 | 1.73 | 0.00 | 1.10 | -19.57 | 149.77 | -32.02 | 127.93 | 0.6356 | 677.0 | 578.7 | |
| 0.36 | 3.54 | 0.23 | 2.26 | -18.82 | 149.63 | -32.16 | 126.81 | 0.6316 | 876.5 | 741.7 | |
| 3.36 | -14.00 | 2.17 | -14.00 | -19.85 | 149.36 | -32.43 | 127.97 | 0.6421 | 943.0 | 999999 | |
| 0.36 | 1.36 | 0.23 | 0.88 | -19.59 | 149.34 | -32.45 | 127.61 | 0.6403 | 854.5 | 684.0 | |
| 11.17 | -14.00 | 7.23 | -14.00 | -20.03 | 149.16 | -32.63 | 128.04 | 0.6454 | 735.8 | 999999 | |
| 0.45 | 2.45 | 0.29 | 1.57 | -18.86 | 149.31 | -32.47 | 126.62 | 0.6353 | 839.0 | 711.4 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -15.81 | 149.88 | -31.90 | 122.83 | 0.6074 | 795.0 | 635.1 | |
| 0.00 | 2.27 | 0.00 | 1.47 | -19.57 | 149.08 | -32.71 | 127.37 | 0.6429 | 699.0 | 552.7 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -19.88 | 148.77 | -33.01 | 127.53 | 0.6484 | 339.0 | 295.8 | |
| 0.00 | 2.18 | 0.00 | 1.42 | -20.25 | 148.64 | -33.14 | 127.91 | 0.6524 | 290.0 | 176.5 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -19.69 | 148.55 | -33.24 | 127.11 | 0.6494 | 731.0 | 547.6 | |
| 0.00 | 1.54 | 0.00 | 1.03 | -21.65 | 147.93 | -33.86 | 129.13 | 0.6698 | 426.0 | 385.4 | |
| 1.36 | 3.00 | 0.89 | 1.96 | -19.83 | 148.32 | -33.47 | 127.11 | 0.6528 | 731.9 | 563.4 | |
| 0.73 | 2.18 | 0.48 | 1.45 | -21.45 | 147.87 | -33.92 | 128.84 | 0.6691 | 496.4 | 395.9 | |
| 0.64 | 37.51 | 0.42 | 24.74 | -20.20 | 148.15 | -33.64 | 127.47 | 0.6573 | 729.1 | 51.3 | |
| 0.00 | 5.18 | 0.00 | 3.39 | -19.78 | 147.94 | -33.85 | 126.76 | 0.6565 | 465.0 | 470.6 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -16.11 | 148.62 | -33.17 | 122.31 | 0.6241 | 551.0 | 472.1 | |
| 0.00 | 1.91 | 0.00 | 1.25 | -18.77 | 147.48 | -34.31 | 125.09 | 0.6545 | 661.0 | 554.8 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -19.14 | 147.27 | -34.51 | 125.43 | 0.6592 | 506.0 | 431.2 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -18.94 | 147.28 | -34.51 | 125.18 | 0.6578 | 547.0 | 448.5 | |
| 0.00 | 1.27 | 0.00 | 0.85 | -19.99 | 146.74 | -35.04 | 126.15 | 0.6705 | 363.0 | 241.0 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -20.24 | 146.44 | -35.35 | 126.24 | 0.6753 | -709.0 | -603.5 | |
| 0.00 | 3.36 | 0.00 | 2.25 | -20.00 | 146.42 | -35.36 | 125.93 | 0.6740 | -266.0 | -334.0 | |
| 1.18 | 6.99 | 0.78 | 4.65 | -19.37 | 146.51 | -35.28 | 125.17 | 0.6689 | 590.4 | 538.8 | |
| 0.00 | 2.09 | 0.00 | 1.41 | -20.79 | 146.05 | -35.74 | 126.66 | 0.6830 | -647.0 | -536.7 | |
| 0.54 | 1.45 | 0.37 | 0.98 | -20.45 | 146.06 | -35.72 | 126.25 | 0.6806 | -673.2 | -587.7 | |
| 0.00 | 3.45 | 0.00 | 2.34 | -20.92 | 145.93 | -35.85 | 126.75 | 0.6851 | -618.0 | -548.1 | |
| 0.00 | 3.63 | 0.00 | 2.43 | -19.71 | 146.26 | -35.53 | 125.44 | 0.6737 | 366.0 | 226.7 | |
| 0.00 | 4.36 | 0.00 | 2.94 | -20.19 | 146.01 | -35.77 | 125.88 | 0.6794 | -661.0 | -598.4 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -19.90 | 145.77 | -36.02 | 125.34 | 0.6801 | -819.0 | -702.5 | |
| 0.00 | 1.09 | 0.00 | 0.73 | -19.74 | 145.65 | -36.13 | 125.05 | 0.6803 | -772.0 | -675.6 | |
| 0.00 | 4.90 | 0.00 | 3.33 | -20.14 | 145.46 | -36.32 | 125.44 | 0.6849 | -848.0 | -723.2 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -21.35 | 144.67 | -37.12 | 126.40 | 0.7006 | -427.0 | -359.4 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -20.47 | 144.76 | -37.03 | 125.38 | 0.6942 | -674.0 | -602.6 | |
| 0.00 | 0.64 | 0.00 | 0.45 | -22.08 | 144.16 | -37.63 | 126.95 | 0.7103 | -304.0 | -322.3 | |
| 0.00 | 2.45 | 0.00 | 1.70 | -20.95 | 144.50 | -37.29 | 125.80 | 0.6998 | -498.0 | -413.5 | |
| 0.00 | 2.09 | 0.00 | 1.43 | -20.34 | 144.63 | -37.15 | 125.13 | 0.6947 | -817.0 | -675.2 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -17.28 | 145.38 | -36.40 | 121.66 | 0.6680 | -534.0 | -565.6 | |
| 0.00 | 0.64 | 0.00 | 0.44 | -21.24 | 144.12 | -37.66 | 125.90 | 0.7054 | -611.0 | -578.6 | |
| 0.00 | 2.72 | 0.00 | 1.87 | -20.12 | 144.37 | -37.42 | 124.68 | 0.6960 | -787.0 | -633.3 | |
| 0.00 | 1.36 | 0.00 | 0.92 | -18.24 | 144.39 | -37.40 | 122.27 | 0.6846 | -779.0 | -717.5 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -21.51 | 143.20 | -38.58 | 125.64 | 0.7162 | -743.0 | -661.5 | |
| 0.00 | 2.00 | 0.00 | 1.43 | -22.13 | 142.96 | -38.82 | 126.24 | 0.7223 | -168.0 | -263.8 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -22.58 | 142.81 | -38.97 | 126.68 | 0.7264 | -424.0 | -482.9 | |
| 0.00 | 1.27 | 0.00 | 0.89 | -20.87 | 143.24 | -38.55 | 124.88 | 0.7121 | -594.0 | -479.2 | |
| 0.00 | 2.91 | 0.00 | 2.06 | -21.23 | 142.83 | -38.95 | 125.06 | 0.7182 | -490.0 | -370.1 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -16.57 | 143.78 | -38.00 | 119.70 | 0.6817 | 468.0 | 235.5 | |
| 0.00 | 1.27 | 0.00 | 0.89 | -18.87 | 142.78 | -39.00 | 122.09 | 0.7052 | -591.0 | -522.8 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -20.53 | 141.91 | -39.88 | 123.64 | 0.7235 | -90.0 | -176.1 | |
| 0.00 | 1.18 | 0.00 | 0.93 | -20.05 | 136.07 | -45.71 | 119.94 | 0.7783 | -555.0 | -412.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
