SDO HMI 2014-07-11 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.40 | 136.58 | 18.70 | 73.87 | 6.04 | 204.62 | 23.38 | 276.23 | 0.3987 | -317.0 | -171.8 | |
|
previous
or next observation for the same group /

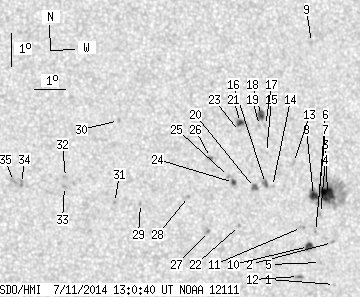

back to the solar disc SDO HMI 2014-07-11 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.65 | 3.11 | 206.37 | 25.13 | 268.87 | 0.4259 | -789.0 | -564.2 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 4.39 | 206.34 | 25.11 | 271.90 | 0.4251 | -661.0 | -481.5 | |
| 16.07 | 67.20 | 8.78 | 36.76 | 5.86 | 206.24 | 25.00 | 275.37 | 0.4240 | -1080.4 | -301.0 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 5.28 | 205.97 | 24.74 | 274.04 | 0.4195 | -825.0 | -628.7 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 3.79 | 205.92 | 24.68 | 270.46 | 0.4184 | -707.0 | -635.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 5.62 | 205.92 | 24.69 | 274.85 | 0.4189 | -958.0 | -877.4 | |
| 0.00 | 1.91 | 0.00 | 1.04 | 4.74 | 205.78 | 24.55 | 272.75 | 0.4162 | -802.0 | -554.1 | |
| 5.36 | -3.00 | 2.92 | -3.00 | 5.84 | 205.76 | 24.53 | 275.40 | 0.4165 | -1192.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 10.51 | 206.01 | 24.78 | 286.29 | 0.4310 | -741.0 | -573.5 | |
| 3.72 | 5.72 | 2.02 | 3.11 | 4.29 | 205.53 | 24.29 | 271.66 | 0.4122 | -909.7 | -636.9 | |
| 0.00 | 2.82 | 0.00 | 1.53 | 4.88 | 205.32 | 24.08 | 273.10 | 0.4089 | -866.0 | -779.5 | |
| 0.00 | 3.09 | 0.00 | 1.67 | 3.39 | 205.17 | 23.93 | 269.43 | 0.4067 | -1094.0 | -827.7 | |
| 0.00 | 1.73 | 0.00 | 0.94 | 6.87 | 205.14 | 23.91 | 278.01 | 0.4080 | -714.0 | -630.8 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 6.15 | 204.40 | 23.17 | 276.39 | 0.3953 | -797.0 | -608.9 | |
| 0.00 | 0.64 | 0.00 | 0.34 | 7.20 | 204.26 | 23.02 | 279.07 | 0.3946 | -695.0 | -435.7 | |
| 0.00 | 3.27 | 0.00 | 1.76 | 6.25 | 204.17 | 22.94 | 276.69 | 0.3917 | -1004.0 | -823.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 8.02 | 204.27 | 23.04 | 281.14 | 0.3966 | 400.0 | 204.4 | |
| 3.63 | 5.99 | 1.96 | 3.23 | 8.33 | 204.16 | 22.92 | 281.96 | 0.3956 | 960.2 | 631.9 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 8.03 | 204.07 | 22.84 | 281.23 | 0.3934 | 554.0 | 308.2 | |
| 1.54 | 3.72 | 0.83 | 2.00 | 6.14 | 203.80 | 22.57 | 276.48 | 0.3857 | -992.6 | -763.3 | |
| 2.63 | 4.72 | 1.41 | 2.53 | 8.14 | 203.44 | 22.21 | 281.76 | 0.3838 | 1084.7 | 811.3 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 5.00 | 203.26 | 22.02 | 273.54 | 0.3759 | -845.0 | -636.7 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 7.86 | 203.39 | 22.16 | 281.07 | 0.3823 | 695.0 | 473.9 | |
| 1.45 | 2.91 | 0.78 | 1.55 | 6.31 | 203.11 | 21.88 | 277.08 | 0.3748 | -916.8 | -701.2 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 6.50 | 202.96 | 21.72 | 277.62 | 0.3726 | -899.0 | -710.2 | |
| 0.00 | 2.00 | 0.00 | 1.06 | 7.09 | 202.39 | 21.16 | 279.40 | 0.3646 | 1016.0 | 848.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 4.84 | 202.23 | 21.00 | 273.20 | 0.3592 | 908.0 | 852.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 5.92 | 201.62 | 20.38 | 276.35 | 0.3501 | 951.0 | 642.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 5.75 | 200.05 | 18.82 | 276.20 | 0.3242 | 842.0 | 645.3 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 8.30 | 199.45 | 18.21 | 284.34 | 0.3206 | 664.0 | 621.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 5.80 | 199.21 | 17.98 | 276.58 | 0.3104 | 851.0 | 765.6 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 6.59 | 197.67 | 16.43 | 279.84 | 0.2865 | 753.0 | 720.9 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 6.32 | 197.63 | 16.39 | 278.91 | 0.2851 | 984.0 | 802.7 | |
| 0.00 | 2.36 | 0.00 | 1.21 | 6.44 | 196.26 | 15.02 | 280.04 | 0.2628 | 1001.0 | 839.6 | |
| 0.00 | 3.27 | 0.00 | 1.68 | 6.50 | 196.01 | 14.77 | 280.43 | 0.2587 | 905.0 | 817.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
