SDO HMI 2014-07-11 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.75 | 199.19 | 34.39 | 105.33 | 7.99 | 161.78 | -19.46 | 76.78 | 0.3393 | -224.3 | -140.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

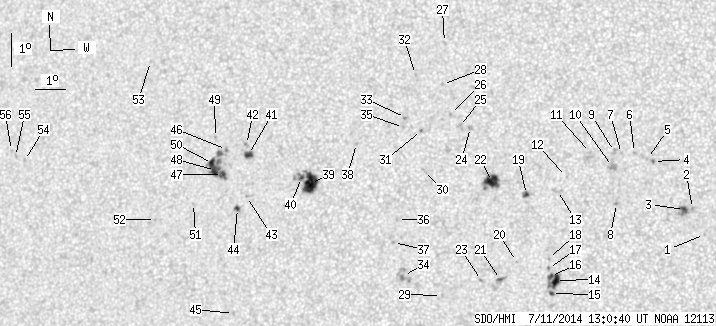

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.46 | 6.85 | 171.60 | -9.64 | 72.81 | 0.1748 | -779.0 | -576.8 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 7.64 | 171.21 | -10.03 | 69.29 | 0.1853 | -1009.0 | -829.7 | |
| 2.00 | 7.63 | 1.01 | 3.85 | 7.61 | 170.96 | -10.28 | 69.90 | 0.1892 | -1146.4 | -908.7 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 9.06 | 169.95 | -11.29 | 64.97 | 0.2143 | -940.0 | -783.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 9.15 | 169.76 | -11.48 | 64.94 | 0.2179 | -676.0 | -542.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 9.33 | 169.34 | -11.89 | 64.95 | 0.2255 | -800.0 | -638.1 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 9.29 | 168.93 | -12.30 | 65.79 | 0.2316 | -796.0 | -616.2 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 7.76 | 168.82 | -12.41 | 72.30 | 0.2246 | -930.0 | -761.9 | |
| 0.00 | 3.27 | 0.00 | 1.67 | 9.35 | 168.71 | -12.53 | 65.93 | 0.2355 | -769.0 | -653.4 | |
| 0.00 | 5.45 | 0.00 | 2.78 | 8.89 | 168.66 | -12.57 | 67.83 | 0.2333 | -957.0 | -847.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 9.31 | 167.95 | -13.29 | 67.25 | 0.2470 | -763.0 | -623.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 8.57 | 167.21 | -14.02 | 71.03 | 0.2545 | -711.0 | -428.6 | |
| 0.00 | 4.09 | 0.00 | 2.09 | 8.13 | 166.94 | -14.29 | 72.96 | 0.2567 | -342.0 | -557.2 | |
| 6.81 | 15.62 | 3.48 | 7.99 | 5.39 | 166.96 | -14.27 | 83.71 | 0.2481 | -1197.8 | -771.1 | |
| 1.00 | 2.36 | 0.51 | 1.21 | 4.99 | 166.84 | -14.39 | 85.35 | 0.2495 | -952.2 | -728.5 | |
| 1.73 | -14.00 | 0.88 | -14.00 | 5.51 | 166.80 | -14.44 | 83.29 | 0.2510 | -871.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 5.75 | 166.73 | -14.50 | 82.36 | 0.2526 | -860.0 | -742.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 6.05 | 166.72 | -14.51 | 81.16 | 0.2533 | -892.0 | -661.7 | |
| 1.73 | 3.72 | 0.89 | 1.92 | 8.00 | 165.96 | -15.27 | 74.40 | 0.2720 | -974.0 | -720.4 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 5.95 | 165.71 | -15.52 | 82.05 | 0.2700 | -756.0 | -534.4 | |
| 0.91 | 4.27 | 0.47 | 2.20 | 5.39 | 165.22 | -16.02 | 84.26 | 0.2773 | 777.0 | 506.1 | |
| 11.53 | 19.16 | 5.97 | 9.92 | 8.37 | 164.86 | -16.38 | 74.04 | 0.2914 | -1091.4 | -665.4 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 5.35 | 164.61 | -16.62 | 84.56 | 0.2874 | -905.0 | -638.9 | |
| 0.00 | 3.00 | 0.00 | 1.56 | 10.01 | 164.07 | -17.16 | 69.53 | 0.3116 | 864.0 | 637.3 | |
| 0.00 | 3.91 | 0.00 | 2.04 | 10.04 | 163.71 | -17.52 | 69.81 | 0.3172 | 718.0 | 624.0 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 10.40 | 163.40 | -17.83 | 69.04 | 0.3240 | 875.0 | 759.6 | |
| 0.00 | 1.82 | 0.00 | 0.96 | 12.61 | 163.06 | -18.17 | 63.21 | 0.3425 | 612.0 | 444.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 11.31 | 163.08 | -18.15 | 66.73 | 0.3340 | 766.0 | 592.4 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 4.87 | 163.34 | -17.89 | 86.42 | 0.3081 | -541.0 | -518.3 | |
| 0.00 | 2.09 | 0.00 | 1.09 | 8.67 | 162.62 | -18.62 | 74.82 | 0.3285 | -605.0 | -558.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 9.89 | 162.48 | -18.75 | 71.34 | 0.3357 | -649.0 | -575.7 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 11.60 | 162.18 | -19.06 | 66.86 | 0.3493 | 866.0 | 715.3 | |
| 0.00 | 1.82 | 0.00 | 0.96 | 10.28 | 161.94 | -19.30 | 70.70 | 0.3460 | 942.0 | 735.8 | |
| 0.00 | 10.08 | 0.00 | 5.29 | 5.45 | 162.10 | -19.14 | 84.78 | 0.3291 | -907.0 | -794.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 9.97 | 161.89 | -19.35 | 71.60 | 0.3453 | 747.0 | 413.6 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 7.15 | 161.84 | -19.40 | 79.75 | 0.3363 | -619.0 | -516.6 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 6.45 | 161.74 | -19.50 | 81.87 | 0.3365 | -774.0 | -526.2 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 9.44 | 160.37 | -20.86 | 74.10 | 0.3668 | -954.0 | -734.8 | |
| 18.71 | 30.97 | 10.04 | 16.63 | 8.19 | 158.92 | -22.31 | 78.15 | 0.3856 | -1057.2 | -587.9 | |
| 1.45 | -39.00 | 0.78 | -39.00 | 8.36 | 158.61 | -22.62 | 77.84 | 0.3910 | -617.6 | 999999 | |
| 3.54 | 5.63 | 1.93 | 3.07 | 9.02 | 156.79 | -24.45 | 77.01 | 0.4213 | 1107.3 | 861.0 | |
| 0.00 | 1.91 | 0.00 | 1.04 | 9.32 | 156.70 | -24.54 | 76.34 | 0.4235 | 830.0 | 757.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 7.73 | 156.80 | -24.43 | 80.04 | 0.4179 | 663.0 | 563.2 | |
| 1.63 | 2.82 | 0.89 | 1.54 | 7.36 | 156.52 | -24.71 | 81.01 | 0.4216 | 885.4 | 680.7 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 4.15 | 156.53 | -24.71 | 88.66 | 0.4187 | 719.0 | 541.8 | |
| 0.00 | 1.82 | 0.00 | 1.00 | 9.15 | 156.03 | -25.21 | 77.01 | 0.4333 | 807.0 | 651.6 | |
| 3.54 | 31.33 | 1.94 | 17.23 | 8.38 | 155.95 | -25.29 | 78.80 | 0.4326 | 1080.7 | 801.0 | |
| 5.54 | -47.00 | 3.05 | -47.00 | 8.50 | 155.70 | -25.54 | 78.62 | 0.4367 | 1014.8 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 9.51 | 155.62 | -25.61 | 76.37 | 0.4405 | 655.0 | 569.5 | |
| 4.63 | -47.00 | 2.55 | -47.00 | 8.71 | 155.58 | -25.65 | 78.18 | 0.4390 | 962.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 7.47 | 155.01 | -26.22 | 81.14 | 0.4452 | 647.0 | 550.5 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 6.94 | 153.74 | -27.50 | 82.57 | 0.4641 | 658.0 | 572.3 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 11.77 | 153.15 | -28.09 | 72.67 | 0.4848 | 703.0 | 484.3 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 8.59 | 148.95 | -32.28 | 80.19 | 0.5380 | 725.0 | 648.8 | |
| 0.00 | 1.63 | 0.00 | 0.96 | 8.70 | 148.61 | -32.62 | 80.06 | 0.5431 | 623.0 | 534.6 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 8.88 | 148.45 | -32.79 | 79.77 | 0.5457 | 502.0 | 422.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
