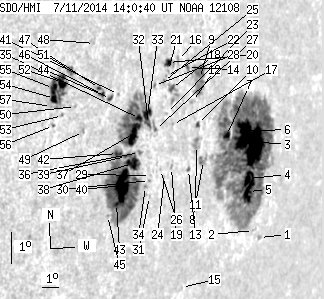

SDO HMI 2014-07-11 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 208.65 | 1029.74 | 212.64 | 1068.34 | -7.14 | 241.38 | 60.70 | 259.65 | 0.8796 | 66.7 | 85.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 2.48 | -10.26 | 245.91 | 65.23 | 257.00 | 0.9186 | -420.0 | -337.6 | |
| 0.00 | 0.64 | 0.00 | 0.77 | -10.01 | 245.37 | 64.68 | 257.19 | 0.9146 | 130.0 | 88.6 | |
| 69.83 | 561.54 | 80.15 | 638.89 | -7.17 | 244.27 | 63.58 | 260.10 | 0.9038 | 775.7 | 262.4 | |
| 9.26 | -3.00 | 10.76 | -3.00 | -8.33 | 244.44 | 63.76 | 258.86 | 0.9063 | 763.8 | 999999 | |
| 14.53 | -3.00 | 17.01 | -3.00 | -8.74 | 244.57 | 63.89 | 258.43 | 0.9077 | 364.6 | 999999 | |
| 2.72 | -3.00 | 3.01 | -3.00 | -6.79 | 243.22 | 62.53 | 260.36 | 0.8955 | 921.2 | 999999 | |
| 4.09 | -3.00 | 4.42 | -3.00 | -6.88 | 242.57 | 61.89 | 260.17 | 0.8906 | 982.4 | 999999 | |
| 0.00 | 7.90 | 0.00 | 8.20 | -7.57 | 241.25 | 60.57 | 259.17 | 0.8809 | 673.0 | 304.1 | |
| 0.00 | 30.87 | 0.00 | 30.97 | -4.99 | 240.50 | 59.82 | 261.98 | 0.8717 | 561.0 | 396.7 | |
| 1.27 | 2.81 | 1.29 | 2.85 | -6.42 | 240.63 | 59.94 | 260.37 | 0.8743 | 609.9 | 516.5 | |
| 0.00 | 8.99 | 0.00 | 9.15 | -7.07 | 240.70 | 60.01 | 259.64 | 0.8757 | 545.0 | 521.5 | |
| 0.00 | 2.72 | 0.00 | 2.72 | -5.68 | 240.19 | 59.50 | 261.14 | 0.8697 | 243.0 | 220.0 | |
| 0.64 | 2.09 | 0.64 | 2.11 | -7.80 | 240.37 | 59.68 | 258.77 | 0.8739 | -310.7 | -156.1 | |
| 1.00 | 2.81 | 0.98 | 2.76 | -4.60 | 239.72 | 59.04 | 262.30 | 0.8645 | -188.5 | -118.3 | |
| 0.00 | 0.36 | 0.00 | 0.38 | -11.52 | 241.03 | 60.35 | 254.71 | 0.8847 | 268.0 | 323.8 | |
| 0.00 | 3.54 | 0.00 | 3.40 | -4.35 | 239.15 | 58.47 | 262.51 | 0.8593 | -140.0 | -135.6 | |
| 0.00 | 1.09 | 0.00 | 1.06 | -6.32 | 239.10 | 58.42 | 260.23 | 0.8612 | -91.0 | -73.5 | |
| 2.18 | 13.08 | 2.09 | 12.57 | -5.20 | 238.86 | 58.17 | 261.49 | 0.8576 | -264.7 | 91.2 | |
| 0.00 | 1.45 | 0.00 | 1.42 | -7.67 | 239.31 | 58.63 | 258.72 | 0.8648 | -197.0 | -154.6 | |
| 3.63 | 7.45 | 3.44 | 7.06 | -4.38 | 238.57 | 57.89 | 262.39 | 0.8541 | -583.0 | -288.6 | |
| 0.00 | 0.91 | 0.00 | 0.86 | -4.63 | 238.60 | 57.92 | 262.11 | 0.8547 | -327.0 | -251.9 | |
| 0.00 | 0.91 | 0.00 | 0.86 | -4.78 | 238.51 | 57.82 | 261.92 | 0.8540 | -522.0 | -409.5 | |
| 0.00 | 1.18 | 0.00 | 1.13 | -5.96 | 238.68 | 58.00 | 260.58 | 0.8570 | -358.0 | -214.9 | |
| 0.00 | 0.82 | 0.00 | 0.79 | -7.93 | 238.95 | 58.27 | 258.36 | 0.8621 | -146.0 | -99.9 | |
| 0.00 | 1.73 | 0.00 | 1.63 | -4.95 | 238.36 | 57.67 | 261.69 | 0.8528 | -400.0 | -400.2 | |
| 0.00 | 0.73 | 0.00 | 0.70 | -7.69 | 238.67 | 57.98 | 258.57 | 0.8593 | -193.0 | -142.6 | |
| 0.45 | 3.90 | 0.43 | 3.67 | -6.42 | 238.13 | 57.44 | 259.95 | 0.8527 | -206.6 | -116.6 | |
| 0.00 | 1.45 | 0.00 | 1.35 | -5.05 | 237.85 | 57.17 | 261.50 | 0.8484 | -394.0 | -340.6 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -7.85 | 238.12 | 57.44 | 258.29 | 0.8547 | -71.0 | -143.7 | |
| 0.00 | 1.00 | 0.00 | 0.95 | -8.00 | 238.09 | 57.41 | 258.11 | 0.8547 | -255.0 | -115.3 | |
| 0.00 | 0.73 | 0.00 | 0.69 | -8.50 | 238.21 | 57.53 | 257.55 | 0.8565 | 409.0 | 323.8 | |
| 1.82 | 107.51 | 1.69 | 97.88 | -6.21 | 237.69 | 57.01 | 260.12 | 0.8484 | -329.0 | -523.9 | |
| 7.08 | -32.00 | 6.56 | -32.00 | -5.92 | 237.59 | 56.90 | 260.43 | 0.8471 | -496.1 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.71 | -8.17 | 237.90 | 57.22 | 257.87 | 0.8533 | 53.0 | 87.7 | |
| 4.36 | -32.00 | 3.99 | -32.00 | -6.02 | 237.15 | 56.47 | 260.24 | 0.8433 | -781.6 | 999999 | |
| 0.45 | 2.27 | 0.42 | 2.10 | -7.09 | 237.34 | 56.66 | 259.03 | 0.8465 | -330.2 | -258.8 | |
| 16.16 | -32.00 | 14.75 | -32.00 | -6.47 | 236.89 | 56.21 | 259.66 | 0.8415 | -836.9 | 999999 | |
| 11.62 | 188.78 | 10.68 | 171.91 | -7.41 | 237.01 | 56.32 | 258.59 | 0.8440 | -559.9 | -298.6 | |
| 1.18 | -38.00 | 1.07 | -38.00 | -7.17 | 236.63 | 55.95 | 258.79 | 0.8401 | -790.0 | 999999 | |
| 27.60 | -38.00 | 25.15 | -38.00 | -8.06 | 236.58 | 55.90 | 257.73 | 0.8411 | -909.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.96 | -5.21 | 235.88 | 55.20 | 260.98 | 0.8301 | 473.0 | 385.8 | |
| 3.09 | -38.00 | 2.77 | -38.00 | -7.04 | 236.11 | 55.43 | 258.84 | 0.8351 | -843.1 | 999999 | |
| 1.36 | -38.00 | 1.24 | -38.00 | -8.61 | 236.37 | 55.69 | 257.04 | 0.8401 | -869.0 | 999999 | |
| 1.36 | 3.00 | 1.19 | 2.62 | -5.31 | 235.47 | 54.78 | 260.79 | 0.8262 | 643.8 | 536.1 | |
| 0.00 | 1.00 | 0.00 | 0.90 | -8.96 | 235.96 | 55.27 | 256.54 | 0.8369 | -464.0 | -480.7 | |
| 1.82 | 6.63 | 1.57 | 5.71 | -5.16 | 235.02 | 54.34 | 260.89 | 0.8217 | 594.5 | 453.8 | |
| 1.09 | -46.00 | 0.94 | -46.00 | -4.96 | 234.84 | 54.16 | 261.09 | 0.8196 | 600.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.92 | -3.55 | 234.43 | 53.75 | 262.74 | 0.8136 | -289.0 | -282.2 | |
| 0.00 | 1.63 | 0.00 | 1.39 | -6.25 | 234.18 | 53.49 | 259.40 | 0.8150 | 652.0 | 519.8 | |
| 0.00 | 0.73 | 0.00 | 0.61 | -5.45 | 233.65 | 52.97 | 260.28 | 0.8085 | 578.0 | 479.9 | |
| 0.00 | 6.27 | 0.00 | 5.18 | -4.32 | 233.27 | 52.59 | 261.60 | 0.8028 | -719.0 | -448.7 | |
| 9.08 | 41.86 | 7.45 | 34.25 | -4.67 | 232.91 | 52.22 | 261.10 | 0.7996 | -628.0 | -235.2 | |
| 0.00 | 1.00 | 0.00 | 0.82 | -5.69 | 233.02 | 52.34 | 259.86 | 0.8025 | -320.0 | -208.0 | |
| 4.99 | -52.00 | 4.07 | -52.00 | -5.14 | 232.56 | 51.87 | 260.45 | 0.7967 | -759.1 | 999999 | |
| 5.99 | -52.00 | 4.88 | -52.00 | -4.83 | 232.47 | 51.79 | 260.82 | 0.7953 | -952.8 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.74 | -5.98 | 232.61 | 51.93 | 259.42 | 0.7987 | -609.0 | -493.9 | |
| 0.00 | 1.18 | 0.00 | 0.96 | -5.38 | 232.44 | 51.75 | 260.12 | 0.7959 | -608.0 | -474.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
