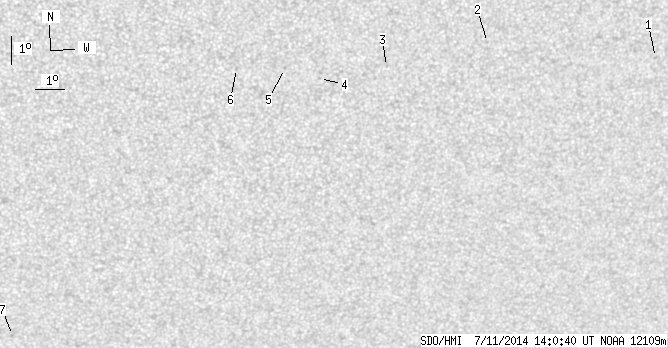

SDO HMI 2014-07-11 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.09 | 0.00 | 4.11 | -23.58 | 194.03 | 13.34 | 204.81 | 0.5202 | -284.9 | -231.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.66 | -21.83 | 205.39 | 24.71 | 222.12 | 0.5808 | 403.0 | 374.5 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -21.16 | 199.36 | 18.68 | 215.35 | 0.5182 | 695.0 | 527.8 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -21.89 | 195.98 | 15.30 | 209.45 | 0.5001 | -541.0 | -468.0 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -22.25 | 193.75 | 13.06 | 205.43 | 0.4892 | -599.0 | -477.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -21.89 | 192.54 | 11.85 | 203.67 | 0.4766 | -757.0 | -545.5 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -21.87 | 190.93 | 10.24 | 200.79 | 0.4668 | -492.0 | -399.2 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -31.27 | 183.75 | 3.07 | 184.53 | 0.5807 | -703.0 | -619.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
