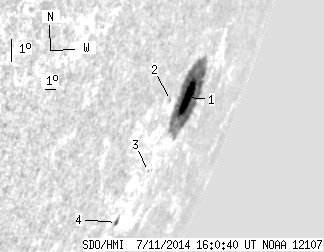

SDO HMI 2014-07-11 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.52 | 130.92 | 44.84 | 275.30 | -19.38 | 253.50 | 73.92 | 248.94 | 0.9724 | 194.3 | 32.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.43 | 127.01 | 42.84 | 268.10 | -19.30 | 253.57 | 73.99 | 249.03 | 0.9726 | 211.7 | 34.6 | |
| 0.00 | 0.73 | 0.00 | 1.35 | -19.26 | 251.61 | 72.04 | 248.75 | 0.9647 | 361.0 | 347.9 | |
| 0.00 | 0.27 | 0.00 | 0.53 | -21.63 | 252.02 | 72.44 | 246.40 | 0.9683 | 416.0 | 405.7 | |
| 1.09 | 2.91 | 2.00 | 5.32 | -23.24 | 250.64 | 71.06 | 244.51 | 0.9640 | -373.2 | -298.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
