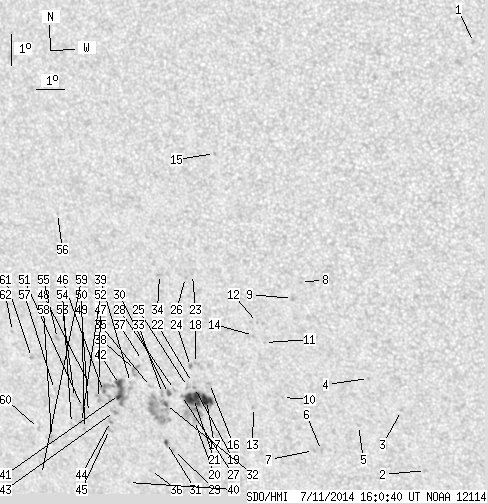

SDO HMI 2014-07-11 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.93 | 215.27 | 24.18 | 137.70 | -19.86 | 148.08 | -31.50 | 128.83 | 0.6323 | 255.8 | 74.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.68 | -8.26 | 160.34 | -19.24 | 122.52 | 0.3883 | 736.0 | 637.4 | |
| 0.00 | 1.91 | 0.00 | 1.14 | -22.17 | 157.23 | -22.34 | 141.06 | 0.5622 | 506.0 | 378.0 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -20.16 | 156.71 | -22.86 | 137.90 | 0.5462 | 743.0 | 568.7 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -19.13 | 155.71 | -23.87 | 135.33 | 0.5458 | 775.0 | 642.2 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -20.71 | 155.09 | -24.48 | 136.72 | 0.5676 | 582.0 | 381.6 | |
| 0.00 | 1.91 | 0.00 | 1.17 | -21.60 | 153.59 | -25.99 | 136.21 | 0.5909 | 722.0 | 554.9 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -21.61 | 153.30 | -26.28 | 135.91 | 0.5939 | 688.0 | 542.0 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -16.04 | 153.77 | -25.81 | 128.73 | 0.5384 | 719.0 | 561.7 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -16.57 | 153.41 | -26.17 | 129.15 | 0.5471 | 764.0 | 656.5 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -19.86 | 152.50 | -27.07 | 132.83 | 0.5859 | 676.0 | 525.4 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -18.05 | 152.17 | -27.40 | 130.02 | 0.5736 | 468.0 | 466.6 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -17.40 | 152.03 | -27.55 | 128.96 | 0.5697 | 686.0 | 615.0 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -20.23 | 151.37 | -28.21 | 132.19 | 0.6009 | 489.0 | 453.4 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -17.83 | 151.81 | -27.76 | 129.36 | 0.5757 | 647.0 | 542.1 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -11.99 | 151.26 | -28.32 | 119.90 | 0.5374 | 666.0 | 554.6 | |
| 0.00 | 1.82 | 0.00 | 1.13 | -19.48 | 149.89 | -29.69 | 129.82 | 0.6102 | 675.0 | 560.2 | |
| 8.62 | 48.21 | 5.42 | 30.45 | -20.05 | 149.65 | -29.92 | 130.37 | 0.6172 | 952.0 | 329.8 | |
| 0.00 | 2.45 | 0.00 | 1.53 | -18.83 | 149.49 | -30.08 | 128.60 | 0.6092 | 739.0 | 628.3 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -19.63 | 149.29 | -30.28 | 129.49 | 0.6177 | 790.0 | 725.1 | |
| 0.00 | 3.36 | 0.00 | 2.14 | -20.74 | 149.05 | -30.53 | 130.73 | 0.6291 | -153.0 | -115.8 | |
| 15.34 | -17.00 | 9.69 | -17.00 | -20.00 | 149.18 | -30.40 | 129.88 | 0.6219 | 800.6 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -19.47 | 149.25 | -30.32 | 129.24 | 0.6168 | 566.0 | 608.4 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -15.91 | 149.92 | -29.66 | 124.84 | 0.5820 | 531.0 | 518.6 | |
| 0.00 | 2.09 | 0.00 | 1.31 | -18.94 | 149.29 | -30.29 | 128.56 | 0.6123 | 802.0 | 682.1 | |
| 0.00 | 2.36 | 0.00 | 1.49 | -19.61 | 149.03 | -30.54 | 129.24 | 0.6202 | 665.0 | 529.5 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -16.02 | 149.64 | -29.93 | 124.76 | 0.5860 | 578.0 | 500.7 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -19.92 | 148.74 | -30.83 | 129.39 | 0.6258 | 513.0 | 413.3 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -19.73 | 148.52 | -31.06 | 128.95 | 0.6266 | 478.0 | 524.9 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -21.79 | 148.00 | -31.58 | 131.16 | 0.6480 | 611.0 | 470.5 | |
| 1.27 | 3.36 | 0.81 | 2.14 | -19.87 | 148.26 | -31.32 | 128.91 | 0.6305 | 762.4 | 529.7 | |
| 1.18 | 2.63 | 0.77 | 1.71 | -21.53 | 147.79 | -31.78 | 130.65 | 0.6481 | 509.3 | 443.0 | |
| 1.27 | 40.85 | 0.81 | 26.28 | -20.24 | 148.06 | -31.51 | 129.24 | 0.6354 | 701.6 | 45.5 | |
| 0.00 | 2.72 | 0.00 | 1.74 | -19.88 | 148.03 | -31.55 | 128.73 | 0.6330 | 639.0 | 479.1 | |
| 0.00 | 2.27 | 0.00 | 1.40 | -15.95 | 148.70 | -30.88 | 123.87 | 0.5965 | 176.0 | 268.0 | |
| 0.00 | 2.00 | 0.00 | 1.28 | -19.66 | 147.62 | -31.96 | 128.11 | 0.6357 | 569.0 | 383.0 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -22.51 | 146.92 | -32.66 | 131.15 | 0.6643 | -743.0 | -609.2 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -18.80 | 147.50 | -32.07 | 126.88 | 0.6306 | 517.0 | 445.3 | |
| 0.00 | 7.17 | 0.00 | 4.60 | -19.15 | 147.16 | -32.41 | 127.06 | 0.6368 | 411.0 | 463.6 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -19.56 | 146.88 | -32.70 | 127.37 | 0.6428 | 534.0 | 431.9 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -22.95 | 145.92 | -33.65 | 130.90 | 0.6774 | -459.0 | -404.3 | |
| 5.17 | 24.15 | 3.37 | 15.70 | -19.97 | 146.35 | -33.22 | 127.50 | 0.6513 | -593.9 | -89.3 | |
| 4.54 | -41.00 | 2.95 | -41.00 | -19.64 | 146.43 | -33.14 | 127.13 | 0.6481 | 471.8 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.97 | -20.55 | 146.02 | -33.56 | 127.99 | 0.6590 | -790.0 | -659.1 | |
| 0.00 | 2.45 | 0.00 | 1.62 | -20.90 | 145.77 | -33.81 | 128.24 | 0.6640 | -690.0 | -604.4 | |
| 0.00 | 2.72 | 0.00 | 1.81 | -21.17 | 145.66 | -33.92 | 128.50 | 0.6671 | -624.0 | -480.3 | |
| 0.54 | 10.44 | 0.36 | 6.83 | -19.90 | 145.75 | -33.83 | 126.94 | 0.6572 | -672.2 | -313.8 | |
| 0.00 | 3.81 | 0.00 | 2.51 | -20.14 | 145.49 | -34.08 | 127.06 | 0.6616 | -715.0 | -711.5 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -19.62 | 145.23 | -34.35 | 126.19 | 0.6607 | -743.0 | -607.3 | |
| 0.00 | 0.64 | 0.00 | 0.42 | -20.63 | 144.97 | -34.60 | 127.29 | 0.6703 | -518.0 | -414.4 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -21.18 | 144.67 | -34.91 | 127.76 | 0.6772 | -669.0 | -629.1 | |
| 0.00 | 1.91 | 0.00 | 1.27 | -20.47 | 144.78 | -34.80 | 126.94 | 0.6713 | -776.0 | -648.6 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -20.98 | 144.60 | -34.98 | 127.46 | 0.6766 | -691.0 | -645.2 | |
| 0.00 | 1.27 | 0.00 | 0.85 | -20.15 | 144.54 | -35.03 | 126.36 | 0.6715 | -686.0 | -593.2 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -21.03 | 144.19 | -35.39 | 127.22 | 0.6811 | -507.0 | -475.3 | |
| 0.00 | 2.00 | 0.00 | 1.31 | -18.20 | 144.35 | -35.22 | 123.69 | 0.6608 | -703.0 | -591.8 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -14.12 | 145.18 | -34.39 | 118.61 | 0.6262 | 633.0 | 537.0 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -19.91 | 143.81 | -35.77 | 125.53 | 0.6776 | -587.0 | -492.3 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -21.51 | 143.24 | -36.33 | 127.14 | 0.6938 | -833.0 | -651.6 | |
| 0.00 | 1.45 | 0.00 | 1.02 | -22.82 | 142.42 | -37.15 | 128.18 | 0.7105 | -422.0 | -415.5 | |
| 0.00 | 1.45 | 0.00 | 1.00 | -21.26 | 142.78 | -36.79 | 126.52 | 0.6968 | -531.0 | -419.7 | |
| 0.00 | 1.91 | 0.00 | 1.28 | -18.88 | 143.15 | -36.42 | 123.75 | 0.6780 | -659.0 | -496.7 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -18.05 | 142.60 | -36.98 | 122.30 | 0.6789 | -515.0 | -472.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
