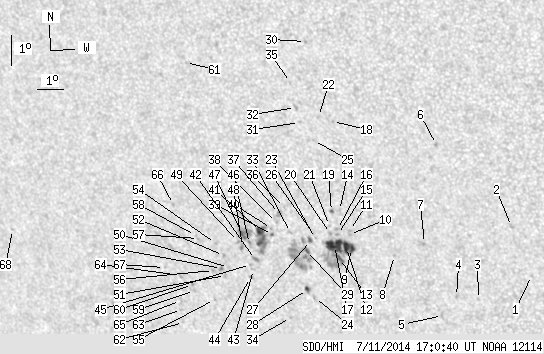

SDO HMI 2014-07-11 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.12 | 231.48 | 24.07 | 147.84 | -19.94 | 147.78 | -31.24 | 129.15 | 0.6303 | 252.0 | 28.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.75 | -20.80 | 156.16 | -22.86 | 138.73 | 0.5527 | 523.0 | 362.0 | |
| 0.00 | 2.45 | 0.00 | 1.44 | -19.18 | 155.71 | -23.31 | 136.05 | 0.5406 | 701.0 | 579.0 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -21.66 | 154.12 | -24.91 | 137.46 | 0.5811 | 471.0 | 326.6 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -21.58 | 153.33 | -25.69 | 136.51 | 0.5879 | 732.0 | 584.2 | |
| 0.00 | 2.54 | 0.00 | 1.57 | -22.25 | 152.69 | -26.33 | 136.66 | 0.6004 | 544.0 | 476.6 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -16.55 | 153.46 | -25.56 | 129.76 | 0.5401 | 800.0 | 623.7 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -19.83 | 152.50 | -26.52 | 133.36 | 0.5800 | 662.0 | 558.5 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -20.27 | 151.32 | -27.70 | 132.75 | 0.5961 | 722.0 | 628.2 | |
| 3.18 | 58.73 | 1.98 | 36.93 | -20.09 | 149.77 | -29.26 | 131.03 | 0.6106 | 863.9 | 223.1 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -19.63 | 149.79 | -29.23 | 130.43 | 0.6066 | 726.0 | 653.5 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -19.49 | 149.81 | -29.21 | 130.28 | 0.6052 | 763.0 | 659.2 | |
| 6.08 | -9.00 | 3.80 | -9.00 | -20.06 | 149.58 | -29.44 | 130.83 | 0.6123 | 964.0 | 999999 | |
| 2.45 | -9.00 | 1.54 | -9.00 | -20.44 | 149.24 | -29.78 | 131.01 | 0.6190 | 575.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -18.84 | 149.57 | -29.45 | 129.18 | 0.6024 | 828.0 | 622.6 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -19.64 | 149.34 | -29.68 | 130.04 | 0.6114 | 895.0 | 759.9 | |
| 0.00 | 1.91 | 0.00 | 1.19 | -19.47 | 149.37 | -29.65 | 129.85 | 0.6097 | 750.0 | 643.3 | |
| 14.98 | -9.00 | 9.40 | -9.00 | -20.01 | 149.15 | -29.87 | 130.36 | 0.6165 | 825.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -15.92 | 149.83 | -29.19 | 125.28 | 0.5766 | 733.0 | 605.8 | |
| 0.45 | 1.54 | 0.28 | 0.96 | -18.88 | 149.27 | -29.75 | 128.96 | 0.6061 | 672.4 | 588.5 | |
| 0.00 | 1.91 | 0.00 | 1.19 | -19.62 | 149.08 | -29.94 | 129.78 | 0.6140 | 707.0 | 513.0 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -19.35 | 149.10 | -29.92 | 129.44 | 0.6117 | 435.0 | 336.4 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -15.78 | 149.35 | -29.67 | 124.64 | 0.5812 | 499.0 | 470.9 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -19.80 | 148.48 | -30.54 | 129.50 | 0.6218 | 781.0 | 630.2 | |
| 0.00 | 1.54 | 0.00 | 1.00 | -21.80 | 147.98 | -31.04 | 131.63 | 0.6428 | 610.0 | 478.3 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -16.57 | 149.03 | -29.99 | 125.51 | 0.5908 | 594.0 | 426.3 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -19.64 | 148.44 | -30.58 | 129.24 | 0.6210 | 578.0 | 552.2 | |
| 1.00 | 49.11 | 0.63 | 31.36 | -19.88 | 148.27 | -30.75 | 129.42 | 0.6246 | 789.9 | 123.7 | |
| 1.54 | 2.90 | 1.00 | 1.87 | -21.54 | 147.78 | -31.24 | 131.12 | 0.6427 | 511.6 | 371.9 | |
| 1.09 | -27.00 | 0.69 | -27.00 | -20.22 | 148.05 | -30.97 | 129.67 | 0.6296 | 743.8 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -13.37 | 149.24 | -29.78 | 120.90 | 0.5653 | 691.0 | 620.1 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -16.00 | 148.62 | -30.41 | 124.33 | 0.5914 | 558.0 | 426.2 | |
| 0.00 | 2.63 | 0.00 | 1.61 | -15.51 | 148.55 | -30.47 | 123.57 | 0.5887 | 591.0 | 454.3 | |
| 0.00 | 1.54 | 0.00 | 0.98 | -19.64 | 147.57 | -31.45 | 128.50 | 0.6302 | 545.0 | 457.2 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -22.52 | 146.87 | -32.15 | 131.58 | 0.6594 | -699.0 | -559.6 | |
| 0.00 | 0.64 | 0.00 | 0.39 | -14.71 | 148.50 | -30.53 | 122.34 | 0.5836 | 484.0 | 524.4 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -18.81 | 147.52 | -31.50 | 127.36 | 0.6245 | 535.0 | 484.7 | |
| 0.00 | 3.09 | 0.00 | 1.96 | -19.02 | 147.28 | -31.74 | 127.44 | 0.6286 | 739.0 | 594.9 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -19.32 | 147.10 | -31.92 | 127.70 | 0.6328 | 582.0 | 487.7 | |
| 0.45 | 1.54 | 0.29 | 0.99 | -19.73 | 146.86 | -32.16 | 128.04 | 0.6384 | 599.2 | 491.9 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -19.53 | 146.87 | -32.15 | 127.78 | 0.6368 | 524.0 | 481.2 | |
| 4.36 | 26.05 | 2.81 | 16.84 | -19.65 | 146.42 | -32.60 | 127.57 | 0.6425 | 532.1 | -306.1 | |
| 0.00 | 3.18 | 0.00 | 2.07 | -20.60 | 146.00 | -33.02 | 128.46 | 0.6538 | -778.0 | -567.0 | |
| 0.00 | 1.63 | 0.00 | 1.07 | -20.94 | 145.83 | -33.19 | 128.77 | 0.6580 | -663.0 | -582.6 | |
| 0.00 | 1.63 | 0.00 | 1.08 | -21.21 | 145.65 | -33.37 | 128.97 | 0.6619 | -611.0 | -518.5 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -20.77 | 145.76 | -33.26 | 128.50 | 0.6575 | -565.0 | -536.0 | |
| 0.00 | 2.54 | 0.00 | 1.65 | -20.07 | 145.89 | -33.13 | 127.70 | 0.6510 | -778.0 | -623.3 | |
| 2.54 | 12.16 | 1.65 | 7.90 | -19.78 | 145.69 | -33.33 | 127.16 | 0.6511 | -552.9 | -152.3 | |
| 0.00 | 2.72 | 0.00 | 1.78 | -20.18 | 145.59 | -33.43 | 127.61 | 0.6550 | -794.0 | -657.3 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -20.02 | 145.48 | -33.54 | 127.31 | 0.6550 | -775.0 | -688.9 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -20.91 | 144.86 | -34.16 | 127.98 | 0.6678 | -579.0 | -492.9 | |
| 0.00 | 2.09 | 0.00 | 1.39 | -21.18 | 144.67 | -34.35 | 128.18 | 0.6717 | -683.0 | -580.4 | |
| 0.00 | 1.54 | 0.00 | 1.02 | -20.51 | 144.77 | -34.25 | 127.40 | 0.6659 | -783.0 | -668.8 | |
| 0.00 | 1.91 | 0.00 | 1.27 | -20.95 | 144.57 | -34.45 | 127.82 | 0.6710 | -783.0 | -671.2 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -20.12 | 144.55 | -34.47 | 126.74 | 0.6655 | -732.0 | -548.5 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -22.02 | 144.00 | -35.02 | 128.72 | 0.6842 | -617.0 | -507.3 | |
| 0.00 | 2.09 | 0.00 | 1.40 | -21.03 | 144.23 | -34.79 | 127.67 | 0.6751 | -670.0 | -522.2 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -19.98 | 143.91 | -35.11 | 126.10 | 0.6712 | -480.0 | -462.5 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -19.88 | 143.82 | -35.20 | 125.91 | 0.6715 | -609.0 | -521.7 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -21.75 | 143.27 | -35.75 | 127.85 | 0.6896 | -602.0 | -509.1 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -21.55 | 143.25 | -35.78 | 127.59 | 0.6885 | -726.0 | -665.4 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -14.21 | 144.65 | -34.37 | 118.76 | 0.6265 | 578.0 | 415.8 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -22.86 | 142.48 | -36.54 | 128.66 | 0.7048 | -462.0 | -361.2 | |
| 0.00 | 1.00 | 0.00 | 0.69 | -22.42 | 142.54 | -36.48 | 128.16 | 0.7013 | -543.0 | -533.4 | |
| 0.00 | 2.09 | 0.00 | 1.43 | -21.26 | 142.84 | -36.18 | 126.95 | 0.6907 | -498.0 | -431.2 | |
| 0.00 | 1.91 | 0.00 | 1.32 | -22.11 | 142.59 | -36.43 | 127.82 | 0.6988 | -493.0 | -403.8 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -18.88 | 143.20 | -35.82 | 124.17 | 0.6716 | -696.0 | -593.8 | |
| 0.00 | 0.64 | 0.00 | 0.44 | -21.02 | 142.26 | -36.76 | 126.24 | 0.6950 | -571.0 | -443.6 | |
| 0.00 | 1.09 | 0.00 | 0.81 | -20.03 | 136.11 | -42.91 | 121.32 | 0.7511 | -515.0 | -399.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
