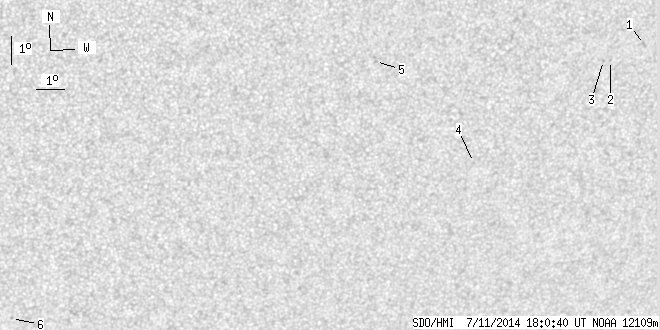

SDO HMI 2014-07-11 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.18 | 0.00 | 4.37 | -23.95 | 199.57 | 21.10 | 215.11 | 0.5826 | -30.7 | 53.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 1.46 | -21.91 | 205.05 | 26.58 | 224.01 | 0.5997 | 545.0 | 504.2 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -22.41 | 203.90 | 25.44 | 222.18 | 0.5936 | 493.0 | 399.1 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -22.40 | 203.65 | 25.18 | 221.91 | 0.5910 | 733.0 | 652.2 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -25.80 | 199.57 | 21.10 | 213.36 | 0.5917 | -517.0 | -454.6 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -22.21 | 195.55 | 17.09 | 211.81 | 0.5180 | -685.0 | -587.8 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -31.15 | 183.71 | 5.24 | 187.75 | 0.5825 | -753.0 | -585.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
