SDO HMI 2014-07-11 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.81 | 215.84 | 31.14 | 111.87 | 7.87 | 162.46 | -16.00 | 74.58 | 0.2839 | -255.0 | -199.5 | |
|
previous
or next observation for the same group /

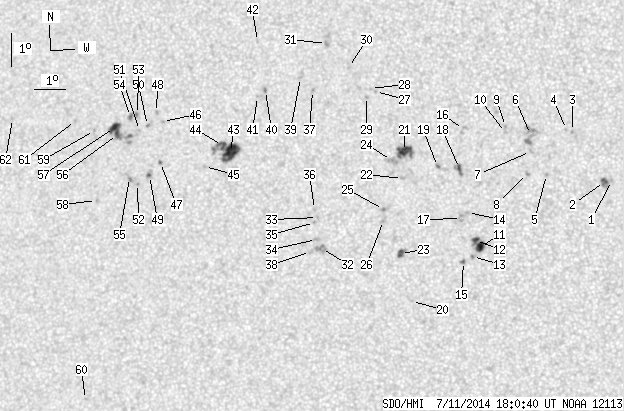

back to the solar disc SDO HMI 2014-07-11 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.36 | 7.56 | 171.40 | -7.07 | 62.68 | 0.1379 | -964.0 | -813.9 | |
| 2.00 | 6.44 | 1.00 | 3.22 | 7.52 | 171.18 | -7.29 | 63.57 | 0.1410 | -1156.0 | -818.3 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 9.04 | 170.16 | -8.31 | 58.02 | 0.1690 | -1008.0 | -867.1 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.10 | 169.97 | -8.50 | 58.28 | 0.1723 | -827.0 | -633.5 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 7.72 | 169.38 | -9.09 | 67.06 | 0.1708 | -1127.0 | -848.6 | |
| 0.00 | 15.43 | 0.00 | 7.78 | 8.94 | 168.85 | -9.62 | 62.06 | 0.1877 | -830.0 | -852.6 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 8.42 | 168.86 | -9.60 | 64.57 | 0.1836 | -957.0 | -732.9 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 7.75 | 168.78 | -9.68 | 68.16 | 0.1804 | -891.0 | -762.0 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 9.18 | 168.06 | -10.41 | 62.76 | 0.2015 | -844.0 | -681.4 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 8.99 | 168.06 | -10.40 | 63.58 | 0.2000 | -709.0 | -501.8 | |
| 5.90 | 13.71 | 2.98 | 6.92 | 5.51 | 167.36 | -11.10 | 81.68 | 0.1946 | -1282.5 | -870.5 | |
| 2.36 | -11.00 | 1.19 | -11.00 | 5.69 | 167.20 | -11.26 | 80.88 | 0.1977 | -1067.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 5.20 | 167.12 | -11.35 | 83.39 | 0.1981 | -964.0 | -769.5 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 6.54 | 166.94 | -11.53 | 76.93 | 0.2048 | -960.0 | -675.2 | |
| 0.54 | 2.18 | 0.28 | 1.10 | 5.04 | 166.84 | -11.63 | 84.29 | 0.2026 | -964.0 | -716.8 | |
| 0.00 | 4.36 | 0.00 | 2.21 | 9.07 | 166.74 | -11.72 | 65.79 | 0.2210 | 416.0 | 546.9 | |
| 0.00 | 3.90 | 0.00 | 1.98 | 6.35 | 166.75 | -11.71 | 77.99 | 0.2072 | -506.0 | -728.2 | |
| 2.00 | 6.44 | 1.01 | 3.27 | 7.88 | 166.65 | -11.81 | 71.08 | 0.2153 | -1062.8 | -802.1 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 7.93 | 165.96 | -12.51 | 71.79 | 0.2268 | -1030.0 | -860.0 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 3.80 | 165.23 | -13.23 | 90.29 | 0.2294 | -845.0 | -713.2 | |
| 10.71 | 15.52 | 5.47 | 7.93 | 8.37 | 164.90 | -13.56 | 71.29 | 0.2461 | -1117.8 | -839.8 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 7.55 | 164.86 | -13.60 | 74.60 | 0.2429 | -868.0 | -691.8 | |
| 2.90 | 6.08 | 1.48 | 3.10 | 5.26 | 164.86 | -13.60 | 84.07 | 0.2365 | 1066.2 | 826.5 | |
| 0.00 | 6.90 | 0.00 | 3.53 | 8.09 | 164.50 | -13.97 | 72.84 | 0.2512 | -975.0 | -649.3 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 6.59 | 164.29 | -14.17 | 78.89 | 0.2490 | 1044.0 | 853.4 | |
| 0.00 | 2.63 | 0.00 | 1.35 | 6.26 | 164.30 | -14.16 | 80.23 | 0.2479 | 833.0 | 497.2 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 10.19 | 163.91 | -14.56 | 65.94 | 0.2722 | 1005.0 | 829.1 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 10.28 | 163.74 | -14.72 | 65.86 | 0.2753 | 693.0 | 542.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 10.03 | 163.62 | -14.84 | 66.85 | 0.2755 | 921.0 | 823.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 10.91 | 163.00 | -15.46 | 64.78 | 0.2906 | 877.0 | 666.2 | |
| 0.00 | 2.63 | 0.00 | 1.37 | 11.64 | 162.25 | -16.21 | 63.55 | 0.3068 | 868.0 | 812.1 | |
| 0.00 | 7.35 | 0.00 | 3.79 | 5.37 | 162.36 | -16.11 | 84.41 | 0.2788 | -946.0 | -822.9 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 6.31 | 162.20 | -16.26 | 81.11 | 0.2830 | -959.0 | -738.7 | |
| 0.00 | 3.36 | 0.00 | 1.73 | 5.64 | 162.19 | -16.28 | 83.49 | 0.2819 | -944.0 | -653.7 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 6.16 | 162.11 | -16.35 | 81.69 | 0.2842 | -779.0 | -689.6 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 6.55 | 162.10 | -16.37 | 80.31 | 0.2852 | -777.0 | -612.0 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 10.19 | 161.88 | -16.58 | 68.43 | 0.3034 | 939.0 | 898.8 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 5.27 | 162.01 | -16.46 | 84.84 | 0.2845 | -638.0 | -517.6 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 10.58 | 161.47 | -16.99 | 67.67 | 0.3120 | 949.0 | 743.6 | |
| 0.00 | 1.72 | 0.00 | 0.90 | 10.16 | 160.36 | -18.11 | 70.04 | 0.3269 | -914.0 | -754.3 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 9.97 | 160.11 | -18.36 | 70.82 | 0.3299 | -740.0 | -624.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 11.66 | 160.00 | -18.46 | 66.14 | 0.3406 | -732.0 | -563.8 | |
| 17.70 | 34.22 | 9.30 | 18.00 | 8.24 | 159.32 | -19.15 | 76.46 | 0.3353 | -1139.4 | -657.3 | |
| 3.90 | -43.00 | 2.06 | -43.00 | 8.45 | 159.05 | -19.42 | 76.02 | 0.3403 | -796.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 7.79 | 158.49 | -19.97 | 78.19 | 0.3472 | -745.0 | -563.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 9.14 | 157.03 | -21.43 | 75.29 | 0.3746 | 940.0 | 713.9 | |
| 0.54 | 1.54 | 0.29 | 0.82 | 7.88 | 157.04 | -21.43 | 78.61 | 0.3707 | 913.7 | 752.8 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 9.41 | 156.82 | -21.65 | 74.71 | 0.3789 | 853.0 | 813.3 | |
| 0.82 | 3.54 | 0.44 | 1.89 | 7.48 | 156.70 | -21.77 | 79.82 | 0.3752 | 887.1 | 325.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 9.00 | 156.54 | -21.92 | 75.91 | 0.3818 | 1168.0 | 957.3 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 8.84 | 156.29 | -22.18 | 76.44 | 0.3853 | 885.0 | 729.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 7.22 | 156.31 | -22.15 | 80.63 | 0.3808 | 1014.0 | 849.3 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 9.33 | 156.19 | -22.28 | 75.26 | 0.3884 | 951.0 | 884.8 | |
| 1.00 | 2.72 | 0.54 | 1.47 | 9.26 | 155.96 | -22.50 | 75.54 | 0.3918 | 995.5 | 822.5 | |
| 0.00 | 3.27 | 0.00 | 1.75 | 7.40 | 156.04 | -22.43 | 80.26 | 0.3855 | 850.0 | 793.6 | |
| 2.81 | 21.88 | 1.52 | 11.79 | 8.70 | 155.56 | -22.90 | 77.14 | 0.3963 | 1039.1 | 837.2 | |
| 6.63 | -56.00 | 3.58 | -56.00 | 8.91 | 155.45 | -23.02 | 76.67 | 0.3987 | 991.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 6.67 | 154.97 | -23.49 | 82.41 | 0.4011 | 824.0 | 692.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 8.80 | 154.78 | -23.68 | 77.23 | 0.4087 | 782.0 | 656.9 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 0.60 | 154.77 | -23.70 | 97.52 | 0.4071 | 635.0 | 530.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 9.09 | 154.12 | -24.34 | 76.82 | 0.4198 | 688.0 | 577.5 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 9.09 | 151.97 | -26.50 | 77.66 | 0.4529 | 609.0 | 430.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
