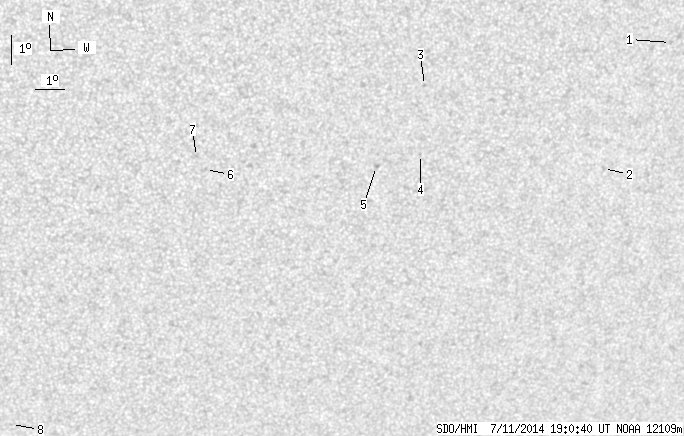

SDO HMI 2014-07-11 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.99 | 0.00 | 6.46 | -21.86 | 196.87 | 18.96 | 214.48 | 0.5387 | -206.0 | -95.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 1.15 | -18.30 | 205.32 | 27.41 | 229.62 | 0.5759 | 552.0 | 421.6 | |
| 0.00 | 1.63 | 0.00 | 1.01 | -22.45 | 203.65 | 25.74 | 222.45 | 0.5969 | 647.0 | 585.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -19.47 | 196.86 | 18.95 | 217.82 | 0.5012 | -694.0 | -518.8 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -21.78 | 197.02 | 19.11 | 215.19 | 0.5295 | 703.0 | 542.0 | |
| 0.00 | 2.36 | 0.00 | 1.37 | -22.16 | 195.54 | 17.63 | 212.67 | 0.5217 | -776.0 | -629.8 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -22.14 | 189.72 | 11.81 | 203.36 | 0.4800 | -613.0 | -435.8 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -21.69 | 189.38 | 11.47 | 203.16 | 0.4717 | -757.0 | -599.8 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -31.11 | 183.69 | 5.78 | 188.54 | 0.5832 | -710.0 | -570.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
