SDO HMI 2014-07-11 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.00 | 234.46 | 29.04 | 121.32 | 7.99 | 162.30 | -15.61 | 73.70 | 0.2777 | -277.9 | -106.6 | |
|
previous
or next observation for the same group /

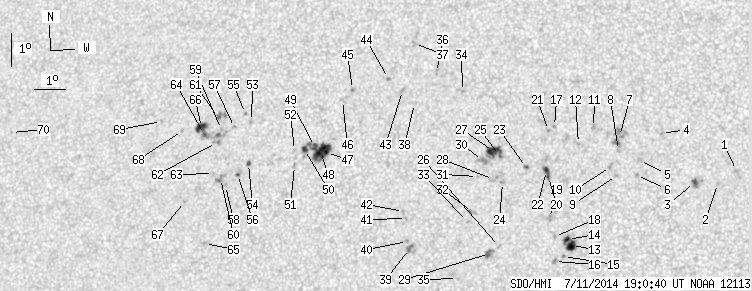

back to the solar disc SDO HMI 2014-07-11 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.77 | 7.88 | 172.51 | -5.40 | 53.78 | 0.1161 | -834.0 | -749.6 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 7.48 | 171.93 | -5.98 | 59.29 | 0.1208 | -909.0 | -689.9 | |
| 1.72 | 5.99 | 0.86 | 2.99 | 7.50 | 171.22 | -6.69 | 61.82 | 0.1317 | -1167.1 | -828.0 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 8.99 | 170.17 | -7.74 | 56.53 | 0.1603 | -1025.0 | -774.4 | |
| 0.00 | 3.36 | 0.00 | 1.69 | 8.16 | 169.50 | -8.41 | 63.04 | 0.1632 | -813.0 | -565.1 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 7.70 | 169.41 | -8.50 | 65.83 | 0.1612 | -1000.0 | -873.5 | |
| 0.00 | 13.98 | 0.00 | 7.04 | 8.89 | 168.86 | -9.05 | 60.92 | 0.1786 | -1003.0 | -872.6 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 8.46 | 168.84 | -9.07 | 63.14 | 0.1756 | -1002.0 | -768.0 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 7.70 | 168.79 | -9.12 | 67.30 | 0.1710 | -919.0 | -726.9 | |
| 0.00 | 3.00 | 0.00 | 1.51 | 7.97 | 168.60 | -9.31 | 66.25 | 0.1758 | -874.0 | -701.1 | |
| 0.00 | 2.09 | 0.00 | 1.05 | 9.16 | 168.04 | -9.87 | 61.67 | 0.1931 | -824.0 | -627.3 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 8.66 | 167.58 | -10.33 | 64.97 | 0.1965 | -512.0 | -248.0 | |
| 6.44 | 14.07 | 3.25 | 7.09 | 5.55 | 167.43 | -10.48 | 81.04 | 0.1841 | -1236.6 | -831.8 | |
| 2.27 | -13.00 | 1.14 | -13.00 | 5.73 | 167.30 | -10.61 | 80.17 | 0.1867 | -1040.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 5.21 | 167.19 | -10.72 | 83.02 | 0.1875 | -945.0 | -825.1 | |
| 0.00 | 2.18 | 0.00 | 1.10 | 5.05 | 166.91 | -11.00 | 83.98 | 0.1920 | -1009.0 | -812.4 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 9.17 | 166.82 | -11.09 | 64.21 | 0.2119 | 934.0 | 714.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 5.82 | 166.90 | -11.01 | 80.06 | 0.1938 | -868.0 | -716.2 | |
| 0.00 | 3.00 | 0.00 | 1.51 | 6.36 | 166.73 | -11.18 | 77.45 | 0.1983 | -767.0 | -713.2 | |
| 0.64 | 5.99 | 0.32 | 3.03 | 7.64 | 166.67 | -11.24 | 71.35 | 0.2048 | -999.1 | -858.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 9.05 | 166.63 | -11.28 | 65.10 | 0.2139 | 778.0 | 577.6 | |
| 2.36 | -20.00 | 1.19 | -20.00 | 7.82 | 166.60 | -11.31 | 70.60 | 0.2069 | -1108.3 | 999999 | |
| 0.45 | 2.00 | 0.23 | 1.01 | 7.91 | 165.97 | -11.94 | 71.13 | 0.2175 | -1039.8 | -818.6 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 7.44 | 165.23 | -12.68 | 74.09 | 0.2273 | -967.0 | -747.9 | |
| 0.36 | 16.07 | 0.18 | 8.19 | 8.26 | 165.11 | -12.80 | 70.78 | 0.2332 | -1152.5 | -850.7 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 5.49 | 165.18 | -12.73 | 82.71 | 0.2221 | 638.0 | 424.3 | |
| 8.71 | -25.00 | 4.44 | -25.00 | 8.38 | 164.92 | -12.99 | 70.55 | 0.2369 | -1108.3 | 999999 | |
| 0.00 | 3.81 | 0.00 | 1.94 | 7.53 | 164.94 | -12.97 | 74.03 | 0.2324 | -718.0 | -703.2 | |
| 0.00 | 6.63 | 0.00 | 3.37 | 5.27 | 164.87 | -13.04 | 83.82 | 0.2269 | 1164.0 | 902.8 | |
| 0.00 | 5.45 | 0.00 | 2.78 | 8.10 | 164.58 | -13.33 | 72.09 | 0.2410 | -937.0 | -794.8 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 7.61 | 164.44 | -13.47 | 74.22 | 0.2411 | -622.0 | -455.9 | |
| 0.00 | 3.81 | 0.00 | 1.94 | 6.51 | 164.31 | -13.60 | 78.83 | 0.2392 | 849.0 | 780.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 6.24 | 164.16 | -13.75 | 80.07 | 0.2410 | 771.0 | 671.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 10.20 | 163.86 | -14.05 | 65.18 | 0.2643 | 938.0 | 780.9 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 4.49 | 163.88 | -14.03 | 87.38 | 0.2430 | -844.0 | -759.7 | |
| 0.00 | 2.45 | 0.00 | 1.26 | 10.77 | 163.00 | -14.91 | 64.49 | 0.2812 | 771.0 | 673.5 | |
| 0.00 | 2.90 | 0.00 | 1.51 | 11.65 | 162.25 | -15.66 | 62.77 | 0.2986 | 834.0 | 770.0 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 9.81 | 162.35 | -15.56 | 68.51 | 0.2854 | -390.0 | -196.5 | |
| 0.00 | 3.90 | 0.00 | 2.01 | 5.38 | 162.34 | -15.57 | 84.22 | 0.2697 | -1087.0 | -897.6 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 5.60 | 162.28 | -15.63 | 83.46 | 0.2712 | -970.0 | -808.7 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 6.30 | 162.22 | -15.69 | 80.91 | 0.2734 | -873.0 | -726.6 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 6.51 | 162.12 | -15.79 | 80.20 | 0.2755 | -831.0 | -684.4 | |
| 0.00 | 2.63 | 0.00 | 1.36 | 10.20 | 161.94 | -15.97 | 67.70 | 0.2940 | 990.0 | 756.1 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 10.56 | 161.47 | -16.44 | 67.12 | 0.3033 | 928.0 | 838.4 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 10.20 | 160.32 | -17.59 | 69.43 | 0.3190 | -921.0 | -785.2 | |
| 0.00 | 2.45 | 0.00 | 1.28 | 9.86 | 160.02 | -17.89 | 70.74 | 0.3220 | -483.0 | -519.1 | |
| 3.36 | 36.22 | 1.76 | 18.98 | 8.26 | 159.58 | -18.33 | 75.91 | 0.3223 | -1316.2 | -624.9 | |
| 14.80 | -47.00 | 7.75 | -47.00 | 8.29 | 159.38 | -18.53 | 75.95 | 0.3255 | -1091.7 | 999999 | |
| 2.45 | -47.00 | 1.29 | -47.00 | 8.44 | 159.18 | -18.73 | 75.64 | 0.3293 | -878.0 | 999999 | |
| 2.63 | -47.00 | 1.38 | -47.00 | 8.34 | 158.86 | -19.05 | 76.13 | 0.3341 | -849.7 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 7.84 | 158.56 | -19.35 | 77.75 | 0.3374 | -704.0 | -550.0 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 8.30 | 158.54 | -19.37 | 76.43 | 0.3391 | -373.0 | -275.8 | |
| 0.00 | 2.09 | 0.00 | 1.11 | 9.15 | 157.08 | -20.83 | 74.91 | 0.3652 | 922.0 | 691.9 | |
| 0.82 | 2.00 | 0.43 | 1.06 | 7.87 | 157.05 | -20.86 | 78.41 | 0.3616 | 1020.9 | 826.8 | |
| 0.00 | 1.72 | 0.00 | 0.92 | 9.39 | 156.86 | -21.05 | 74.40 | 0.3694 | 965.0 | 724.9 | |
| 0.64 | 3.18 | 0.34 | 1.69 | 7.52 | 156.70 | -21.21 | 79.49 | 0.3663 | 803.3 | 365.4 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 8.96 | 156.53 | -21.38 | 75.75 | 0.3732 | 938.0 | 797.5 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 7.18 | 156.33 | -21.58 | 80.56 | 0.3716 | 888.0 | 596.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 8.89 | 156.10 | -21.81 | 76.16 | 0.3797 | 841.0 | 678.4 | |
| 0.00 | 5.54 | 0.00 | 2.96 | 7.39 | 156.15 | -21.76 | 80.07 | 0.3748 | 1032.0 | 760.6 | |
| 0.54 | 5.90 | 0.29 | 3.16 | 9.25 | 155.98 | -21.93 | 75.28 | 0.3828 | 1033.0 | 871.2 | |
| 0.00 | 3.45 | 0.00 | 1.85 | 8.48 | 155.96 | -21.95 | 77.27 | 0.3807 | 828.0 | 764.5 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 7.54 | 155.91 | -22.00 | 79.77 | 0.3790 | 801.0 | 625.2 | |
| 1.18 | 22.42 | 0.63 | 12.03 | 8.72 | 155.54 | -22.37 | 76.86 | 0.3879 | 969.7 | 824.8 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 5.39 | 155.71 | -22.20 | 85.47 | 0.3790 | 841.0 | 706.0 | |
| 6.63 | -64.00 | 3.56 | -64.00 | 8.93 | 155.43 | -22.48 | 76.38 | 0.3903 | 1040.9 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 6.66 | 154.99 | -22.92 | 82.32 | 0.3920 | 896.0 | 787.8 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 8.82 | 154.80 | -23.11 | 76.94 | 0.3998 | 880.0 | 701.8 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 9.08 | 154.08 | -23.83 | 76.64 | 0.4118 | 740.0 | 616.2 | |
| 0.00 | 0.73 | 0.00 | 0.41 | 8.59 | 148.94 | -28.97 | 79.47 | 0.4890 | 691.0 | 542.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
