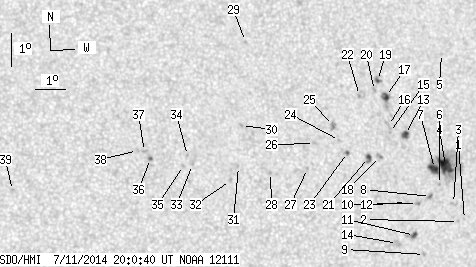

SDO HMI 2014-07-11 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.05 | 152.97 | 19.66 | 85.32 | 6.13 | 204.51 | 27.15 | 275.78 | 0.4578 | -190.6 | -129.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.46 | 4.23 | 206.90 | 29.54 | 271.55 | 0.4939 | -752.0 | -629.3 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 4.18 | 206.68 | 29.33 | 271.44 | 0.4906 | -777.0 | -573.6 | |
| 0.00 | 3.00 | 0.00 | 1.70 | 4.73 | 206.53 | 29.18 | 272.57 | 0.4883 | -973.0 | -671.0 | |
| 14.16 | 68.44 | 8.01 | 38.75 | 5.90 | 206.32 | 28.96 | 274.99 | 0.4854 | -1022.8 | -357.0 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 9.32 | 206.43 | 29.08 | 281.96 | 0.4922 | -610.0 | -514.9 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 5.33 | 206.07 | 28.72 | 273.82 | 0.4814 | -758.0 | -630.3 | |
| 6.44 | -4.00 | 3.63 | -4.00 | 5.82 | 205.93 | 28.57 | 274.86 | 0.4794 | -1111.0 | 999999 | |
| 0.64 | 2.72 | 0.36 | 1.53 | 4.97 | 205.74 | 28.39 | 273.09 | 0.4762 | -804.0 | -626.9 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 3.21 | 205.46 | 28.11 | 269.36 | 0.4723 | -887.0 | -693.2 | |
| 0.00 | 2.00 | 0.00 | 1.12 | 4.77 | 205.28 | 27.93 | 272.68 | 0.4691 | -1021.0 | -803.5 | |
| 2.00 | 5.81 | 1.12 | 3.25 | 3.80 | 205.14 | 27.78 | 270.60 | 0.4670 | 786.2 | 580.0 | |
| 0.00 | 0.73 | 0.00 | 0.41 | 4.82 | 204.90 | 27.55 | 272.78 | 0.4633 | -460.0 | -369.1 | |
| 3.45 | 5.63 | 1.93 | 3.15 | 6.89 | 204.98 | 27.63 | 277.25 | 0.4660 | -937.8 | -703.0 | |
| 0.00 | 3.90 | 0.00 | 2.17 | 3.58 | 204.54 | 27.19 | 270.07 | 0.4579 | -838.0 | -689.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 6.97 | 204.43 | 27.08 | 277.52 | 0.4576 | -836.0 | -699.9 | |
| 0.00 | 3.72 | 0.00 | 2.07 | 7.18 | 204.41 | 27.06 | 277.99 | 0.4576 | -563.0 | -455.8 | |
| 3.81 | 8.99 | 2.12 | 5.00 | 8.07 | 204.37 | 27.02 | 279.93 | 0.4585 | 885.1 | 281.4 | |
| 0.00 | 2.63 | 0.00 | 1.46 | 6.25 | 204.05 | 26.69 | 275.99 | 0.4508 | -862.0 | -735.8 | |
| 1.18 | 3.99 | 0.66 | 2.22 | 8.57 | 204.13 | 26.78 | 281.09 | 0.4558 | 999.7 | 699.4 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 8.27 | 204.01 | 26.65 | 280.46 | 0.4533 | 848.0 | 664.2 | |
| 1.91 | 4.36 | 1.05 | 2.41 | 6.23 | 203.67 | 26.31 | 276.00 | 0.4449 | -909.0 | -798.3 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 8.13 | 203.48 | 26.13 | 280.31 | 0.4449 | 1084.0 | 883.3 | |
| 0.82 | 2.18 | 0.45 | 1.20 | 6.41 | 202.96 | 25.61 | 276.51 | 0.4341 | -916.3 | -714.9 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 6.78 | 202.71 | 25.35 | 277.42 | 0.4306 | 468.0 | 343.9 | |
| 0.00 | 4.63 | 0.00 | 2.54 | 7.24 | 202.53 | 25.18 | 278.54 | 0.4286 | 921.0 | 752.2 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 6.71 | 201.86 | 24.50 | 277.44 | 0.4172 | 778.0 | 663.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 5.96 | 201.58 | 24.23 | 275.67 | 0.4119 | 763.0 | 610.4 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 5.87 | 200.34 | 22.99 | 275.65 | 0.3920 | 837.0 | 656.7 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 9.89 | 199.75 | 22.39 | 286.07 | 0.3922 | 739.0 | 641.5 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 7.33 | 199.45 | 22.10 | 279.65 | 0.3801 | 807.0 | 681.7 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 6.08 | 199.29 | 21.94 | 276.40 | 0.3754 | 729.0 | 585.2 | |
| 0.00 | 1.82 | 0.00 | 0.97 | 5.66 | 199.01 | 21.65 | 275.32 | 0.3704 | 773.0 | 523.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 6.18 | 197.78 | 20.43 | 277.02 | 0.3511 | 762.0 | 531.2 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 6.46 | 197.63 | 20.28 | 277.86 | 0.3491 | 827.0 | 559.2 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 6.16 | 197.49 | 20.13 | 277.03 | 0.3463 | 897.0 | 761.8 | |
| 0.64 | 1.91 | 0.33 | 1.00 | 6.40 | 196.42 | 19.07 | 278.06 | 0.3293 | 1014.1 | 854.1 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 6.62 | 196.24 | 18.88 | 278.78 | 0.3267 | 900.0 | 734.2 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 6.65 | 196.01 | 18.66 | 278.98 | 0.3231 | 812.0 | 574.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 5.52 | 191.97 | 14.62 | 276.59 | 0.2540 | -807.0 | -565.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
