SDO HMI 2014-07-11 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.00 | 220.51 | 30.55 | 113.84 | 7.90 | 162.30 | -15.05 | 73.33 | 0.2684 | -245.5 | -160.8 | |
|
previous
or next observation for the same group /

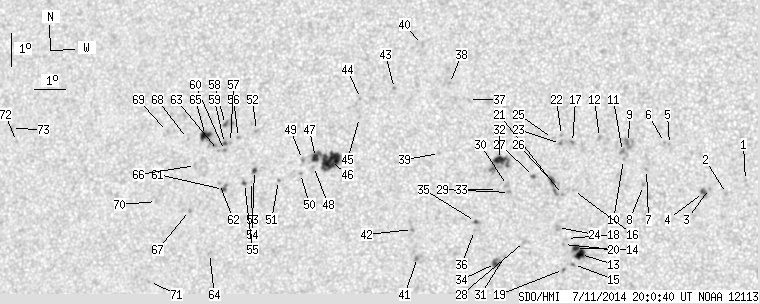

back to the solar disc SDO HMI 2014-07-11 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.59 | 7.85 | 172.57 | -4.78 | 50.65 | 0.1073 | -844.0 | -682.2 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 7.45 | 171.99 | -5.36 | 56.74 | 0.1114 | -856.0 | -683.9 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 7.60 | 171.46 | -5.89 | 58.04 | 0.1204 | -862.0 | -655.8 | |
| 1.54 | 4.81 | 0.77 | 2.40 | 7.48 | 171.28 | -6.07 | 59.68 | 0.1221 | -1204.0 | -854.7 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 8.94 | 170.20 | -7.15 | 54.75 | 0.1512 | -1059.0 | -889.0 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 9.00 | 170.05 | -7.31 | 55.00 | 0.1540 | -909.0 | -739.4 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 8.17 | 169.50 | -7.85 | 61.43 | 0.1546 | -1045.0 | -778.1 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 7.68 | 169.42 | -7.93 | 64.55 | 0.1522 | -927.0 | -737.5 | |
| 0.00 | 8.99 | 0.00 | 4.52 | 8.99 | 168.93 | -8.43 | 58.71 | 0.1702 | -1003.0 | -782.7 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 8.47 | 168.78 | -8.57 | 61.83 | 0.1680 | -992.0 | -812.6 | |
| 0.00 | 2.63 | 0.00 | 1.32 | 8.71 | 168.75 | -8.61 | 60.65 | 0.1705 | -1087.0 | -934.1 | |
| 0.00 | 2.72 | 0.00 | 1.37 | 9.13 | 168.02 | -9.34 | 60.49 | 0.1849 | -738.0 | -556.9 | |
| 5.81 | 14.61 | 2.92 | 7.35 | 5.56 | 167.50 | -9.85 | 80.51 | 0.1735 | -1224.2 | -759.3 | |
| 2.63 | -13.00 | 1.32 | -13.00 | 5.74 | 167.34 | -10.01 | 79.63 | 0.1767 | -1117.4 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 5.25 | 167.29 | -10.07 | 82.42 | 0.1764 | -999.0 | -751.5 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 7.51 | 167.25 | -10.11 | 70.24 | 0.1857 | -807.0 | -590.7 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 8.97 | 167.18 | -10.18 | 63.24 | 0.1963 | 855.0 | 586.9 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 6.04 | 167.06 | -10.30 | 78.25 | 0.1824 | -522.0 | -475.8 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 5.09 | 166.98 | -10.38 | 83.48 | 0.1814 | -978.0 | -782.7 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 5.86 | 166.97 | -10.39 | 79.33 | 0.1834 | -816.0 | -706.1 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 7.38 | 166.90 | -10.45 | 71.44 | 0.1906 | -1039.0 | -858.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 9.18 | 166.83 | -10.53 | 63.04 | 0.2033 | 839.0 | 646.3 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 8.94 | 166.80 | -10.55 | 64.19 | 0.2019 | 984.0 | 785.7 | |
| 0.00 | 4.27 | 0.00 | 2.15 | 6.37 | 166.77 | -10.58 | 76.79 | 0.1884 | -871.0 | -697.9 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 9.09 | 166.55 | -10.81 | 64.04 | 0.2069 | 634.0 | 460.1 | |
| 2.72 | 9.62 | 1.38 | 4.86 | 7.80 | 166.55 | -10.80 | 69.94 | 0.1986 | -1107.8 | -618.1 | |
| 0.45 | 2.09 | 0.23 | 1.06 | 7.92 | 165.98 | -11.37 | 70.29 | 0.2084 | -1110.0 | -849.4 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 5.93 | 165.75 | -11.61 | 79.96 | 0.2041 | -553.0 | -310.8 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 7.42 | 165.24 | -12.11 | 73.54 | 0.2179 | -1002.0 | -842.8 | |
| 0.00 | 3.45 | 0.00 | 1.75 | 7.63 | 165.17 | -12.18 | 72.68 | 0.2200 | -818.0 | -630.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 5.47 | 165.13 | -12.22 | 82.58 | 0.2135 | 771.0 | 536.6 | |
| 6.26 | 20.88 | 3.19 | 10.62 | 8.42 | 164.90 | -12.46 | 69.67 | 0.2285 | -1105.2 | -905.1 | |
| 0.00 | 0.36 | 0.00 | 0.18 | 7.51 | 164.86 | -12.49 | 73.61 | 0.2245 | -813.0 | -741.0 | |
| 2.09 | 6.54 | 1.06 | 3.32 | 5.25 | 164.85 | -12.50 | 83.71 | 0.2178 | 1048.8 | 831.1 | |
| 0.73 | 2.81 | 0.37 | 1.43 | 6.52 | 164.20 | -13.16 | 78.48 | 0.2318 | 982.4 | 807.0 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 6.25 | 164.17 | -13.18 | 79.67 | 0.2314 | 858.0 | 672.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 10.25 | 163.85 | -13.50 | 64.23 | 0.2563 | 973.0 | 796.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 10.73 | 163.22 | -14.13 | 63.53 | 0.2692 | 688.0 | 629.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 8.58 | 162.99 | -14.36 | 71.46 | 0.2598 | -762.0 | -589.6 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 11.91 | 162.30 | -15.06 | 61.12 | 0.2916 | 896.0 | 654.7 | |
| 0.00 | 3.00 | 0.00 | 1.54 | 5.40 | 162.39 | -14.96 | 84.01 | 0.2596 | -1109.0 | -928.4 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 6.25 | 162.21 | -15.14 | 80.84 | 0.2642 | -1021.0 | -803.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 10.54 | 161.47 | -15.89 | 66.53 | 0.2947 | 959.0 | 803.5 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 10.22 | 160.39 | -16.97 | 68.77 | 0.3095 | -956.0 | -808.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 9.64 | 160.38 | -16.97 | 70.58 | 0.3065 | -832.0 | -571.2 | |
| 22.06 | 35.58 | 11.51 | 18.58 | 8.27 | 159.51 | -17.84 | 75.56 | 0.3145 | -1108.6 | -699.5 | |
| 3.81 | -46.00 | 1.99 | -46.00 | 8.39 | 159.02 | -18.33 | 75.54 | 0.3228 | -900.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 8.11 | 158.97 | -18.39 | 76.42 | 0.3227 | -513.0 | -423.1 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 8.32 | 158.60 | -18.75 | 76.03 | 0.3292 | -753.0 | -623.5 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 7.89 | 158.56 | -18.80 | 77.34 | 0.3286 | -921.0 | -719.2 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 7.66 | 157.85 | -19.50 | 78.38 | 0.3393 | -792.0 | -584.5 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 9.17 | 157.05 | -20.30 | 74.56 | 0.3569 | 874.0 | 812.9 | |
| 1.27 | 2.36 | 0.67 | 1.25 | 7.95 | 157.05 | -20.30 | 77.95 | 0.3529 | 843.4 | 638.6 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 7.61 | 156.97 | -20.39 | 78.94 | 0.3533 | -571.0 | -389.9 | |
| 0.73 | 2.00 | 0.38 | 1.06 | 7.54 | 156.74 | -20.61 | 79.22 | 0.3568 | 779.9 | 512.4 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 8.94 | 156.47 | -20.88 | 75.52 | 0.3653 | 1110.0 | 906.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 8.78 | 156.22 | -21.14 | 76.09 | 0.3687 | 952.0 | 844.9 | |
| 0.82 | 6.44 | 0.44 | 3.44 | 9.33 | 156.02 | -21.34 | 74.76 | 0.3737 | 1009.2 | 842.9 | |
| 0.73 | 2.54 | 0.39 | 1.36 | 8.75 | 156.02 | -21.34 | 76.29 | 0.3717 | 1161.5 | 902.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 8.53 | 156.03 | -21.32 | 76.85 | 0.3709 | 898.0 | 732.1 | |
| 1.36 | 4.27 | 0.72 | 2.27 | 7.34 | 156.06 | -21.29 | 80.04 | 0.3672 | 1041.7 | 778.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 7.52 | 155.92 | -21.43 | 79.60 | 0.3699 | 827.0 | 629.5 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 8.53 | 155.83 | -21.52 | 76.96 | 0.3740 | 859.0 | 739.0 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 5.38 | 155.68 | -21.67 | 85.45 | 0.3704 | 860.0 | 704.0 | |
| 5.99 | 13.98 | 3.21 | 7.49 | 8.98 | 155.37 | -21.98 | 76.03 | 0.3826 | 1029.3 | 812.3 | |
| 0.00 | 2.54 | 0.00 | 1.36 | 8.05 | 155.10 | -22.26 | 78.54 | 0.3843 | 632.0 | 574.4 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 6.67 | 154.97 | -22.39 | 82.15 | 0.3835 | 842.0 | 758.4 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 8.87 | 154.78 | -22.57 | 76.59 | 0.3916 | 853.0 | 667.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 9.07 | 154.10 | -23.26 | 76.42 | 0.4028 | 783.0 | 605.4 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 6.92 | 153.86 | -23.50 | 81.81 | 0.4016 | 718.0 | 647.3 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 4.48 | 153.73 | -23.63 | 87.94 | 0.4015 | 742.0 | 524.3 | |
| 0.00 | 0.73 | 0.00 | 0.41 | 8.61 | 148.95 | -28.40 | 79.29 | 0.4806 | 760.0 | 618.5 | |
| 0.00 | 2.09 | 0.00 | 1.18 | 9.00 | 148.74 | -28.61 | 78.54 | 0.4845 | 608.0 | 521.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
