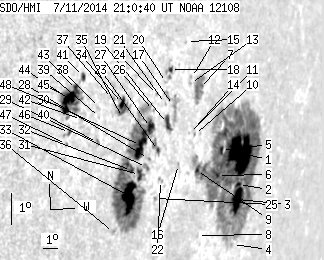

SDO HMI 2014-07-11 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 186.68 | 960.33 | 215.39 | 1135.25 | -7.14 | 241.42 | 64.62 | 260.26 | 0.9092 | 54.2 | 112.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.27 | 536.17 | 79.28 | 704.61 | -7.19 | 244.27 | 67.47 | 260.62 | 0.9304 | 641.4 | 282.5 | |
| 3.45 | -1.00 | 4.66 | -1.00 | -8.16 | 244.43 | 67.63 | 259.61 | 0.9322 | 553.2 | 999999 | |
| 18.79 | -1.00 | 25.61 | -1.00 | -8.63 | 244.52 | 67.72 | 259.12 | 0.9331 | 384.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 2.13 | -10.05 | 244.68 | 67.88 | 257.64 | 0.9353 | -186.0 | -184.0 | |
| 2.63 | -1.00 | 3.30 | -1.00 | -7.00 | 242.73 | 65.93 | 260.62 | 0.9202 | 938.8 | 999999 | |
| 1.63 | -1.00 | 2.05 | -1.00 | -7.77 | 242.64 | 65.84 | 259.78 | 0.9203 | 944.2 | 999999 | |
| 0.00 | 21.42 | 0.00 | 24.55 | -4.95 | 240.66 | 63.86 | 262.57 | 0.9037 | 655.0 | 423.9 | |
| 0.00 | 0.91 | 0.00 | 1.11 | -9.57 | 241.75 | 64.95 | 257.69 | 0.9161 | 413.0 | 387.0 | |
| 1.63 | -1.00 | 1.93 | -1.00 | -7.51 | 241.02 | 64.22 | 259.82 | 0.9088 | 224.3 | 999999 | |
| 0.00 | 1.09 | 0.00 | 1.25 | -6.36 | 240.60 | 63.80 | 261.01 | 0.9046 | 481.0 | 484.5 | |
| 0.00 | 0.82 | 0.00 | 0.94 | -6.20 | 240.49 | 63.69 | 261.17 | 0.9036 | 550.0 | 543.6 | |
| 0.00 | 1.09 | 0.00 | 1.22 | -4.57 | 240.04 | 63.24 | 262.91 | 0.8988 | -26.0 | 32.8 | |
| 0.00 | 1.18 | 0.00 | 1.32 | -4.75 | 240.00 | 63.20 | 262.70 | 0.8986 | -200.0 | -108.4 | |
| 0.00 | 0.73 | 0.00 | 0.82 | -6.31 | 240.23 | 63.43 | 261.01 | 0.9018 | 434.0 | 402.2 | |
| 0.00 | 0.54 | 0.00 | 0.60 | -3.43 | 239.55 | 62.75 | 264.11 | 0.8940 | 515.0 | 484.0 | |
| 0.00 | 1.45 | 0.00 | 1.63 | -7.24 | 239.70 | 62.90 | 259.91 | 0.8988 | 273.0 | 239.4 | |
| 0.00 | 17.88 | 0.00 | 19.37 | -5.37 | 238.96 | 62.16 | 261.88 | 0.8912 | 277.0 | 155.4 | |
| 1.72 | 7.08 | 1.84 | 7.53 | -4.23 | 238.59 | 61.79 | 263.09 | 0.8871 | -479.4 | -389.9 | |
| 5.81 | 9.80 | 6.25 | 10.56 | -5.90 | 238.67 | 61.87 | 261.24 | 0.8894 | -273.0 | 82.9 | |
| 0.00 | 1.09 | 0.00 | 1.15 | -4.62 | 238.38 | 61.58 | 262.63 | 0.8858 | -478.0 | -244.8 | |
| 0.00 | 1.27 | 0.00 | 1.35 | -5.27 | 238.42 | 61.62 | 261.91 | 0.8868 | -306.0 | -240.8 | |
| 0.00 | 1.91 | 0.00 | 2.06 | -7.66 | 238.60 | 61.80 | 259.26 | 0.8909 | -173.0 | -110.6 | |
| 1.72 | 8.53 | 1.83 | 9.02 | -6.71 | 238.25 | 61.45 | 260.27 | 0.8870 | 8.1 | -104.3 | |
| 0.00 | 1.45 | 0.00 | 1.51 | -4.96 | 237.86 | 61.06 | 262.18 | 0.8819 | -490.0 | -407.6 | |
| 0.00 | 1.82 | 0.00 | 1.96 | -8.21 | 238.41 | 61.61 | 258.62 | 0.8901 | 350.0 | 268.5 | |
| 0.00 | 0.64 | 0.00 | 0.66 | -5.44 | 237.68 | 60.88 | 261.61 | 0.8810 | -247.0 | -246.4 | |
| 7.17 | 244.53 | 7.45 | 249.23 | -5.96 | 237.58 | 60.78 | 261.01 | 0.8808 | -368.8 | -398.7 | |
| 0.00 | 1.45 | 0.00 | 1.52 | -6.92 | 237.65 | 60.85 | 259.94 | 0.8824 | -236.0 | -158.4 | |
| 0.00 | 3.99 | 0.00 | 4.17 | -7.20 | 237.58 | 60.78 | 259.62 | 0.8822 | -205.0 | -178.3 | |
| 18.70 | -27.00 | 19.17 | -27.00 | -6.48 | 237.05 | 60.25 | 260.33 | 0.8770 | -746.5 | 999999 | |
| 4.90 | -27.00 | 5.06 | -27.00 | -7.39 | 237.19 | 60.39 | 259.33 | 0.8792 | -458.5 | 999999 | |
| 1.36 | -27.00 | 1.38 | -27.00 | -7.23 | 236.65 | 59.85 | 259.42 | 0.8746 | -813.7 | 999999 | |
| 26.32 | -27.00 | 26.86 | -27.00 | -8.04 | 236.72 | 59.92 | 258.51 | 0.8762 | -794.6 | 999999 | |
| 4.08 | 19.24 | 3.99 | 18.83 | -5.10 | 235.72 | 58.92 | 261.69 | 0.8641 | 592.5 | 451.1 | |
| 0.00 | 1.63 | 0.00 | 1.60 | -5.54 | 235.79 | 58.99 | 261.20 | 0.8652 | 296.0 | 330.6 | |
| 0.00 | 2.18 | 0.00 | 2.19 | -9.12 | 236.01 | 59.21 | 257.16 | 0.8719 | -490.0 | -372.0 | |
| 0.00 | 2.45 | 0.00 | 2.35 | -4.91 | 235.10 | 58.30 | 261.82 | 0.8584 | 150.0 | 312.3 | |
| 0.00 | 0.91 | 0.00 | 0.85 | -5.14 | 234.38 | 57.58 | 261.43 | 0.8522 | 468.0 | 447.7 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -5.46 | 234.42 | 57.62 | 261.08 | 0.8530 | 501.0 | 477.3 | |
| 0.00 | 2.18 | 0.00 | 2.06 | -6.23 | 234.43 | 57.63 | 260.18 | 0.8541 | 677.0 | 585.5 | |
| 1.91 | 55.19 | 1.74 | 49.69 | -4.13 | 233.34 | 56.54 | 262.46 | 0.8415 | -451.1 | -228.9 | |
| 0.00 | 1.91 | 0.00 | 1.75 | -5.46 | 233.40 | 56.60 | 260.91 | 0.8437 | 387.0 | 354.4 | |
| 3.81 | -41.00 | 3.45 | -41.00 | -4.51 | 233.00 | 56.20 | 261.96 | 0.8387 | -542.5 | 999999 | |
| 1.54 | -41.00 | 1.40 | -41.00 | -4.94 | 232.99 | 56.19 | 261.45 | 0.8392 | 288.0 | 999999 | |
| 14.43 | -41.00 | 12.94 | -41.00 | -4.76 | 232.64 | 55.84 | 261.60 | 0.8357 | -818.1 | 999999 | |
| 1.00 | 4.90 | 0.90 | 4.42 | -5.82 | 232.79 | 55.99 | 260.37 | 0.8385 | -261.6 | -356.8 | |
| 0.00 | 1.09 | 0.00 | 0.98 | -6.19 | 232.68 | 55.88 | 259.92 | 0.8380 | -519.0 | -418.9 | |
| 4.81 | -41.00 | 4.30 | -41.00 | -5.09 | 232.46 | 55.66 | 261.18 | 0.8344 | -779.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
