SDO HMI 2014-07-11 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.35 | 0.00 | 5.53 | -22.02 | 197.34 | 20.54 | 216.48 | 0.5460 | -139.3 | -237.0 | |
|
previous
or next observation for the same group /

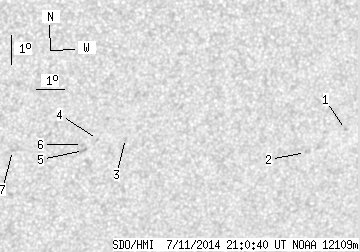

back to the solar disc SDO HMI 2014-07-11 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.62 | -21.71 | 204.86 | 28.06 | 225.73 | 0.6126 | 560.0 | 448.2 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -22.44 | 203.53 | 26.73 | 223.49 | 0.6063 | 593.0 | 535.1 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -21.77 | 196.95 | 20.15 | 216.61 | 0.5385 | 535.0 | 441.4 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -21.77 | 195.98 | 19.18 | 215.28 | 0.5302 | -582.0 | -485.0 | |
| 0.00 | 2.90 | 0.00 | 1.70 | -22.14 | 195.54 | 18.74 | 214.26 | 0.5307 | -741.0 | -607.3 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -21.93 | 195.48 | 18.68 | 214.40 | 0.5278 | -582.0 | -576.1 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -22.08 | 193.08 | 16.28 | 210.74 | 0.5103 | -758.0 | -633.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
