SDO HMI 2014-07-11 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.53 | 227.01 | 33.78 | 117.13 | 7.94 | 161.91 | -14.89 | 73.25 | 0.2659 | -243.8 | -107.0 | |
|
previous
or next observation for the same group /

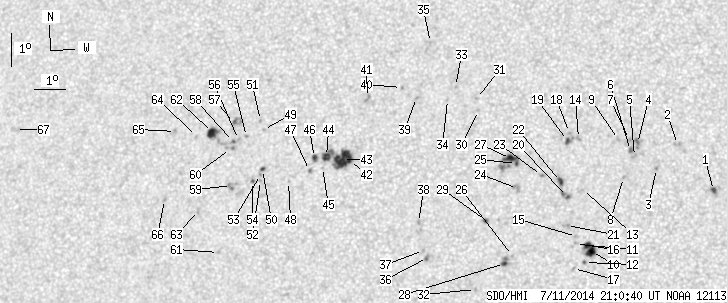

back to the solar disc SDO HMI 2014-07-11 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.54 | 3.27 | 0.77 | 1.63 | 7.49 | 171.31 | -5.49 | 57.09 | 0.1135 | -1174.6 | -923.0 | |
| 0.00 | 3.18 | 0.00 | 1.59 | 8.89 | 170.18 | -6.62 | 53.01 | 0.1433 | -759.0 | -689.1 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 8.15 | 169.54 | -7.26 | 59.70 | 0.1456 | -1072.0 | -875.8 | |
| 0.00 | 4.99 | 0.00 | 2.51 | 8.91 | 168.93 | -7.87 | 57.42 | 0.1612 | -1178.0 | -924.6 | |
| 0.00 | 2.27 | 0.00 | 1.14 | 8.51 | 168.85 | -7.95 | 59.84 | 0.1590 | -956.0 | -827.4 | |
| 0.00 | 2.45 | 0.00 | 1.23 | 8.70 | 168.72 | -8.08 | 59.24 | 0.1624 | -1002.0 | -916.5 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 9.03 | 168.68 | -8.12 | 57.59 | 0.1659 | -715.0 | -602.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 7.87 | 168.52 | -8.28 | 64.41 | 0.1589 | -914.0 | -749.8 | |
| 0.00 | 2.27 | 0.00 | 1.14 | 9.03 | 168.34 | -8.46 | 58.64 | 0.1709 | -801.0 | -527.1 | |
| 6.63 | 15.98 | 3.33 | 8.02 | 5.60 | 167.56 | -9.24 | 79.70 | 0.1631 | -1235.0 | -731.9 | |
| 3.63 | -10.00 | 1.82 | -10.00 | 5.78 | 167.44 | -9.36 | 78.74 | 0.1658 | -1131.8 | 999999 | |
| 0.36 | 1.82 | 0.18 | 0.91 | 5.27 | 167.35 | -9.45 | 81.93 | 0.1659 | -927.5 | -702.8 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 7.49 | 167.25 | -9.55 | 69.35 | 0.1766 | -747.0 | -471.4 | |
| 0.00 | 2.09 | 0.00 | 1.05 | 9.05 | 167.09 | -9.71 | 61.86 | 0.1898 | 1003.0 | 745.7 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 6.06 | 167.09 | -9.71 | 77.55 | 0.1725 | -566.0 | -401.6 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 5.84 | 167.06 | -9.74 | 78.81 | 0.1723 | -863.0 | -759.8 | |
| 0.00 | 2.09 | 0.00 | 1.05 | 5.08 | 167.01 | -9.79 | 83.26 | 0.1713 | -903.0 | -662.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 9.23 | 166.80 | -10.00 | 61.69 | 0.1955 | 785.0 | 593.3 | |
| 1.63 | 5.17 | 0.83 | 2.61 | 8.98 | 166.75 | -10.05 | 62.95 | 0.1945 | 977.8 | 803.4 | |
| 0.73 | 11.53 | 0.37 | 5.81 | 7.27 | 166.79 | -10.01 | 71.33 | 0.1829 | -1188.1 | -800.7 | |
| 0.00 | 3.36 | 0.00 | 1.69 | 6.39 | 166.77 | -10.03 | 76.08 | 0.1791 | -950.0 | -774.4 | |
| 2.36 | -20.00 | 1.19 | -20.00 | 7.73 | 166.56 | -10.24 | 69.39 | 0.1891 | -1066.1 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 7.90 | 165.96 | -10.84 | 69.55 | 0.1997 | -1141.0 | -809.0 | |
| 0.00 | 5.63 | 0.00 | 2.85 | 7.50 | 165.22 | -11.58 | 72.55 | 0.2096 | -1012.0 | -737.2 | |
| 1.09 | 18.88 | 0.55 | 9.58 | 8.26 | 165.17 | -11.63 | 69.19 | 0.2145 | -1197.8 | -876.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 5.45 | 165.11 | -11.69 | 82.39 | 0.2045 | 786.0 | 533.0 | |
| 5.90 | -25.00 | 2.99 | -25.00 | 8.41 | 164.97 | -11.83 | 68.83 | 0.2184 | -1099.6 | 999999 | |
| 1.63 | 6.17 | 0.83 | 3.13 | 5.21 | 164.86 | -11.94 | 83.71 | 0.2082 | 1056.9 | 786.2 | |
| 1.00 | 2.09 | 0.51 | 1.06 | 6.51 | 164.24 | -12.56 | 78.09 | 0.2218 | 1009.5 | 855.1 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 9.86 | 163.91 | -12.89 | 64.66 | 0.2442 | 845.0 | 608.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 10.23 | 163.83 | -12.97 | 63.42 | 0.2480 | 979.0 | 734.9 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 4.40 | 163.97 | -12.83 | 87.70 | 0.2226 | -902.0 | -656.4 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 10.59 | 163.15 | -13.65 | 63.26 | 0.2609 | 817.0 | 680.5 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 10.19 | 162.91 | -13.89 | 65.04 | 0.2617 | 831.0 | 642.1 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 11.93 | 162.29 | -14.51 | 60.23 | 0.2837 | 910.0 | 714.1 | |
| 0.00 | 2.81 | 0.00 | 1.44 | 5.35 | 162.44 | -14.36 | 84.00 | 0.2494 | -1167.0 | -926.1 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 5.57 | 162.31 | -14.49 | 83.21 | 0.2519 | -930.0 | -734.5 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 6.42 | 162.13 | -14.67 | 79.96 | 0.2568 | -933.0 | -679.6 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 10.23 | 161.92 | -14.88 | 66.28 | 0.2772 | 984.0 | 765.6 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 10.53 | 161.43 | -15.37 | 65.95 | 0.2867 | 895.0 | 763.3 | |
| 0.00 | 3.54 | 0.00 | 1.84 | 10.21 | 160.35 | -16.45 | 68.28 | 0.3014 | -737.0 | -700.0 | |
| 2.18 | 38.03 | 1.13 | 19.78 | 8.27 | 159.86 | -16.94 | 74.94 | 0.2999 | -1267.8 | -668.8 | |
| 19.52 | -42.00 | 10.14 | -42.00 | 8.29 | 159.63 | -17.17 | 75.03 | 0.3037 | -1102.3 | 999999 | |
| 4.90 | -42.00 | 2.55 | -42.00 | 8.38 | 159.11 | -17.69 | 75.15 | 0.3123 | -897.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 8.04 | 159.00 | -17.80 | 76.29 | 0.3130 | -451.0 | -353.4 | |
| 2.00 | 3.54 | 1.04 | 1.85 | 8.34 | 158.72 | -18.08 | 75.53 | 0.3184 | -624.8 | -367.0 | |
| 0.36 | 1.63 | 0.19 | 0.85 | 7.94 | 158.58 | -18.22 | 76.86 | 0.3194 | -768.5 | -491.6 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 7.59 | 157.92 | -18.88 | 78.30 | 0.3291 | -811.0 | -554.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 9.16 | 157.02 | -19.78 | 74.27 | 0.3486 | 938.0 | 719.1 | |
| 1.18 | 2.00 | 0.62 | 1.05 | 7.94 | 157.05 | -19.75 | 77.72 | 0.3440 | 834.4 | 587.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 9.43 | 156.91 | -19.89 | 73.58 | 0.3515 | 890.0 | 738.4 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 7.60 | 157.00 | -19.80 | 78.71 | 0.3438 | -555.0 | -342.9 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 7.78 | 156.99 | -19.81 | 78.19 | 0.3445 | 779.0 | 590.5 | |
| 0.45 | 2.18 | 0.24 | 1.15 | 7.56 | 156.74 | -20.06 | 78.94 | 0.3479 | 875.4 | 533.8 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 8.93 | 156.47 | -20.33 | 75.24 | 0.3564 | 1133.0 | 877.2 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 8.83 | 156.22 | -20.58 | 75.66 | 0.3601 | 907.0 | 761.2 | |
| 0.82 | 6.35 | 0.43 | 3.38 | 9.35 | 156.05 | -20.75 | 74.36 | 0.3645 | 1030.1 | 879.4 | |
| 0.54 | 2.27 | 0.29 | 1.21 | 8.77 | 156.06 | -20.74 | 75.93 | 0.3624 | 1118.3 | 907.1 | |
| 0.00 | 4.90 | 0.00 | 2.60 | 7.42 | 156.06 | -20.74 | 79.61 | 0.3585 | 800.0 | 858.8 | |
| 0.00 | 2.81 | 0.00 | 1.50 | 8.55 | 155.97 | -20.83 | 76.56 | 0.3631 | 726.0 | 748.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 5.37 | 155.72 | -21.08 | 85.41 | 0.3608 | 898.0 | 749.0 | |
| 7.08 | 14.43 | 3.78 | 7.70 | 9.03 | 155.35 | -21.45 | 75.63 | 0.3745 | 1063.4 | 778.7 | |
| 0.00 | 2.72 | 0.00 | 1.45 | 6.64 | 155.01 | -21.79 | 82.11 | 0.3738 | 780.0 | 679.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 8.89 | 154.82 | -21.98 | 76.25 | 0.3823 | 851.0 | 674.8 | |
| 0.00 | 1.91 | 0.00 | 1.03 | 9.03 | 154.11 | -22.69 | 76.26 | 0.3938 | 868.0 | 746.6 | |
| 0.00 | 1.82 | 0.00 | 0.98 | 6.94 | 153.87 | -22.93 | 81.62 | 0.3926 | 858.0 | 689.1 | |
| 0.00 | 5.08 | 0.00 | 2.86 | 8.93 | 148.65 | -28.15 | 78.56 | 0.4775 | 623.0 | 551.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
