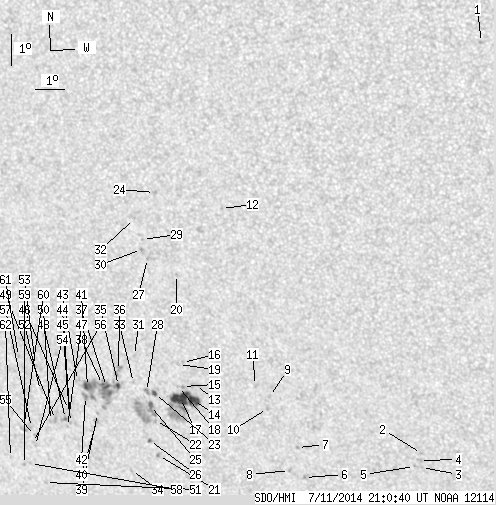

SDO HMI 2014-07-11 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.03 | 225.97 | 23.56 | 140.88 | -19.94 | 147.85 | -28.95 | 131.23 | 0.6066 | 258.8 | 31.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.91 | -8.33 | 160.64 | -16.16 | 127.40 | 0.3482 | 826.0 | 589.9 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -21.66 | 157.46 | -19.34 | 144.36 | 0.5303 | 735.0 | 618.5 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -22.14 | 157.39 | -19.41 | 144.83 | 0.5364 | 731.0 | 591.8 | |
| 0.00 | 2.27 | 0.00 | 1.33 | -21.90 | 157.36 | -19.44 | 144.50 | 0.5339 | 663.0 | 603.1 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -22.11 | 157.15 | -19.65 | 144.47 | 0.5381 | 523.0 | 388.8 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -22.59 | 153.17 | -23.63 | 140.07 | 0.5787 | 727.0 | 548.0 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -21.57 | 153.10 | -23.70 | 138.74 | 0.5689 | 614.0 | 503.8 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -22.36 | 152.67 | -24.13 | 139.22 | 0.5810 | 701.0 | 533.6 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -19.88 | 152.39 | -24.41 | 135.75 | 0.5590 | 818.0 | 556.4 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -20.29 | 152.25 | -24.55 | 136.13 | 0.5644 | 608.0 | 481.8 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -19.53 | 151.95 | -24.85 | 134.78 | 0.5601 | 707.0 | 570.9 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -13.78 | 151.57 | -25.23 | 125.82 | 0.5126 | 716.0 | 515.0 | |
| 0.00 | 4.27 | 0.00 | 2.60 | -19.60 | 149.78 | -27.02 | 132.56 | 0.5832 | 367.0 | 544.4 | |
| 8.44 | 57.91 | 5.17 | 35.66 | -20.10 | 149.61 | -27.19 | 133.06 | 0.5895 | 975.6 | 185.9 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -19.65 | 149.30 | -27.50 | 132.14 | 0.5887 | 846.0 | 754.3 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -18.85 | 149.44 | -27.36 | 131.21 | 0.5802 | 799.0 | 561.7 | |
| 15.70 | -14.00 | 9.65 | -14.00 | -20.05 | 149.15 | -27.65 | 132.53 | 0.5938 | 859.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -19.65 | 149.15 | -27.65 | 132.00 | 0.5903 | 671.0 | 597.9 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -18.92 | 149.29 | -27.51 | 131.15 | 0.5825 | 770.0 | 630.6 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -15.96 | 149.70 | -27.10 | 127.32 | 0.5529 | 749.0 | 570.7 | |
| 0.00 | 1.91 | 0.00 | 1.20 | -22.01 | 147.92 | -28.88 | 133.86 | 0.6233 | 697.0 | 593.7 | |
| 0.00 | 1.63 | 0.00 | 1.02 | -20.82 | 148.07 | -28.73 | 132.50 | 0.6116 | 399.0 | 315.7 | |
| 1.63 | 3.00 | 1.01 | 1.86 | -19.92 | 148.22 | -28.58 | 131.45 | 0.6024 | 802.2 | 637.2 | |
| 0.00 | 2.18 | 0.00 | 1.28 | -13.34 | 149.28 | -27.52 | 122.85 | 0.5373 | 603.0 | 557.7 | |
| 1.82 | 30.13 | 1.13 | 18.84 | -20.32 | 147.98 | -28.82 | 131.77 | 0.6082 | 762.5 | 30.2 | |
| 0.73 | 1.82 | 0.46 | 1.15 | -21.51 | 147.69 | -29.11 | 133.02 | 0.6212 | 546.2 | 440.2 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -15.48 | 148.74 | -28.06 | 125.67 | 0.5602 | 793.0 | 662.5 | |
| 0.00 | 3.27 | 0.00 | 2.03 | -19.86 | 147.93 | -28.87 | 131.11 | 0.6049 | 599.0 | 545.9 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -14.87 | 148.65 | -28.15 | 124.66 | 0.5566 | 795.0 | 680.1 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -15.19 | 148.56 | -28.24 | 125.08 | 0.5600 | 767.0 | 614.4 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -18.68 | 147.72 | -29.08 | 129.31 | 0.5973 | 711.0 | 597.9 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -14.20 | 148.45 | -28.35 | 123.45 | 0.5538 | 664.0 | 490.6 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -19.58 | 147.51 | -29.29 | 130.33 | 0.6070 | 640.0 | 436.9 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -22.56 | 146.77 | -30.03 | 133.48 | 0.6392 | -667.0 | -610.3 | |
| 1.63 | 52.83 | 1.02 | 33.36 | -19.70 | 146.92 | -29.88 | 129.96 | 0.6141 | 724.6 | -162.4 | |
| 0.00 | 5.17 | 0.00 | 3.23 | -19.19 | 147.03 | -29.77 | 129.39 | 0.6090 | 704.0 | 594.4 | |
| 2.00 | -35.00 | 1.26 | -35.00 | -19.75 | 146.46 | -30.34 | 129.62 | 0.6194 | 454.6 | 999999 | |
| 0.82 | -35.00 | 0.51 | -35.00 | -19.68 | 146.33 | -30.47 | 129.42 | 0.6204 | 560.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -20.66 | 145.92 | -30.88 | 130.35 | 0.6324 | -748.0 | -588.1 | |
| 0.00 | 2.63 | 0.00 | 1.69 | -20.94 | 145.82 | -30.98 | 130.61 | 0.6355 | -784.0 | -676.9 | |
| 4.72 | -35.00 | 3.00 | -35.00 | -19.77 | 145.74 | -31.06 | 129.03 | 0.6272 | -230.6 | 999999 | |
| 0.00 | 3.54 | 0.00 | 2.26 | -20.11 | 145.59 | -31.21 | 129.34 | 0.6314 | -896.0 | -741.7 | |
| 0.00 | 1.82 | 0.00 | 1.15 | -19.58 | 145.40 | -31.40 | 128.49 | 0.6294 | -694.0 | -607.5 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -21.01 | 144.81 | -31.99 | 129.84 | 0.6465 | -689.0 | -588.9 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -20.74 | 144.83 | -31.97 | 129.52 | 0.6441 | -811.0 | -680.1 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -20.57 | 144.83 | -31.97 | 129.31 | 0.6429 | -744.0 | -679.5 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -21.15 | 144.66 | -32.14 | 129.90 | 0.6491 | -655.0 | -557.8 | |
| 0.54 | 3.09 | 0.35 | 2.00 | -20.88 | 144.64 | -32.16 | 129.55 | 0.6472 | -915.5 | -741.8 | |
| 0.00 | 1.82 | 0.00 | 1.18 | -20.93 | 144.24 | -32.56 | 129.28 | 0.6516 | -846.0 | -741.0 | |
| 0.00 | 1.36 | 0.00 | 0.89 | -20.97 | 144.04 | -32.76 | 129.17 | 0.6540 | -594.0 | -571.7 | |
| 0.00 | 1.54 | 0.00 | 1.04 | -23.10 | 143.27 | -33.53 | 131.20 | 0.6775 | -547.0 | -498.4 | |
| 0.00 | 0.64 | 0.00 | 0.41 | -19.97 | 143.89 | -32.91 | 127.78 | 0.6482 | -479.0 | -461.1 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -19.15 | 143.89 | -32.91 | 126.69 | 0.6422 | -590.0 | -474.9 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -21.84 | 143.23 | -33.57 | 129.62 | 0.6687 | -620.0 | -543.6 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -21.50 | 143.28 | -33.52 | 129.24 | 0.6657 | -797.0 | -656.8 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -21.75 | 143.13 | -33.67 | 129.43 | 0.6689 | -533.0 | -394.7 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -21.24 | 143.23 | -33.57 | 128.87 | 0.6643 | -629.0 | -504.2 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -22.47 | 142.86 | -33.94 | 130.10 | 0.6769 | -604.0 | -513.1 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -22.51 | 142.60 | -34.20 | 129.96 | 0.6797 | -584.0 | -498.4 | |
| 0.00 | 3.09 | 0.00 | 2.05 | -21.28 | 142.90 | -33.90 | 128.67 | 0.6679 | -549.0 | -404.5 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -18.87 | 143.30 | -33.50 | 125.87 | 0.6467 | -774.0 | -569.6 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -22.29 | 142.11 | -34.69 | 129.32 | 0.6831 | -514.0 | -387.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
