SDO HMI 2014-07-11 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 173.46 | 932.43 | 204.79 | 1124.33 | -7.15 | 241.35 | 65.10 | 260.32 | 0.9126 | 25.0 | 107.2 | |
|
previous
or next observation for the same group /

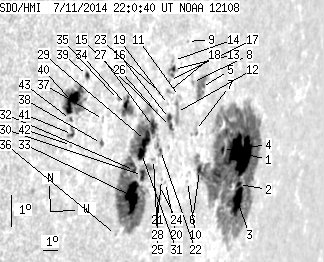

back to the solar disc SDO HMI 2014-07-11 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.92 | 516.40 | 76.56 | 695.00 | -7.19 | 244.22 | 67.97 | 260.68 | 0.9335 | 633.6 | 283.5 | |
| 2.90 | -1.00 | 4.03 | -1.00 | -8.17 | 244.38 | 68.13 | 259.67 | 0.9353 | 403.8 | 999999 | |
| 17.70 | -1.00 | 24.70 | -1.00 | -8.67 | 244.48 | 68.24 | 259.15 | 0.9363 | 383.6 | 999999 | |
| 2.63 | -1.00 | 3.37 | -1.00 | -7.00 | 242.72 | 66.47 | 260.69 | 0.9238 | 887.6 | 999999 | |
| 0.00 | 17.88 | 0.00 | 20.93 | -4.92 | 240.67 | 64.43 | 262.67 | 0.9079 | 632.0 | 417.6 | |
| 2.54 | -1.00 | 3.06 | -1.00 | -7.52 | 241.13 | 64.88 | 259.90 | 0.9135 | 157.1 | 999999 | |
| 0.00 | 5.63 | 0.00 | 6.59 | -6.24 | 240.51 | 64.27 | 261.21 | 0.9079 | 602.0 | 430.1 | |
| 0.00 | 1.54 | 0.00 | 1.76 | -4.73 | 240.00 | 63.76 | 262.80 | 0.9028 | -116.0 | -17.1 | |
| 0.00 | 0.91 | 0.00 | 1.01 | -3.43 | 239.47 | 63.23 | 264.16 | 0.8977 | 335.0 | 354.6 | |
| 0.00 | 0.91 | 0.00 | 1.06 | -7.81 | 240.34 | 64.10 | 259.47 | 0.9082 | -200.0 | -126.4 | |
| 0.00 | 2.18 | 0.00 | 2.42 | -5.11 | 239.17 | 62.93 | 262.27 | 0.8968 | 205.0 | 194.6 | |
| 0.00 | 9.80 | 0.00 | 10.88 | -5.59 | 239.06 | 62.81 | 261.72 | 0.8964 | 330.0 | 273.7 | |
| 1.82 | 7.81 | 1.97 | 8.47 | -4.24 | 238.63 | 62.39 | 263.16 | 0.8919 | -398.1 | -377.1 | |
| 0.00 | 1.27 | 0.00 | 1.38 | -3.96 | 238.59 | 62.35 | 263.47 | 0.8913 | -356.0 | -258.3 | |
| 2.27 | 11.26 | 2.50 | 12.36 | -6.00 | 238.73 | 62.49 | 261.21 | 0.8944 | -204.3 | 125.8 | |
| 2.90 | -15.00 | 3.17 | -15.00 | -5.75 | 238.62 | 62.37 | 261.48 | 0.8932 | -330.4 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.57 | -4.57 | 238.41 | 62.17 | 262.77 | 0.8905 | -488.0 | -341.4 | |
| 0.00 | 1.91 | 0.00 | 2.06 | -4.90 | 238.40 | 62.16 | 262.39 | 0.8907 | -444.0 | -326.6 | |
| 0.00 | 0.64 | 0.00 | 0.69 | -5.31 | 238.47 | 62.22 | 261.95 | 0.8916 | -203.0 | -221.3 | |
| 0.00 | 0.91 | 0.00 | 1.01 | -7.74 | 238.80 | 62.56 | 259.30 | 0.8968 | -114.0 | -103.1 | |
| 0.00 | 0.73 | 0.00 | 0.80 | -7.63 | 238.50 | 62.26 | 259.37 | 0.8944 | -130.0 | -171.0 | |
| 1.09 | 238.73 | 1.18 | 247.79 | -6.71 | 238.22 | 61.97 | 260.35 | 0.8911 | 19.8 | -386.8 | |
| 0.00 | 1.27 | 0.00 | 1.35 | -4.90 | 237.81 | 61.57 | 262.31 | 0.8860 | -515.0 | -391.8 | |
| 0.00 | 1.54 | 0.00 | 1.69 | -7.81 | 238.42 | 62.17 | 259.16 | 0.8939 | -323.0 | -244.4 | |
| 0.00 | 4.45 | 0.00 | 4.89 | -8.18 | 238.38 | 62.14 | 258.74 | 0.8941 | 301.0 | 144.5 | |
| 0.00 | 1.18 | 0.00 | 1.25 | -5.48 | 237.71 | 61.47 | 261.65 | 0.8858 | -283.0 | -253.2 | |
| 6.72 | -22.00 | 7.10 | -22.00 | -5.93 | 237.60 | 61.36 | 261.12 | 0.8854 | -436.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.36 | -6.97 | 237.82 | 61.57 | 260.00 | 0.8883 | -333.0 | -240.6 | |
| 10.53 | -22.00 | 11.00 | -22.00 | -6.34 | 237.17 | 60.92 | 260.60 | 0.8824 | -736.8 | 999999 | |
| 4.63 | 15.07 | 4.87 | 15.93 | -7.42 | 237.21 | 60.97 | 259.39 | 0.8840 | -427.5 | -193.7 | |
| 7.99 | -22.00 | 8.31 | -22.00 | -6.73 | 237.00 | 60.75 | 260.13 | 0.8814 | -772.1 | 999999 | |
| 1.36 | -22.00 | 1.41 | -22.00 | -7.23 | 236.66 | 60.42 | 259.51 | 0.8793 | -794.5 | 999999 | |
| 26.60 | -22.00 | 27.62 | -22.00 | -8.05 | 236.73 | 60.48 | 258.61 | 0.8809 | -782.5 | 999999 | |
| 3.90 | 19.61 | 3.88 | 19.55 | -5.14 | 235.78 | 59.53 | 261.74 | 0.8694 | 635.2 | 418.3 | |
| 0.00 | 1.36 | 0.00 | 1.34 | -4.95 | 235.27 | 59.02 | 261.88 | 0.8648 | 380.0 | 391.6 | |
| 0.00 | 0.73 | 0.00 | 0.74 | -9.18 | 235.97 | 59.72 | 257.19 | 0.8762 | -296.0 | -337.0 | |
| 0.00 | 1.82 | 0.00 | 1.74 | -5.52 | 234.46 | 58.22 | 261.10 | 0.8584 | 495.0 | 426.6 | |
| 0.82 | 2.63 | 0.79 | 2.53 | -6.26 | 234.47 | 58.22 | 260.24 | 0.8595 | 606.0 | 509.1 | |
| 1.72 | 3.36 | 1.60 | 3.11 | -4.10 | 233.35 | 57.11 | 262.58 | 0.8467 | -415.1 | -247.9 | |
| 17.88 | 50.29 | 16.26 | 45.85 | -4.86 | 232.60 | 56.35 | 261.57 | 0.8406 | -797.3 | -247.1 | |
| 1.00 | 5.72 | 0.91 | 5.23 | -5.88 | 232.74 | 56.50 | 260.39 | 0.8434 | -403.0 | -396.6 | |
| 0.00 | 0.54 | 0.00 | 0.50 | -6.22 | 232.74 | 56.50 | 259.99 | 0.8438 | -368.0 | -324.5 | |
| 0.54 | 1.63 | 0.50 | 1.49 | -5.41 | 232.56 | 56.32 | 260.91 | 0.8410 | -458.5 | -365.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
