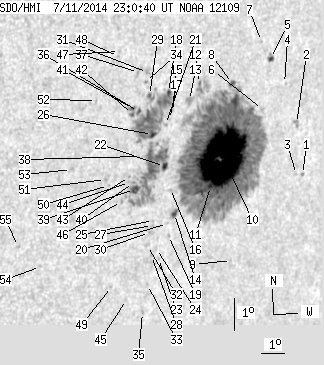

SDO HMI 2014-07-11 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 189.74 | 1104.51 | 138.99 | 801.26 | -7.85 | 221.18 | 45.49 | 255.33 | 0.7323 | 737.6 | 300.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 1.09 | -8.76 | 225.80 | 50.11 | 255.49 | 0.7855 | 488.0 | 437.3 | |
| 0.00 | 3.81 | 0.00 | 2.98 | -7.15 | 225.24 | 49.55 | 257.38 | 0.7760 | 612.0 | 528.2 | |
| 0.00 | 1.00 | 0.00 | 0.79 | -8.75 | 225.51 | 49.81 | 255.43 | 0.7824 | 494.0 | 404.6 | |
| 0.00 | 0.45 | 0.00 | 0.35 | -5.87 | 224.51 | 48.82 | 258.84 | 0.7654 | -228.0 | -238.4 | |
| 1.91 | 4.54 | 1.44 | 3.42 | -5.06 | 223.77 | 48.08 | 259.72 | 0.7556 | 574.8 | 496.7 | |
| 0.00 | 2.54 | 0.00 | 1.92 | -6.62 | 223.58 | 47.89 | 257.63 | 0.7567 | 250.0 | 206.2 | |
| 0.00 | 0.91 | 0.00 | 0.68 | -4.51 | 223.31 | 47.62 | 260.34 | 0.7493 | 513.0 | 432.9 | |
| 1.82 | 798.03 | 1.33 | 586.86 | -5.74 | 222.12 | 46.43 | 258.42 | 0.7381 | -524.2 | 347.1 | |
| 0.00 | 0.91 | 0.00 | 0.69 | -11.30 | 222.96 | 47.27 | 251.43 | 0.7621 | -615.0 | -476.3 | |
| 166.58 | -8.00 | 122.67 | -8.00 | -7.99 | 221.96 | 46.27 | 255.39 | 0.7417 | 1171.7 | 999999 | |
| 0.27 | -8.00 | 0.20 | -8.00 | -8.91 | 221.56 | 45.87 | 254.06 | 0.7397 | 1165.0 | 999999 | |
| 0.45 | 13.89 | 0.32 | 9.93 | -5.67 | 220.66 | 44.97 | 258.14 | 0.7209 | -292.0 | 40.9 | |
| 0.00 | 6.81 | 0.00 | 4.83 | -6.17 | 220.28 | 44.59 | 257.34 | 0.7176 | -363.0 | -294.5 | |
| 2.54 | 4.27 | 1.82 | 3.06 | -9.68 | 220.11 | 44.41 | 252.55 | 0.7254 | 751.4 | 651.2 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -6.48 | 219.58 | 43.89 | 256.72 | 0.7100 | 581.0 | 517.1 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -8.88 | 219.81 | 44.11 | 253.51 | 0.7195 | 378.0 | 378.6 | |
| 0.00 | 1.18 | 0.00 | 0.83 | -6.72 | 219.48 | 43.79 | 256.36 | 0.7095 | 246.0 | 219.7 | |
| 1.82 | 114.29 | 1.27 | 78.99 | -5.88 | 219.35 | 43.66 | 257.48 | 0.7057 | -231.0 | 287.5 | |
| 0.00 | 1.45 | 0.00 | 1.04 | -10.36 | 219.96 | 44.27 | 251.59 | 0.7260 | -60.0 | -125.3 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -9.98 | 219.85 | 44.16 | 252.06 | 0.7235 | 559.0 | 423.6 | |
| 0.00 | 1.72 | 0.00 | 1.21 | -6.87 | 219.33 | 43.63 | 256.11 | 0.7080 | 512.0 | 403.4 | |
| 3.09 | 108.93 | 2.17 | 76.07 | -8.18 | 219.45 | 43.75 | 254.35 | 0.7132 | 849.5 | 331.5 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -11.07 | 219.66 | 43.97 | 250.53 | 0.7249 | -471.0 | -390.1 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -10.74 | 219.51 | 43.82 | 250.91 | 0.7222 | -435.0 | -428.7 | |
| 0.00 | 0.73 | 0.00 | 0.51 | -9.85 | 219.23 | 43.54 | 252.00 | 0.7159 | 466.0 | 338.4 | |
| 2.63 | -18.00 | 1.83 | -18.00 | -7.15 | 218.81 | 43.11 | 255.55 | 0.7026 | 1006.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.09 | -10.01 | 219.21 | 43.52 | 251.78 | 0.7162 | -83.0 | -136.8 | |
| 0.00 | 1.09 | 0.00 | 0.78 | -10.95 | 219.34 | 43.64 | 250.56 | 0.7209 | -562.0 | -423.7 | |
| 0.91 | -18.00 | 0.62 | -18.00 | -5.93 | 218.55 | 42.86 | 257.18 | 0.6962 | -691.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -10.22 | 219.12 | 43.43 | 251.46 | 0.7159 | -401.0 | -365.9 | |
| 0.00 | 2.54 | 0.00 | 1.74 | -5.21 | 218.40 | 42.71 | 258.15 | 0.6925 | -598.0 | -478.7 | |
| 0.00 | 2.54 | 0.00 | 1.80 | -10.63 | 219.10 | 43.41 | 250.90 | 0.7171 | -638.0 | -336.7 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -11.87 | 219.34 | 43.65 | 249.34 | 0.7241 | -661.0 | -546.0 | |
| 0.00 | 1.27 | 0.00 | 0.87 | -5.49 | 218.34 | 42.65 | 257.74 | 0.6925 | -721.0 | -607.1 | |
| 0.00 | 1.63 | 0.00 | 1.18 | -12.75 | 219.31 | 43.61 | 248.17 | 0.7271 | -506.0 | -465.7 | |
| 1.09 | -18.00 | 0.75 | -18.00 | -6.41 | 218.14 | 42.45 | 256.38 | 0.6924 | -549.6 | 999999 | |
| 0.00 | 3.99 | 0.00 | 2.72 | -5.20 | 218.03 | 42.33 | 258.07 | 0.6878 | -684.0 | -515.1 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -7.81 | 218.30 | 42.61 | 254.46 | 0.6984 | -236.0 | -200.4 | |
| 4.99 | -22.00 | 3.46 | -22.00 | -8.83 | 218.27 | 42.57 | 253.03 | 0.7013 | -627.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.69 | -8.61 | 218.19 | 42.50 | 253.31 | 0.6997 | -717.0 | -684.5 | |
| 1.00 | -18.00 | 0.68 | -18.00 | -6.30 | 217.88 | 42.19 | 256.45 | 0.6889 | -776.9 | 999999 | |
| 0.64 | -18.00 | 0.43 | -18.00 | -6.49 | 217.90 | 42.20 | 256.19 | 0.6896 | -577.7 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.56 | -8.42 | 218.00 | 42.31 | 253.51 | 0.6967 | -661.0 | -617.3 | |
| 0.00 | 1.18 | 0.00 | 0.81 | -8.60 | 218.03 | 42.33 | 253.26 | 0.6976 | -732.0 | -604.5 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -12.30 | 218.52 | 42.83 | 248.43 | 0.7166 | -588.0 | -482.3 | |
| 0.00 | 1.91 | 0.00 | 1.31 | -9.18 | 217.77 | 42.08 | 252.36 | 0.6965 | -581.0 | -562.1 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -4.51 | 217.19 | 41.50 | 258.82 | 0.6756 | -612.0 | -503.7 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -4.66 | 217.16 | 41.47 | 258.59 | 0.6756 | -581.0 | -469.2 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -11.86 | 217.80 | 42.11 | 248.71 | 0.7066 | -566.0 | -476.6 | |
| 0.00 | 0.73 | 0.00 | 0.49 | -8.66 | 217.16 | 41.47 | 252.86 | 0.6874 | -534.0 | -483.6 | |
| 0.00 | 1.36 | 0.00 | 0.92 | -8.46 | 217.01 | 41.32 | 253.08 | 0.6849 | -614.0 | -529.9 | |
| 0.00 | 1.45 | 0.00 | 0.97 | -5.98 | 216.37 | 40.68 | 256.42 | 0.6692 | -468.0 | -368.4 | |
| 0.00 | 1.91 | 0.00 | 1.26 | -8.08 | 215.58 | 39.89 | 253.07 | 0.6660 | -219.0 | -291.2 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -11.08 | 214.75 | 39.06 | 248.39 | 0.6674 | -596.0 | -495.8 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -10.41 | 213.77 | 38.08 | 248.89 | 0.6525 | -663.0 | -652.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
