SDO HMI 2014-07-11 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.04 | 223.53 | 22.09 | 137.73 | -20.09 | 148.10 | -27.59 | 132.79 | 0.5941 | 281.8 | 80.7 | |
|
previous
or next observation for the same group /

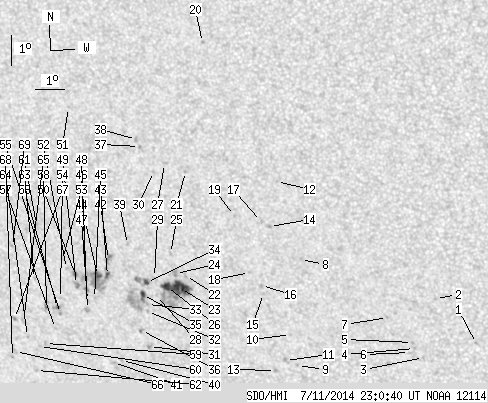

back to the solar disc SDO HMI 2014-07-11 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.78 | -21.68 | 159.55 | -16.14 | 149.06 | 0.5044 | 650.0 | 523.5 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -20.20 | 158.33 | -17.36 | 145.47 | 0.4960 | 636.0 | 552.1 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -22.20 | 157.67 | -18.03 | 146.83 | 0.5258 | 779.0 | 601.8 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -21.90 | 157.40 | -18.30 | 146.11 | 0.5244 | 849.0 | 692.2 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -21.70 | 157.35 | -18.34 | 145.81 | 0.5223 | 786.0 | 676.7 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -22.04 | 157.20 | -18.49 | 146.00 | 0.5277 | 555.0 | 453.1 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -20.87 | 156.60 | -19.09 | 143.77 | 0.5191 | 641.0 | 503.3 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -19.01 | 153.84 | -21.85 | 137.66 | 0.5245 | 695.0 | 470.4 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -22.58 | 153.18 | -22.52 | 141.38 | 0.5686 | 735.0 | 595.1 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -21.53 | 153.11 | -22.59 | 140.02 | 0.5582 | 620.0 | 533.7 | |
| 0.00 | 3.00 | 0.00 | 1.80 | -22.42 | 152.78 | -22.92 | 140.71 | 0.5706 | 703.0 | 559.3 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -16.46 | 153.35 | -22.34 | 133.39 | 0.5037 | 617.0 | 484.0 | |
| 0.00 | 2.00 | 0.00 | 1.21 | -22.77 | 152.35 | -23.34 | 140.63 | 0.5781 | 654.0 | 458.4 | |
| 0.00 | 2.27 | 0.00 | 1.32 | -17.94 | 152.91 | -22.78 | 135.02 | 0.5231 | 715.0 | 576.4 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -20.18 | 152.37 | -23.32 | 137.41 | 0.5512 | 781.0 | 617.3 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -19.91 | 152.34 | -23.35 | 137.03 | 0.5488 | 812.0 | 626.0 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -17.79 | 152.66 | -23.03 | 134.48 | 0.5243 | 743.0 | 625.6 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -19.49 | 151.99 | -23.71 | 136.04 | 0.5482 | 640.0 | 547.9 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -17.62 | 151.74 | -23.95 | 133.15 | 0.5325 | 634.0 | 522.5 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -12.06 | 151.30 | -24.39 | 123.83 | 0.4881 | 837.0 | 653.2 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -16.23 | 150.22 | -25.48 | 129.40 | 0.5366 | 677.0 | 593.1 | |
| 0.00 | 1.72 | 0.00 | 1.04 | -19.66 | 149.67 | -26.02 | 133.69 | 0.5735 | 663.0 | 585.4 | |
| 18.06 | 53.01 | 10.97 | 32.30 | -20.10 | 149.41 | -26.28 | 134.00 | 0.5802 | 949.2 | 259.0 | |
| 0.00 | 3.54 | 0.00 | 2.14 | -19.60 | 149.32 | -26.37 | 133.25 | 0.5766 | 850.0 | 756.2 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -18.94 | 149.26 | -26.43 | 132.28 | 0.5713 | 679.0 | 520.5 | |
| 5.72 | -23.00 | 3.49 | -23.00 | -20.05 | 148.91 | -26.78 | 133.42 | 0.5849 | 770.3 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.28 | -15.99 | 149.51 | -26.18 | 128.30 | 0.5426 | 696.0 | 528.7 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -20.36 | 148.49 | -27.20 | 133.40 | 0.5921 | 249.0 | 168.1 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -19.76 | 148.53 | -27.16 | 132.65 | 0.5863 | 417.0 | 443.1 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -16.26 | 149.08 | -26.61 | 128.27 | 0.5499 | 545.0 | 438.5 | |
| 0.00 | 2.81 | 0.00 | 1.76 | -22.10 | 147.88 | -27.82 | 135.01 | 0.6138 | 723.0 | 576.2 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -20.91 | 148.05 | -27.64 | 133.68 | 0.6014 | 453.0 | 362.7 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -20.67 | 148.10 | -27.59 | 133.42 | 0.5989 | 699.0 | 545.9 | |
| 1.82 | 8.99 | 1.11 | 5.52 | -19.94 | 148.21 | -27.49 | 132.56 | 0.5912 | 849.0 | 588.3 | |
| 2.00 | 26.14 | 1.23 | 16.18 | -20.34 | 147.98 | -27.71 | 132.87 | 0.5972 | 703.6 | 29.6 | |
| 0.00 | 1.91 | 0.00 | 1.19 | -21.56 | 147.69 | -28.00 | 134.16 | 0.6108 | 595.0 | 367.4 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -15.46 | 148.70 | -26.99 | 126.69 | 0.5477 | 814.0 | 626.7 | |
| 0.00 | 2.09 | 0.00 | 1.23 | -15.24 | 148.62 | -27.07 | 126.28 | 0.5467 | 617.0 | 592.6 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -18.69 | 147.74 | -27.95 | 130.42 | 0.5854 | 719.0 | 528.7 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -22.61 | 146.71 | -28.98 | 134.52 | 0.6296 | -784.0 | -598.7 | |
| 0.00 | 1.63 | 0.00 | 1.04 | -22.69 | 146.39 | -29.30 | 134.32 | 0.6334 | -760.0 | -578.7 | |
| 0.00 | 4.63 | 0.00 | 2.86 | -19.21 | 146.95 | -28.74 | 130.38 | 0.5983 | 687.0 | 614.6 | |
| 1.63 | 39.94 | 1.01 | 24.93 | -19.75 | 146.81 | -28.89 | 130.96 | 0.6043 | 699.0 | -127.1 | |
| 3.54 | -43.00 | 2.21 | -43.00 | -19.76 | 146.43 | -29.26 | 130.63 | 0.6083 | 529.5 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.40 | -20.54 | 146.16 | -29.53 | 131.40 | 0.6176 | -650.0 | -593.4 | |
| 0.00 | 3.09 | 0.00 | 1.95 | -20.92 | 145.81 | -29.88 | 131.57 | 0.6243 | -861.0 | -662.2 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -20.62 | 145.88 | -29.81 | 131.24 | 0.6211 | -721.0 | -563.2 | |
| 0.54 | 3.00 | 0.34 | 1.88 | -20.25 | 145.92 | -29.77 | 130.80 | 0.6176 | -754.2 | -588.3 | |
| 0.00 | 3.63 | 0.00 | 2.29 | -20.09 | 145.58 | -30.11 | 130.29 | 0.6199 | -868.0 | -732.8 | |
| 1.27 | -43.00 | 0.80 | -43.00 | -19.76 | 145.61 | -30.08 | 129.88 | 0.6169 | -667.1 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -14.29 | 146.32 | -29.37 | 122.71 | 0.5669 | 661.0 | 592.6 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -19.57 | 145.31 | -30.38 | 129.37 | 0.6186 | -847.0 | -756.4 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -19.28 | 145.23 | -30.47 | 128.90 | 0.6172 | -713.0 | -623.0 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -20.59 | 144.87 | -30.83 | 130.30 | 0.6313 | -825.0 | -702.2 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -21.09 | 144.75 | -30.94 | 130.85 | 0.6365 | -678.0 | -548.4 | |
| 0.82 | 3.27 | 0.52 | 2.09 | -20.89 | 144.68 | -31.01 | 130.54 | 0.6356 | -855.2 | -673.9 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -21.61 | 144.43 | -31.26 | 131.24 | 0.6438 | -637.0 | -546.5 | |
| 0.64 | 1.45 | 0.41 | 0.93 | -20.91 | 144.26 | -31.44 | 130.20 | 0.6401 | -795.3 | -670.4 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -22.14 | 143.92 | -31.78 | 131.46 | 0.6531 | -730.0 | -611.6 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -22.25 | 143.66 | -32.04 | 131.37 | 0.6566 | -471.0 | -357.4 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -18.15 | 144.48 | -31.21 | 126.73 | 0.6167 | -751.0 | -651.2 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -23.08 | 143.32 | -32.37 | 132.11 | 0.6663 | -665.0 | -502.3 | |
| 0.00 | 1.63 | 0.00 | 1.05 | -19.95 | 144.02 | -31.67 | 128.76 | 0.6352 | -582.0 | -467.8 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -21.92 | 143.27 | -32.42 | 130.66 | 0.6579 | -656.0 | -595.4 | |
| 0.00 | 2.45 | 0.00 | 1.60 | -21.42 | 143.24 | -32.45 | 130.00 | 0.6543 | -553.0 | -537.0 | |
| 0.00 | 2.18 | 0.00 | 1.45 | -22.45 | 142.66 | -33.03 | 130.82 | 0.6680 | -620.0 | -531.9 | |
| 0.00 | 2.00 | 0.00 | 1.31 | -21.33 | 142.92 | -32.78 | 129.63 | 0.6570 | -599.0 | -434.7 | |
| 0.00 | 1.36 | 0.00 | 0.91 | -22.67 | 142.48 | -33.21 | 130.94 | 0.6713 | -524.0 | -414.9 | |
| 0.00 | 0.64 | 0.00 | 0.41 | -18.91 | 143.41 | -32.28 | 126.89 | 0.6340 | -592.0 | -516.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
