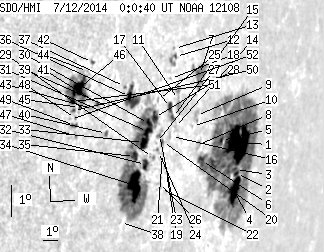

SDO HMI 2014-07-12 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 177.94 | 881.45 | 219.67 | 1108.00 | -7.17 | 241.24 | 66.10 | 260.44 | 0.9194 | 41.3 | 100.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.30 | 478.08 | 72.42 | 677.28 | -7.20 | 244.23 | 69.09 | 260.82 | 0.9403 | 559.3 | 261.9 | |
| 2.45 | -1.00 | 3.58 | -1.00 | -8.17 | 244.40 | 69.26 | 259.81 | 0.9420 | 282.6 | 999999 | |
| 4.54 | -1.00 | 6.58 | -1.00 | -8.04 | 244.26 | 69.12 | 259.94 | 0.9411 | 494.4 | 999999 | |
| 20.06 | -1.00 | 29.38 | -1.00 | -8.70 | 244.43 | 69.29 | 259.26 | 0.9426 | 384.8 | 999999 | |
| 1.91 | -1.00 | 2.56 | -1.00 | -7.04 | 242.74 | 67.60 | 260.79 | 0.9311 | 846.1 | 999999 | |
| 5.72 | -1.00 | 7.27 | -1.00 | -7.56 | 241.32 | 66.18 | 260.03 | 0.9224 | 415.1 | 999999 | |
| 0.00 | 22.88 | 0.00 | 27.79 | -4.85 | 240.51 | 65.37 | 262.86 | 0.9145 | 539.0 | 320.9 | |
| 0.00 | 4.45 | 0.00 | 5.55 | -7.04 | 240.94 | 65.80 | 260.54 | 0.9194 | 603.0 | 508.4 | |
| 0.00 | 6.08 | 0.00 | 7.44 | -6.12 | 240.55 | 65.41 | 261.49 | 0.9159 | 554.0 | 460.8 | |
| 0.00 | 1.00 | 0.00 | 1.21 | -6.45 | 240.33 | 65.19 | 261.10 | 0.9147 | 388.0 | 350.7 | |
| 0.00 | 9.53 | 0.00 | 11.01 | -5.54 | 239.12 | 63.98 | 261.93 | 0.9052 | 333.0 | 270.8 | |
| 0.82 | 6.81 | 0.92 | 7.66 | -4.18 | 238.68 | 63.54 | 263.37 | 0.9007 | -317.4 | -426.8 | |
| 0.00 | 0.64 | 0.00 | 0.72 | -3.93 | 238.57 | 63.43 | 263.63 | 0.8997 | -289.0 | -231.0 | |
| 0.00 | 0.64 | 0.00 | 0.74 | -6.39 | 239.02 | 63.88 | 260.98 | 0.9053 | 519.0 | 482.0 | |
| 1.54 | 10.53 | 1.77 | 11.99 | -6.07 | 238.81 | 63.67 | 261.30 | 0.9034 | -93.4 | 25.4 | |
| 0.00 | 1.00 | 0.00 | 1.15 | -6.66 | 238.87 | 63.73 | 260.66 | 0.9044 | 23.0 | 27.3 | |
| 3.63 | -15.00 | 4.12 | -15.00 | -5.75 | 238.60 | 63.46 | 261.63 | 0.9015 | -250.4 | 999999 | |
| 0.00 | 0.91 | 0.00 | 1.02 | -4.84 | 238.44 | 63.30 | 262.60 | 0.8994 | -281.0 | -230.6 | |
| 0.00 | 0.91 | 0.00 | 1.05 | -7.77 | 238.81 | 63.67 | 259.43 | 0.9051 | -193.0 | -150.0 | |
| 0.91 | 2.45 | 1.02 | 2.77 | -6.78 | 238.28 | 63.14 | 260.44 | 0.9001 | 4.4 | 67.1 | |
| 0.00 | 1.00 | 0.00 | 1.13 | -7.16 | 238.37 | 63.23 | 260.04 | 0.9012 | 229.0 | 222.5 | |
| 0.00 | 1.00 | 0.00 | 1.15 | -8.25 | 238.53 | 63.39 | 258.86 | 0.9036 | 307.0 | 234.1 | |
| 0.00 | 3.81 | 0.00 | 4.26 | -6.55 | 238.02 | 62.88 | 260.66 | 0.8979 | -73.0 | -7.8 | |
| 0.00 | 2.18 | 0.00 | 2.44 | -7.08 | 238.08 | 62.94 | 260.08 | 0.8989 | -44.0 | -22.2 | |
| 0.00 | 1.63 | 0.00 | 1.80 | -5.45 | 237.73 | 62.59 | 261.84 | 0.8946 | -247.0 | -234.4 | |
| 0.00 | 1.72 | 0.00 | 1.96 | -8.09 | 238.34 | 63.20 | 259.01 | 0.9020 | -9.0 | 77.9 | |
| 0.00 | 0.27 | 0.00 | 0.30 | -6.78 | 237.87 | 62.73 | 260.38 | 0.8971 | -255.0 | -178.0 | |
| 5.90 | 220.61 | 6.48 | 237.20 | -5.99 | 237.56 | 62.42 | 261.21 | 0.8939 | -375.9 | -389.6 | |
| 0.00 | 3.00 | 0.00 | 3.32 | -7.24 | 237.71 | 62.57 | 259.85 | 0.8963 | -140.0 | -124.5 | |
| 4.45 | -28.00 | 4.83 | -28.00 | -6.15 | 237.20 | 62.06 | 260.97 | 0.8912 | -673.4 | 999999 | |
| 7.26 | -28.00 | 7.88 | -28.00 | -6.40 | 237.18 | 62.04 | 260.70 | 0.8914 | -648.4 | 999999 | |
| 5.08 | -28.00 | 5.56 | -28.00 | -7.43 | 237.29 | 62.15 | 259.57 | 0.8933 | -340.6 | 999999 | |
| 8.26 | -28.00 | 8.93 | -28.00 | -6.73 | 236.99 | 61.85 | 260.30 | 0.8902 | -682.7 | 999999 | |
| 25.69 | -28.00 | 27.67 | -28.00 | -8.04 | 236.72 | 61.58 | 258.79 | 0.8896 | -697.3 | 999999 | |
| 5.17 | -28.00 | 5.50 | -28.00 | -7.13 | 236.50 | 61.36 | 259.77 | 0.8868 | -812.6 | 999999 | |
| 3.81 | 24.06 | 3.93 | 24.97 | -5.23 | 235.81 | 60.67 | 261.80 | 0.8790 | 652.2 | 348.7 | |
| 0.36 | 1.36 | 0.37 | 1.39 | -4.90 | 235.44 | 60.30 | 262.12 | 0.8756 | 410.0 | 378.8 | |
| 0.00 | 0.64 | 0.00 | 0.68 | -9.16 | 236.12 | 60.98 | 257.44 | 0.8864 | -392.0 | -391.1 | |
| 0.00 | 0.45 | 0.00 | 0.45 | -5.50 | 234.61 | 59.47 | 261.32 | 0.8693 | 495.0 | 458.2 | |
| 0.82 | 2.45 | 0.81 | 2.45 | -6.30 | 234.57 | 59.43 | 260.40 | 0.8699 | 555.1 | 469.7 | |
| 0.91 | 2.27 | 0.88 | 2.21 | -5.33 | 233.86 | 58.72 | 261.39 | 0.8627 | 411.4 | 421.1 | |
| 0.73 | 1.82 | 0.69 | 1.73 | -4.04 | 233.40 | 58.26 | 262.81 | 0.8570 | -434.9 | -318.2 | |
| 0.00 | 2.27 | 0.00 | 2.19 | -5.46 | 233.53 | 58.39 | 261.18 | 0.8599 | 458.0 | 462.9 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -4.30 | 233.13 | 57.99 | 262.47 | 0.8550 | -397.0 | -412.3 | |
| 0.64 | 56.29 | 0.60 | 52.80 | -5.39 | 232.82 | 57.68 | 261.15 | 0.8535 | -0.9 | -325.3 | |
| 12.62 | -45.00 | 11.84 | -45.00 | -4.79 | 232.68 | 57.54 | 261.82 | 0.8515 | -728.9 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.80 | -6.28 | 232.79 | 57.65 | 260.11 | 0.8544 | -427.0 | -366.5 | |
| 0.00 | 0.91 | 0.00 | 0.85 | -5.72 | 232.64 | 57.50 | 260.74 | 0.8523 | -455.0 | -403.0 | |
| 1.36 | 2.72 | 1.28 | 2.56 | -5.93 | 232.61 | 57.47 | 260.49 | 0.8524 | -492.3 | -384.7 | |
| 0.73 | 2.36 | 0.68 | 2.21 | -5.46 | 232.48 | 57.34 | 261.02 | 0.8506 | -621.8 | -510.8 | |
| 2.27 | -45.00 | 2.12 | -45.00 | -5.18 | 232.39 | 57.25 | 261.33 | 0.8493 | -761.0 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.51 | -5.73 | 232.35 | 57.21 | 260.68 | 0.8497 | -666.0 | -615.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
