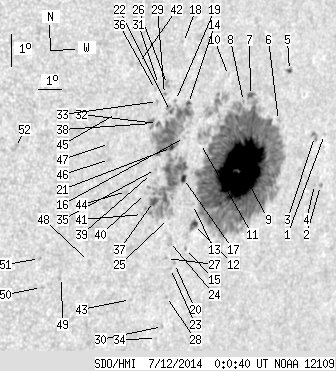

SDO HMI 2014-07-12 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 181.20 | 1102.33 | 134.30 | 807.12 | -7.95 | 221.23 | 46.09 | 255.37 | 0.7394 | 713.2 | 288.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.87 | -7.14 | 225.75 | 50.61 | 257.64 | 0.7873 | 298.0 | 283.2 | |
| 0.00 | 1.91 | 0.00 | 1.54 | -8.73 | 225.83 | 50.69 | 255.68 | 0.7915 | 527.0 | 435.3 | |
| 0.00 | 4.36 | 0.00 | 3.45 | -7.18 | 225.27 | 50.13 | 257.48 | 0.7823 | 584.0 | 471.8 | |
| 0.00 | 0.82 | 0.00 | 0.66 | -8.68 | 225.53 | 50.39 | 255.66 | 0.7882 | 285.0 | 328.1 | |
| 1.36 | 3.00 | 1.04 | 2.28 | -5.06 | 223.83 | 48.69 | 259.85 | 0.7623 | 570.1 | 475.8 | |
| 0.00 | 1.63 | 0.00 | 1.24 | -6.58 | 223.49 | 48.35 | 257.80 | 0.7617 | 212.0 | 189.6 | |
| 2.09 | 810.36 | 1.54 | 601.54 | -5.74 | 222.11 | 46.97 | 258.56 | 0.7444 | -482.6 | 327.7 | |
| 0.00 | 1.18 | 0.00 | 0.87 | -5.91 | 221.81 | 46.67 | 258.26 | 0.7413 | -59.0 | 20.9 | |
| 163.23 | -7.00 | 121.45 | -7.00 | -8.02 | 222.00 | 46.86 | 255.52 | 0.7485 | 1129.7 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -5.06 | 221.06 | 45.92 | 259.20 | 0.7308 | -245.0 | -249.6 | |
| 0.00 | 0.64 | 0.00 | 0.45 | -7.11 | 220.05 | 44.91 | 256.15 | 0.7239 | 483.0 | 416.4 | |
| 2.63 | 6.36 | 1.91 | 4.60 | -9.64 | 220.16 | 45.02 | 252.80 | 0.7323 | 765.9 | 622.3 | |
| 0.00 | 1.54 | 0.00 | 1.11 | -9.01 | 219.97 | 44.83 | 253.58 | 0.7282 | 719.0 | 655.9 | |
| 1.18 | 215.25 | 0.83 | 151.03 | -5.84 | 219.39 | 44.25 | 257.70 | 0.7128 | -267.8 | 323.0 | |
| 0.00 | 1.27 | 0.00 | 0.92 | -10.38 | 219.90 | 44.76 | 251.73 | 0.7316 | -314.0 | -259.6 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -6.89 | 219.33 | 44.19 | 256.24 | 0.7148 | 435.0 | 368.0 | |
| 3.18 | -14.00 | 2.26 | -14.00 | -8.17 | 219.46 | 44.32 | 254.53 | 0.7198 | 781.1 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.51 | -3.94 | 219.02 | 43.88 | 260.24 | 0.7040 | -436.0 | -365.0 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -5.72 | 218.83 | 43.69 | 257.70 | 0.7057 | -394.0 | -275.0 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -10.83 | 219.50 | 44.36 | 250.99 | 0.7286 | -492.0 | -441.8 | |
| 2.18 | -14.00 | 1.53 | -14.00 | -7.17 | 218.81 | 43.67 | 255.69 | 0.7094 | 955.9 | 999999 | |
| 0.54 | 5.90 | 0.38 | 4.10 | -6.05 | 218.65 | 43.51 | 257.19 | 0.7044 | -396.0 | -453.1 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -10.98 | 219.35 | 44.21 | 250.74 | 0.7275 | -570.0 | -491.5 | |
| 0.00 | 4.72 | 0.00 | 3.37 | -10.12 | 219.15 | 44.01 | 251.80 | 0.7223 | -402.0 | -228.8 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -9.39 | 218.99 | 43.85 | 252.72 | 0.7181 | -197.0 | -206.0 | |
| 0.00 | 3.81 | 0.00 | 2.64 | -5.21 | 218.44 | 43.30 | 258.31 | 0.6997 | -538.0 | -459.7 | |
| 0.00 | 1.27 | 0.00 | 0.91 | -10.65 | 219.12 | 43.98 | 251.08 | 0.7237 | -549.0 | -414.2 | |
| 0.00 | 1.18 | 0.00 | 0.85 | -11.86 | 219.35 | 44.21 | 249.57 | 0.7305 | -604.0 | -502.2 | |
| 0.00 | 1.36 | 0.00 | 0.94 | -5.51 | 218.34 | 43.20 | 257.86 | 0.6993 | -645.0 | -594.8 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -12.81 | 219.38 | 44.24 | 248.34 | 0.7342 | -464.0 | -405.1 | |
| 0.00 | 0.82 | 0.00 | 0.56 | -5.19 | 218.06 | 42.92 | 258.23 | 0.6950 | -587.0 | -517.1 | |
| 0.91 | -14.00 | 0.63 | -14.00 | -6.40 | 218.13 | 42.99 | 256.55 | 0.6990 | -563.8 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.19 | -5.71 | 218.06 | 42.92 | 257.49 | 0.6964 | -616.0 | -517.4 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -13.19 | 219.20 | 44.06 | 247.79 | 0.7337 | -351.0 | -269.1 | |
| 0.00 | 1.00 | 0.00 | 0.69 | -7.83 | 218.21 | 43.07 | 254.59 | 0.7041 | -42.0 | 67.5 | |
| 0.00 | 1.00 | 0.00 | 0.69 | -5.34 | 217.95 | 42.81 | 257.99 | 0.6940 | -624.0 | -535.5 | |
| 3.90 | -14.00 | 2.73 | -14.00 | -8.83 | 218.26 | 43.12 | 253.23 | 0.7078 | -663.5 | 999999 | |
| 0.00 | 5.45 | 0.00 | 3.75 | -6.38 | 217.88 | 42.74 | 256.49 | 0.6959 | -660.0 | -641.8 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -7.94 | 218.06 | 42.92 | 254.37 | 0.7026 | -136.0 | -110.2 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -8.56 | 217.89 | 42.75 | 253.47 | 0.7025 | -668.0 | -569.9 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -9.21 | 217.86 | 42.72 | 252.55 | 0.7042 | -519.0 | -483.4 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -4.50 | 217.18 | 42.04 | 258.98 | 0.6824 | -609.0 | -511.3 | |
| 0.00 | 0.36 | 0.00 | 0.26 | -11.88 | 217.81 | 42.67 | 248.92 | 0.7131 | -426.0 | -508.0 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -8.46 | 217.08 | 41.94 | 253.31 | 0.6924 | -676.0 | -519.1 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -6.00 | 216.39 | 41.25 | 256.56 | 0.6765 | -518.0 | -469.7 | |
| 0.00 | 1.63 | 0.00 | 1.10 | -7.42 | 216.25 | 41.11 | 254.47 | 0.6790 | -509.0 | -388.6 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -6.92 | 216.20 | 41.06 | 255.17 | 0.6768 | -499.0 | -514.2 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -10.59 | 215.82 | 40.68 | 249.83 | 0.6850 | -179.0 | -224.7 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -11.04 | 214.80 | 39.66 | 248.72 | 0.6745 | -433.0 | -414.4 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -11.32 | 214.04 | 38.90 | 247.96 | 0.6665 | -704.0 | -584.2 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -10.40 | 213.82 | 38.68 | 249.18 | 0.6599 | -584.0 | -529.4 | |
| 0.00 | 3.99 | 0.00 | 2.54 | -6.87 | 212.46 | 37.32 | 253.82 | 0.6289 | -655.0 | -398.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
