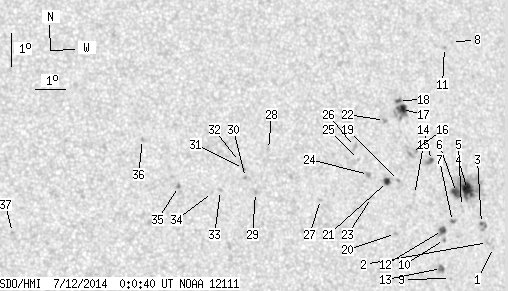

SDO HMI 2014-07-12 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.33 | 155.41 | 20.26 | 88.68 | 6.21 | 204.68 | 29.54 | 275.61 | 0.4945 | -176.2 | -168.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.58 | 4.10 | 207.21 | 32.07 | 271.32 | 0.5318 | -667.0 | -517.6 | |
| 0.00 | 2.09 | 0.00 | 1.22 | 4.26 | 207.00 | 31.86 | 271.62 | 0.5286 | -797.0 | -680.1 | |
| 0.64 | 5.36 | 0.37 | 3.12 | 4.85 | 206.81 | 31.67 | 272.74 | 0.5258 | -853.7 | -657.9 | |
| 10.44 | 65.00 | 6.04 | 37.65 | 5.90 | 206.37 | 31.23 | 274.78 | 0.5196 | -971.2 | -378.7 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 5.39 | 206.13 | 30.99 | 273.80 | 0.5157 | -733.0 | -586.3 | |
| 6.45 | -4.00 | 3.72 | -4.00 | 5.83 | 205.97 | 30.83 | 274.65 | 0.5136 | -1054.1 | 999999 | |
| 0.73 | 2.91 | 0.42 | 1.67 | 4.95 | 205.78 | 30.64 | 272.94 | 0.5104 | -869.5 | -710.5 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 10.41 | 206.19 | 31.05 | 283.45 | 0.5237 | -606.0 | -469.0 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 3.22 | 205.63 | 30.49 | 269.52 | 0.5087 | -718.0 | -554.9 | |
| 0.00 | 1.63 | 0.00 | 0.94 | 4.41 | 205.47 | 30.33 | 271.88 | 0.5057 | 227.0 | 190.3 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 10.27 | 205.92 | 30.78 | 283.26 | 0.5194 | -806.0 | -684.7 | |
| 3.09 | 5.72 | 1.77 | 3.28 | 4.69 | 205.41 | 30.27 | 272.43 | 0.5049 | -891.2 | -704.0 | |
| 1.91 | 3.99 | 1.09 | 2.29 | 3.53 | 205.33 | 30.19 | 270.12 | 0.5038 | 804.9 | 587.6 | |
| 1.27 | 4.36 | 0.73 | 2.49 | 6.83 | 205.15 | 30.01 | 276.72 | 0.5020 | -884.0 | -775.6 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 5.82 | 204.48 | 29.34 | 274.74 | 0.4912 | -742.0 | -511.3 | |
| 0.00 | 5.54 | 0.00 | 3.15 | 7.10 | 204.46 | 29.32 | 277.36 | 0.4920 | -640.0 | -723.2 | |
| 5.99 | 17.79 | 3.40 | 10.10 | 8.43 | 204.21 | 29.07 | 280.11 | 0.4902 | 948.0 | 658.9 | |
| 1.54 | -17.00 | 0.88 | -17.00 | 8.71 | 204.13 | 28.99 | 280.69 | 0.4895 | 860.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 6.27 | 203.95 | 28.81 | 275.71 | 0.4833 | -737.0 | -577.2 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 4.66 | 203.76 | 28.62 | 272.37 | 0.4797 | -716.0 | -529.2 | |
| 3.27 | 4.81 | 1.84 | 2.71 | 6.25 | 203.56 | 28.42 | 275.72 | 0.4774 | -899.9 | -615.9 | |
| 0.00 | 2.18 | 0.00 | 1.23 | 8.11 | 203.59 | 28.45 | 279.61 | 0.4802 | 894.0 | 762.7 | |
| 0.00 | 2.09 | 0.00 | 1.17 | 5.78 | 202.98 | 27.84 | 274.79 | 0.4681 | -669.0 | -538.3 | |
| 0.00 | 2.72 | 0.00 | 1.52 | 6.48 | 202.92 | 27.78 | 276.30 | 0.4677 | -900.0 | -742.4 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 6.95 | 202.60 | 27.46 | 277.36 | 0.4634 | 529.0 | 414.0 | |
| 0.00 | 3.54 | 0.00 | 1.98 | 7.35 | 202.49 | 27.35 | 278.25 | 0.4622 | 838.0 | 624.7 | |
| 0.00 | 1.72 | 0.00 | 0.95 | 5.78 | 201.22 | 26.08 | 274.95 | 0.4409 | 681.0 | 577.7 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 7.35 | 199.55 | 24.41 | 278.94 | 0.4166 | 673.0 | 539.3 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 6.06 | 199.04 | 23.90 | 275.90 | 0.4067 | 762.0 | 580.9 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 6.52 | 198.73 | 23.59 | 277.11 | 0.4023 | 798.0 | 679.0 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 6.80 | 198.67 | 23.53 | 277.81 | 0.4019 | 927.0 | 791.4 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 7.02 | 198.55 | 23.41 | 278.38 | 0.4003 | 720.0 | 597.3 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 6.15 | 197.87 | 22.73 | 276.34 | 0.3882 | 785.0 | 590.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 6.10 | 197.61 | 22.47 | 276.26 | 0.3839 | 790.0 | 608.7 | |
| 0.00 | 2.18 | 0.00 | 1.16 | 6.31 | 196.49 | 21.35 | 277.07 | 0.3662 | 971.0 | 803.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 7.77 | 195.38 | 20.24 | 281.52 | 0.3513 | 819.0 | 669.1 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 5.03 | 191.08 | 15.94 | 274.29 | 0.2755 | 849.0 | 663.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
