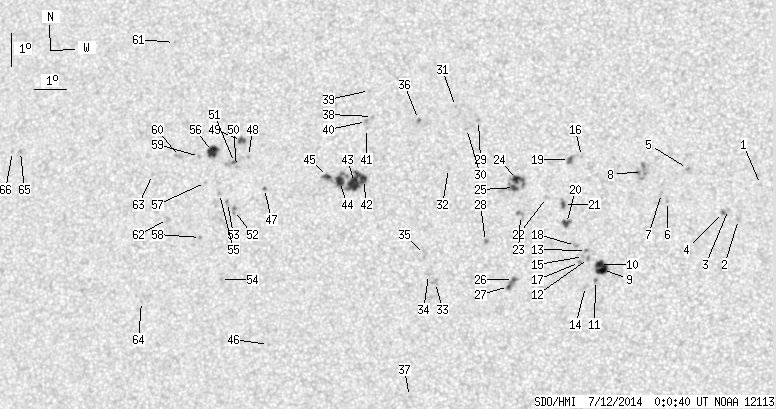

SDO HMI 2014-07-12 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.18 | 222.33 | 35.39 | 113.84 | 7.83 | 162.01 | -13.13 | 71.26 | 0.2374 | -254.5 | -179.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.68 | 8.32 | 172.60 | -2.54 | 30.25 | 0.0874 | -843.0 | -613.1 | |
| 0.00 | 2.00 | 0.00 | 0.99 | 7.25 | 171.93 | -3.21 | 44.49 | 0.0796 | -864.0 | -661.0 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 7.55 | 171.62 | -3.52 | 44.53 | 0.0872 | -932.0 | -740.5 | |
| 0.54 | 2.00 | 0.27 | 0.99 | 7.46 | 171.44 | -3.70 | 46.74 | 0.0883 | -1195.2 | -963.7 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 8.80 | 170.34 | -4.80 | 44.63 | 0.1181 | -940.0 | -840.8 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 7.79 | 169.74 | -5.40 | 54.66 | 0.1149 | -965.0 | -770.6 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 8.03 | 169.55 | -5.59 | 53.87 | 0.1200 | -993.0 | -774.5 | |
| 0.00 | 11.08 | 0.00 | 5.54 | 8.70 | 168.95 | -6.19 | 52.38 | 0.1351 | -678.0 | -879.6 | |
| 7.54 | 14.62 | 3.77 | 7.31 | 5.70 | 167.76 | -7.38 | 76.78 | 0.1319 | -1194.9 | -767.4 | |
| 4.09 | -9.00 | 2.04 | -9.00 | 5.85 | 167.66 | -7.48 | 75.83 | 0.1341 | -1163.3 | 999999 | |
| 0.36 | 1.63 | 0.18 | 0.82 | 5.36 | 167.54 | -7.60 | 79.58 | 0.1344 | -903.2 | -656.8 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 6.03 | 167.32 | -7.82 | 75.14 | 0.1406 | -1096.0 | -884.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 6.28 | 167.26 | -7.88 | 73.59 | 0.1428 | -965.0 | -736.0 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 5.18 | 167.24 | -7.90 | 81.28 | 0.1391 | -796.0 | -563.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 6.09 | 167.16 | -7.98 | 75.00 | 0.1435 | -901.0 | -785.6 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 9.14 | 167.05 | -8.09 | 57.03 | 0.1664 | 893.0 | 703.2 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 5.91 | 167.04 | -8.10 | 76.45 | 0.1448 | -918.0 | -826.7 | |
| 0.00 | 2.36 | 0.00 | 1.18 | 6.43 | 166.91 | -8.23 | 73.25 | 0.1492 | -1000.0 | -820.3 | |
| 1.54 | 5.36 | 0.78 | 2.69 | 9.05 | 166.68 | -8.46 | 58.65 | 0.1710 | 1055.5 | 810.3 | |
| 3.00 | 5.45 | 1.50 | 2.73 | 7.09 | 166.62 | -8.52 | 69.65 | 0.1575 | -1140.0 | -824.4 | |
| 1.54 | 3.90 | 0.77 | 1.96 | 7.67 | 166.52 | -8.62 | 66.49 | 0.1627 | -1011.6 | -710.7 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 7.88 | 165.99 | -9.15 | 66.55 | 0.1726 | -1059.0 | -623.0 | |
| 0.00 | 5.45 | 0.00 | 2.74 | 7.32 | 165.19 | -9.95 | 71.07 | 0.1821 | -542.0 | -774.2 | |
| 5.45 | 21.97 | 2.75 | 11.09 | 8.42 | 165.07 | -10.07 | 65.75 | 0.1906 | -1057.5 | -741.4 | |
| 2.91 | -24.00 | 1.47 | -24.00 | 8.18 | 164.98 | -10.16 | 67.12 | 0.1904 | -1129.9 | 999999 | |
| 1.00 | 6.99 | 0.50 | 3.52 | 5.37 | 165.01 | -10.13 | 81.95 | 0.1777 | 1140.9 | 844.7 | |
| 1.27 | -26.00 | 0.64 | -26.00 | 5.16 | 164.85 | -10.29 | 83.25 | 0.1799 | 1061.9 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 6.52 | 164.11 | -11.03 | 76.68 | 0.1962 | 1004.0 | 928.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 10.21 | 163.79 | -11.35 | 60.56 | 0.2234 | 907.0 | 807.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 9.96 | 163.42 | -11.72 | 62.29 | 0.2270 | 973.0 | 716.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 10.63 | 163.05 | -12.09 | 60.44 | 0.2378 | 895.0 | 702.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 8.73 | 162.89 | -12.25 | 68.21 | 0.2268 | -860.0 | -573.3 | |
| 0.00 | 3.99 | 0.00 | 2.03 | 5.25 | 162.57 | -12.57 | 83.88 | 0.2189 | -877.0 | -729.7 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 5.49 | 162.35 | -12.79 | 82.89 | 0.2231 | -945.0 | -732.0 | |
| 0.00 | 3.36 | 0.00 | 1.71 | 6.10 | 162.21 | -12.93 | 80.28 | 0.2268 | -813.0 | -733.5 | |
| 0.36 | 1.45 | 0.19 | 0.74 | 10.22 | 161.89 | -13.25 | 64.03 | 0.2521 | 1028.5 | 898.8 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 1.76 | 161.80 | -13.34 | 99.20 | 0.2346 | -762.0 | -523.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 10.29 | 160.42 | -14.72 | 65.96 | 0.2750 | -834.0 | -743.1 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 11.08 | 160.28 | -14.86 | 63.52 | 0.2824 | -729.0 | -559.1 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 10.13 | 160.23 | -14.91 | 66.74 | 0.2769 | -843.0 | -753.0 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 9.92 | 160.24 | -14.90 | 67.45 | 0.2754 | -793.0 | -633.9 | |
| 4.36 | 47.94 | 2.24 | 24.70 | 8.35 | 160.21 | -14.93 | 72.98 | 0.2678 | -1175.6 | -635.0 | |
| 15.25 | -42.00 | 7.85 | -42.00 | 8.26 | 159.93 | -15.21 | 73.59 | 0.2719 | -1085.8 | 999999 | |
| 5.90 | -42.00 | 3.04 | -42.00 | 8.28 | 159.45 | -15.69 | 73.95 | 0.2797 | -996.4 | 999999 | |
| 2.36 | -42.00 | 1.22 | -42.00 | 8.43 | 159.06 | -16.08 | 73.79 | 0.2866 | -658.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 3.27 | 157.32 | -17.82 | 91.80 | 0.3070 | 781.0 | 581.3 | |
| 0.00 | 1.72 | 0.00 | 0.90 | 8.02 | 157.04 | -18.10 | 76.59 | 0.3176 | 979.0 | 830.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 8.99 | 156.48 | -18.66 | 74.04 | 0.3301 | 953.0 | 674.4 | |
| 2.45 | 4.63 | 1.29 | 2.43 | 9.47 | 156.22 | -18.92 | 72.82 | 0.3362 | 1021.5 | 847.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 8.67 | 156.10 | -19.04 | 75.22 | 0.3349 | 984.0 | 726.0 | |
| 0.64 | 5.99 | 0.33 | 3.15 | 8.79 | 156.03 | -19.11 | 74.92 | 0.3365 | 1108.7 | 754.6 | |
| 0.00 | 3.36 | 0.00 | 1.76 | 7.33 | 156.10 | -19.04 | 79.21 | 0.3308 | 753.0 | 863.4 | |
| 0.00 | 2.36 | 0.00 | 1.24 | 7.57 | 155.86 | -19.28 | 78.61 | 0.3353 | 639.0 | 630.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 5.22 | 155.73 | -19.41 | 85.69 | 0.3334 | 900.0 | 700.8 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 7.84 | 155.59 | -19.55 | 77.96 | 0.3404 | 904.0 | 672.1 | |
| 8.62 | 11.35 | 4.56 | 6.00 | 9.12 | 155.29 | -19.85 | 74.49 | 0.3494 | 1097.0 | 721.7 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 8.16 | 155.12 | -20.02 | 77.27 | 0.3490 | 734.0 | 595.9 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 6.48 | 155.03 | -20.11 | 82.11 | 0.3464 | 1003.0 | 778.4 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 8.95 | 154.88 | -20.26 | 75.20 | 0.3554 | 799.0 | 685.6 | |
| 0.00 | 3.72 | 0.00 | 1.98 | 8.94 | 154.22 | -20.92 | 75.63 | 0.3657 | 950.0 | 652.8 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 12.43 | 153.80 | -21.34 | 66.97 | 0.3878 | 813.0 | 636.1 | |
| 0.00 | 3.54 | 0.00 | 1.88 | 7.01 | 153.92 | -21.22 | 81.00 | 0.3652 | 858.0 | 635.4 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 8.37 | 153.36 | -21.78 | 77.58 | 0.3775 | 759.0 | 581.3 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 4.49 | 153.16 | -21.98 | 87.95 | 0.3749 | 557.0 | 432.3 | |
| 0.00 | 1.72 | 0.00 | 0.96 | 8.95 | 148.86 | -26.28 | 77.97 | 0.4490 | 767.0 | 628.4 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 8.94 | 148.58 | -26.56 | 78.08 | 0.4532 | 571.0 | 520.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
